MAN. 126 rev.4 Use and maintenance manual S19
28 of 77
4.3.3
Load/unload through ramp
Use of the cabled remote control
1.
Make sure all stabilizers are lifted from the ground
2.
Make sure both main and secondary arm are perfectly laid and
withdrawn;
3.
enable the radiocontrol through the ON/OFF button;
4.
Turn on S24 by turning the key (AM Picture 9) activating both the
electrical system and the endothermic engine
5.
Use the joysticks J1 and J2 to move the S19;
6.
Setting the rabbit /tortoise selector on the radio control on “rabbit ”,
it is possible to increase the crawlers’ speed
To ensure a better stability during load/upload operations
and/or translation, it is possible to extract the crawlers widening
the ground overall dimensions. To extract the crawlers, push the
two buttons shown in Picture 22.

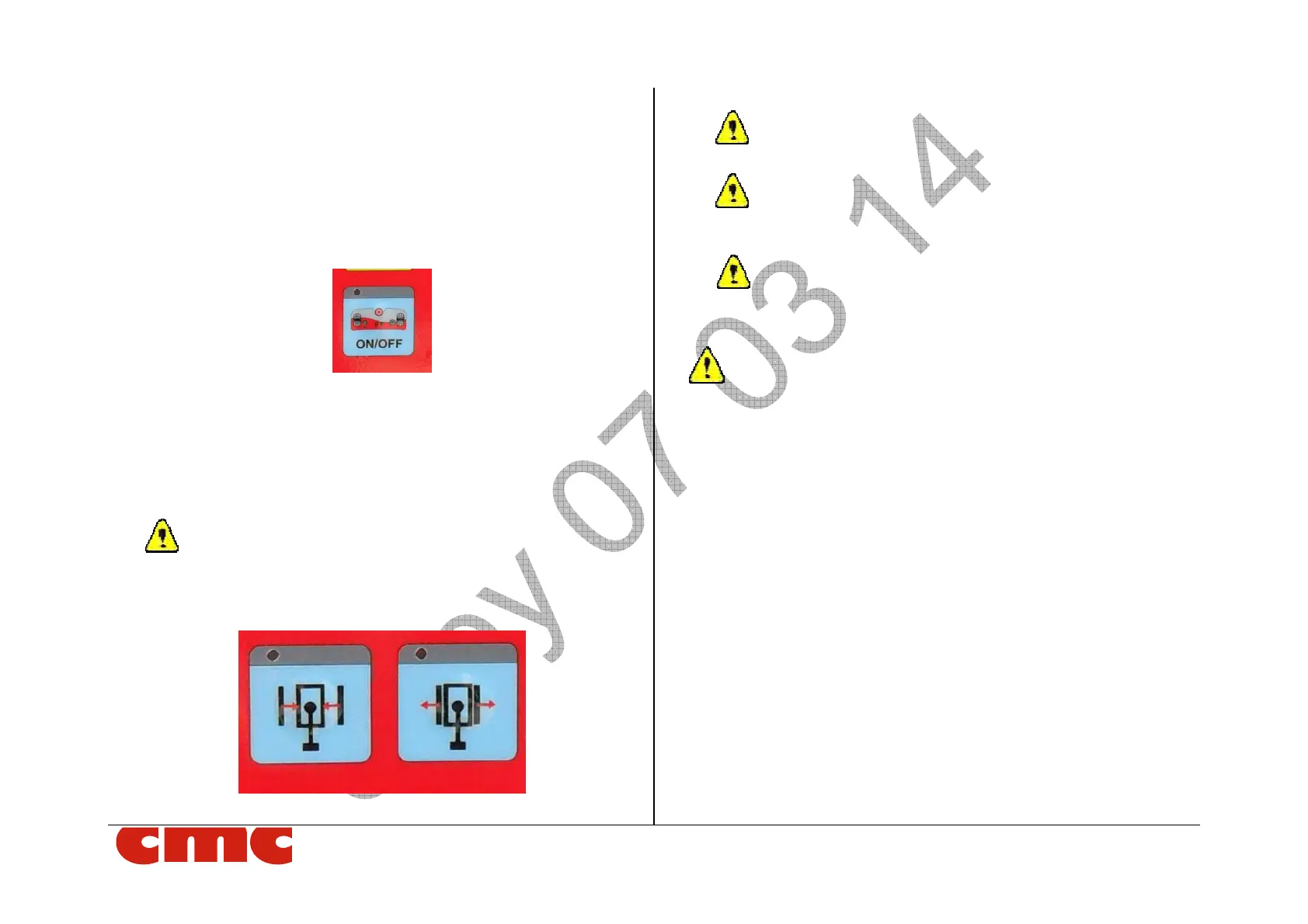

Picture 22 – OPTIONAL: crawlers widening
Check that no one is in proximity.
Place the couple of ramps (of adequate dimensions) and
bring in correspondence of the machine tracks;
Check that the ramps slope does not exceed 20° and that
those are perfectly clean from grease, mud, snow or ice.
WARNING: Should the machine get on a truck, go up the ramp
keeping the drive wheels on the back in order to increase the traction.
Use loading ramps with suitable dimensions and strength. Secure the
machine to the truck surface by the junctions on the base cart. Make
sure the machine is turned off during transport.
