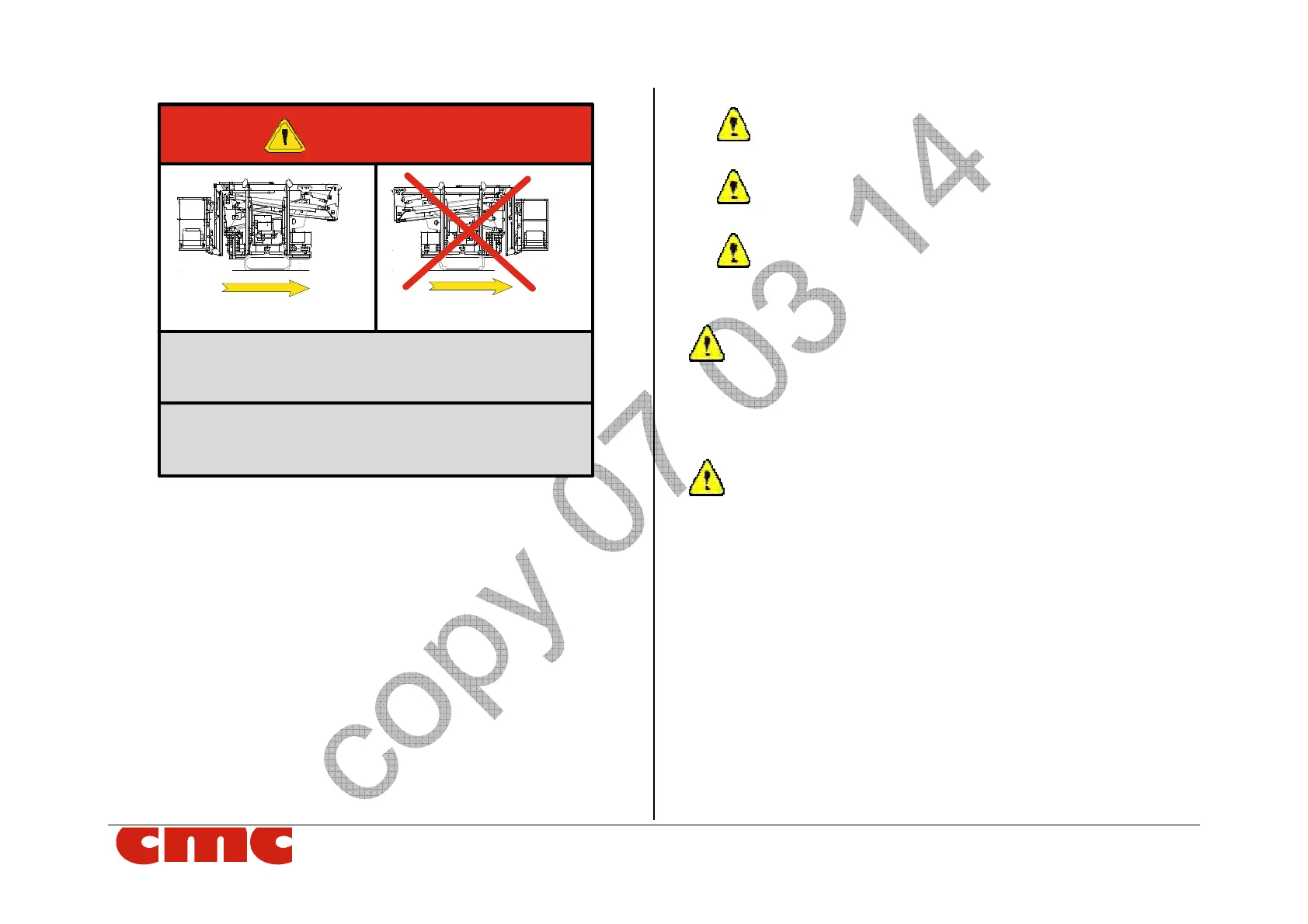

Wrong travel direction
Travel positive direction
1
2
TRAVEL WITH THE MEWP SET AS SHOWN IN FIG.1.
TRAVEL AND CLIMB KEEPING THE BASKET AT THE REAR
(FIG.1).
WARNING: DO NOT CLIMB NOR TRAVEL WITH THE MEWP
SET AS SHOWN IN FIG.2.: THE BASKET SHALL ALWAYS BE
PLACED AT THE REAR (FIG.1).
WARNING!!
Picture 23 – load direction on ramp
In case of use of the basket station
1. Make sure call stabilizers are lifted from the ground
2. Make sure the basket blocking pin is inserted, with the basket
connected.
3.
Make sure both main and secondary arm are perfectly laid and
withdrawn
4. Disable the radio control.
5. Turn on S19 turning the key, activating both the electrical system
and the endothermic engine
6. Use the joysticks J1 and J2 (Picture 15).
7. Setting the rabbit /tortoise selector on the basket control station on
“rabbit ”, it is possible to increase the crawlers speed
Check that no one is in proximity.
Place the couple of ramps (of adequate dimensions) and
bring in correspondence of the machine tracks;
Check that the ramps slope does not exceed 20° and that
those are perfectly clean from grease, mud, snow or ice.
WARNING: Should the machine get on a truck, go up the ramp
keeping the drive wheels on the back in order to increase the traction.
Use loading ramps with suitable dimensions and strength. Secure the
machine to the truck plane by the junctions on the base cart. Ensure
the machine is turned off during transportation.
WARNING: If the slope is more than > 8° the travel has to be
performed with radio control. The spider Sup19 can travel on
inclination of maximum 13° using only the radio control).
