4.4.3
Basket assembly and access
16. Active the radio control.
17. Use boom telescopic extension lever until pivot support
nearly touches the ground (Picture28).

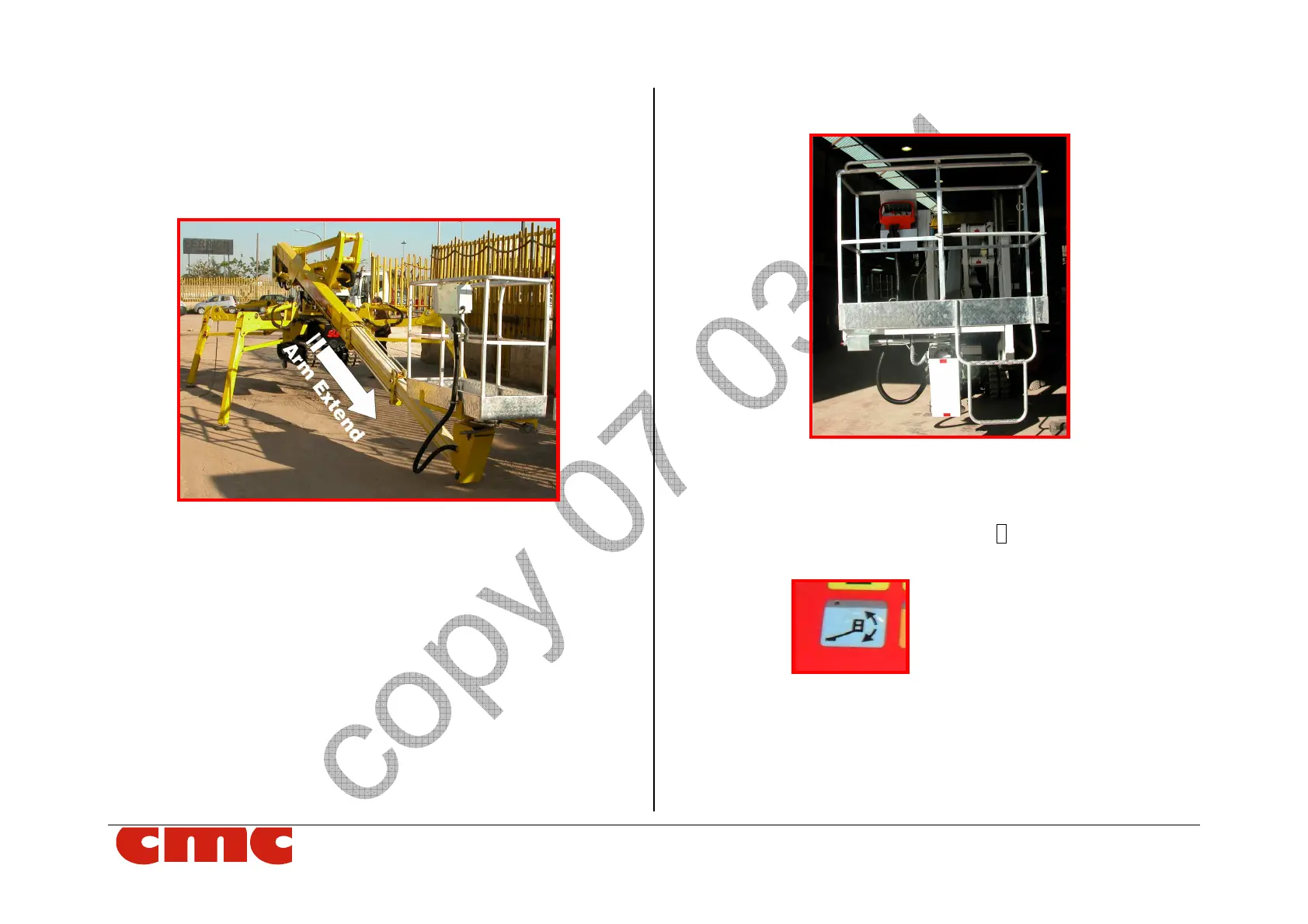

Picture28 Boom extension to enter in the basket
18. Activate the “platform control (performance) position”
(Figure 19) by simply pushing the emergency button,
riportandolo nella posizione originaria e riaccendendo la
macchina (Figure 19);
19. Accessing basket: Enter basket by lifting the self-locking bar and
using the flip down step placed now under the basket; Enter
basket by stepping on the two steps provided as shown on figure
32.
20. Once inside, raise step with small hand cable and insure that
the raised safety bar now slides down and locks step in
closed position. Hook safety fall arrest belts to the fall arrest
safety belt mounting eye in the basket.
Picture 29: basket steps
4.4.4
Basket leveling
21. After making sure the light 6 (par. 3.5.1 - Picture 16) is
on, using the platform control (exercise) station (par.
3.5.1) level the basket using, both the dead man button
and the Joystick lever for basket
leveling control (Picture 16- par. 3.5.1) in case the floor
is out of level.
