CNCDIY CNC 6040 - Page 16

CNC 6040 Router / Engraver System
CNCDIY CNC Routing Machines System User’s Manual

16
1

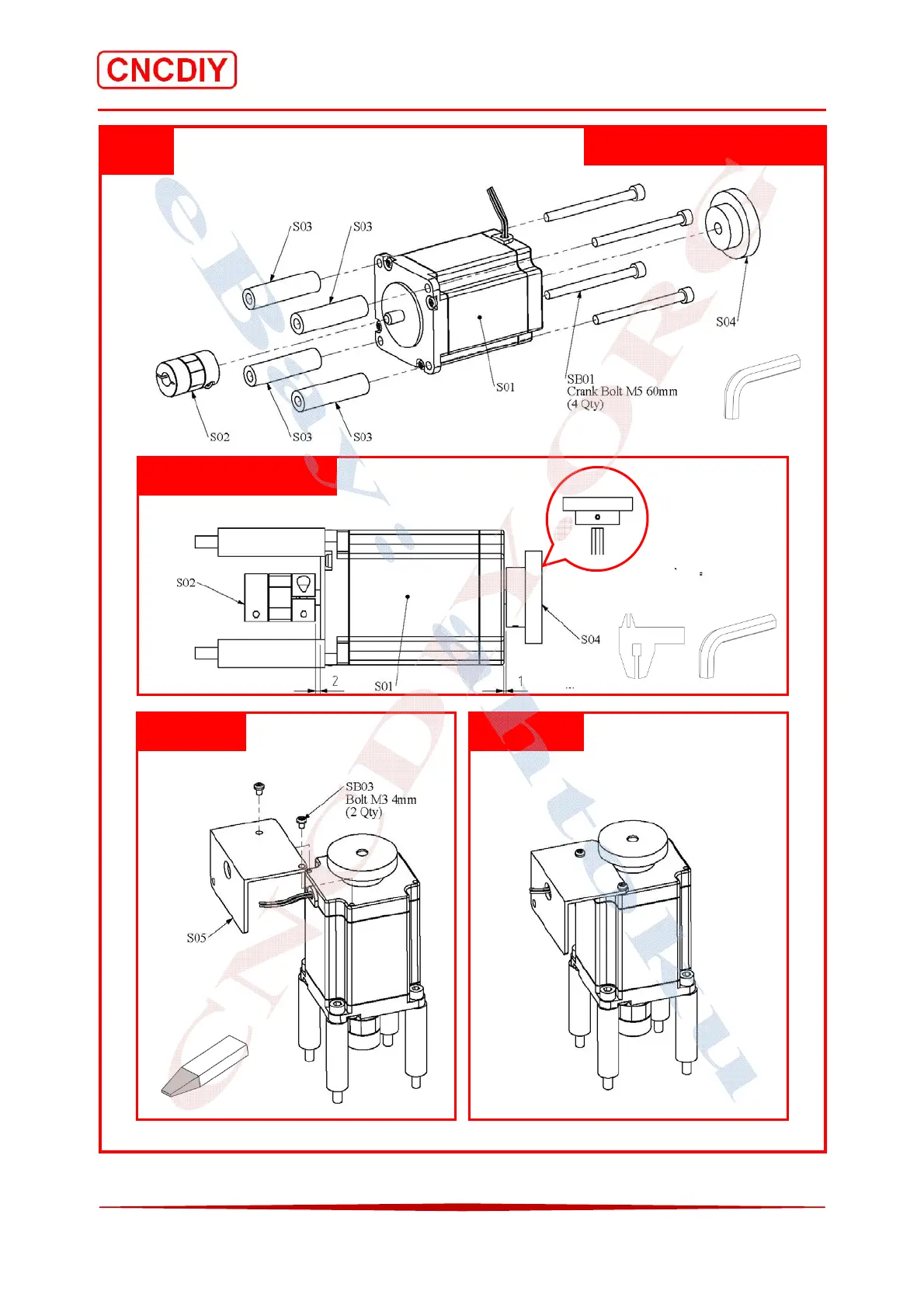

ComponentClearance
ZAxisPart Completed!
SteppingMotorPart

The flat side of
the shaft is
connecting with
the bolt of knob
for locking!
The wires are
through the hold!
