3-7 Tools and Materials Requirement
In this chapter, there are discuss the major tools for the assembly work!

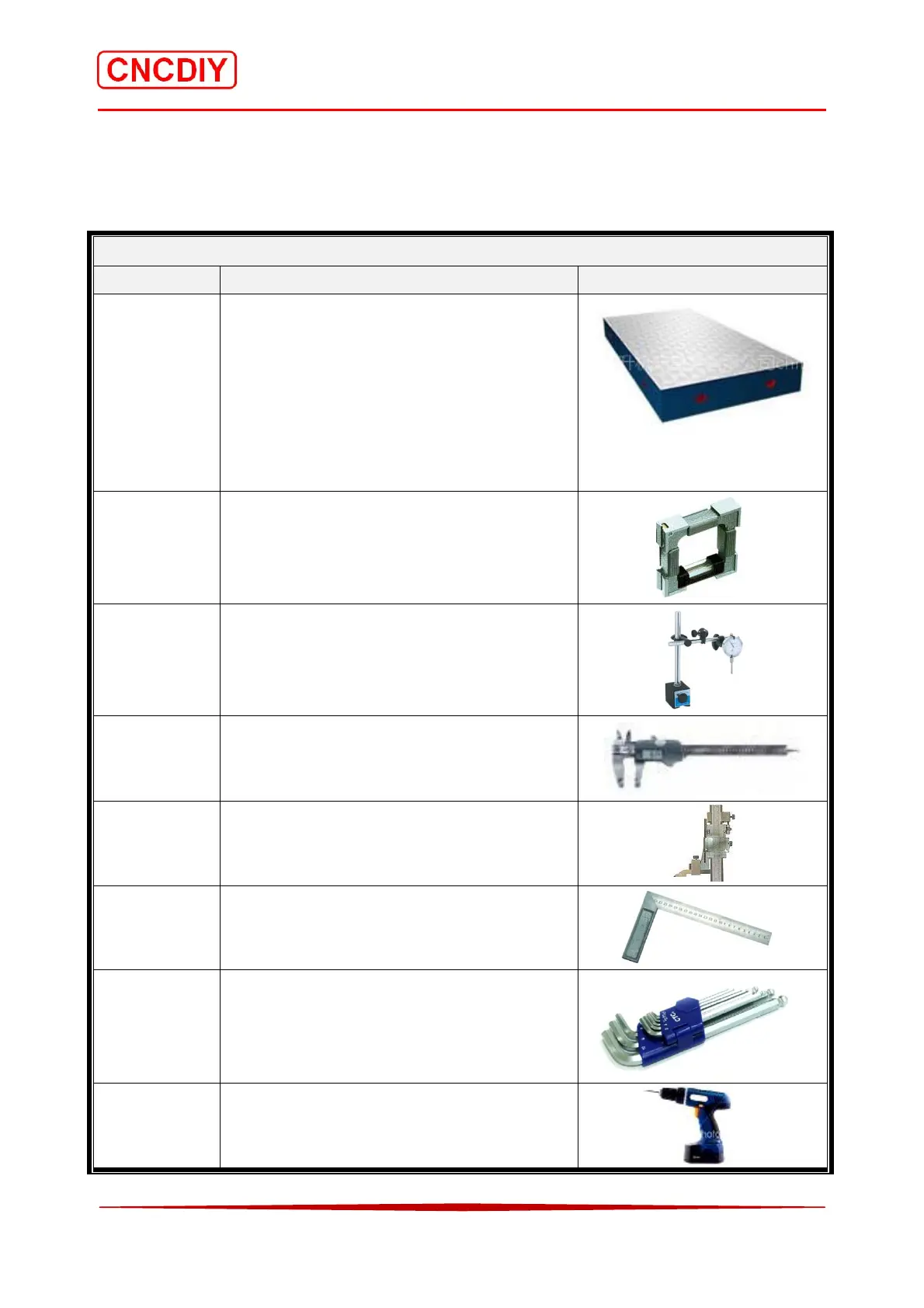

Figure 3.7 Tools list
A. Mechanical Part
Tools Name Description Picture
Processing
Platform
The Processing platform is an important for
assembly. A Processing platform can make
sure the machine table is level.
1. The best is metal Processing platform.
2. Any level plate or platform can also be
used such as metal plate /table or wood plate
/table.
Frame Level
The frame level use to measure the working
table, Horizontal and vertical parts
Dial Test
Indicator
Measures displacement at an angle of a lever
or plunger perpendicular to the axis of the
indicator. A regular dial indicator measures
linear displacement along that axis.
Calliper
Measure the distance between two
symmetrically opposing sides.
Height Gauge
Measure vertical distances. The pointer is
sharpened to allow it to act as a scriber and
assist in marking out work pieces.
Square ruler
To measure the right angle when you
assembling the Gantry Frame Part and the
Base Part.
Hexagon keys
The Metric Hexagon keys are the main
assembly tooling! The long armtypeofthe
Hexagon keys is most useful and save your
energy! The sizes are from 1.5 to 10.
Screwdriver
The flat and crosshead types of screwdrivers
are needed. The electric screwdriver is highly
recommended!
To Next Page
