3-2 Understanding of Your Machine System
For the future use and maintenance, user should understand your routing machine system first.

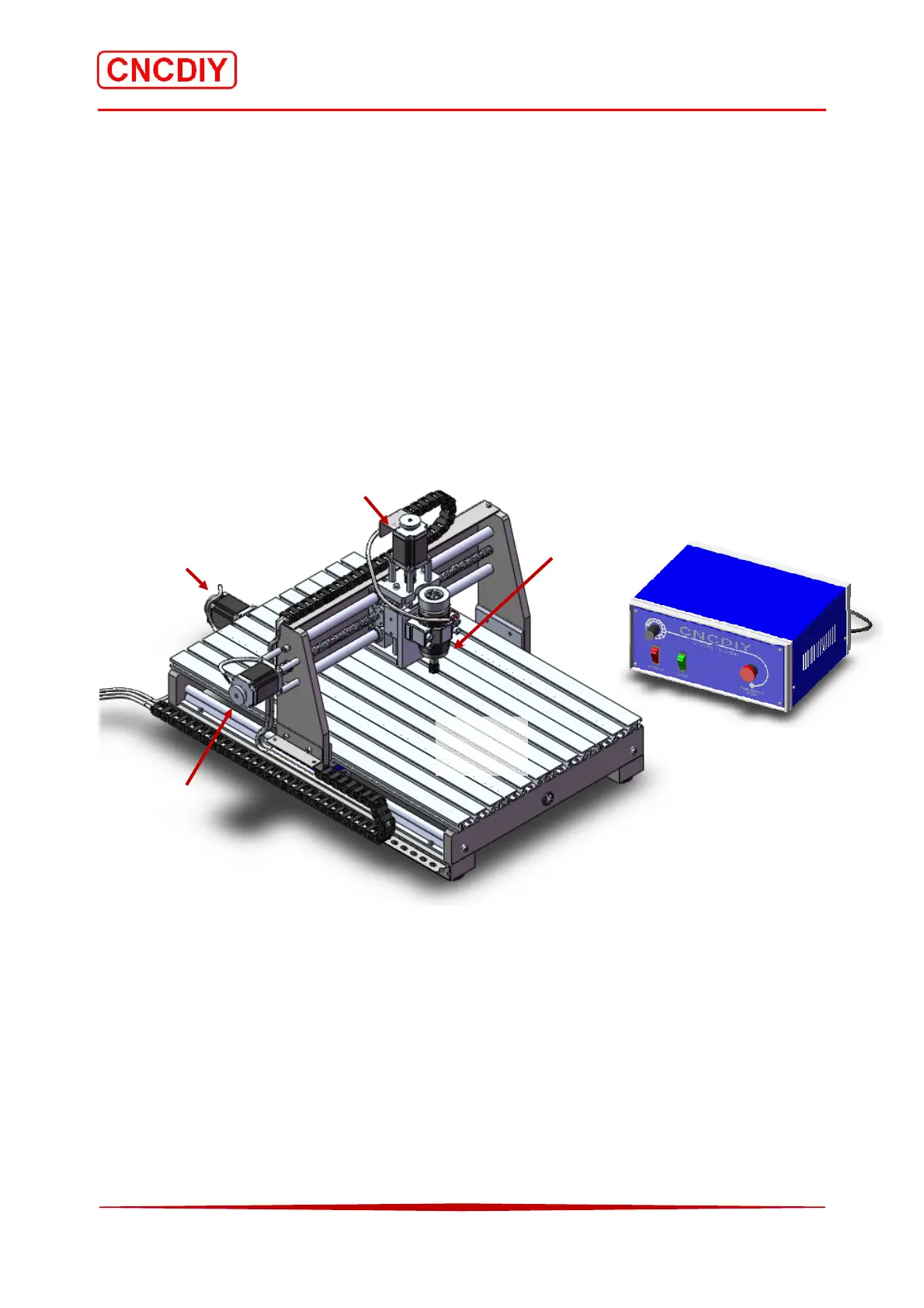

The major parts are shown in below figure and include a set of routing machine, a CNC control
box, spindle with bracket, and an attachment box. The attachment box is included 4 sets of platen,
5 of basic tooling, a pair of brushes for spindle replacing, a pair of spindle handles and a Hex
wrench and some screws. (Note: The screws are attached to a few random, different parts may
require different lengths and types of screws, is depending on the actual needs of their own,
separately purchased locally)
CableChain
ZAxis
Stepping
Motor
XAxis
Stepping
Motor
YAxis
Stepping
Motor
Spindle
Working
Table
CNCRoutingMachine
CNCControlBox
