CNC 6040 Router / Engraver System
CNCDIY CNC Routing Machines System User’s Manual
33

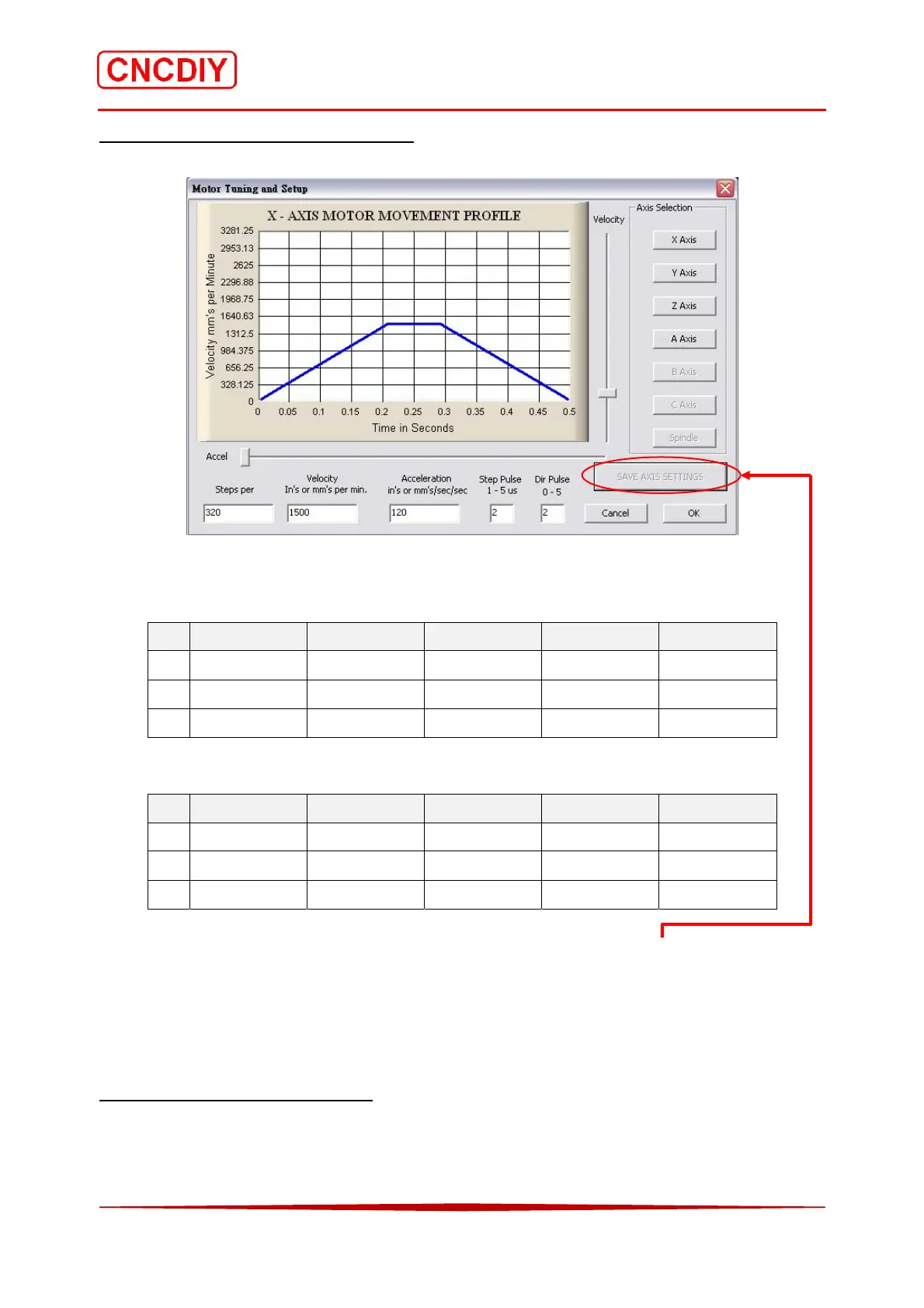

Step 3 Parameters of stepping motor
The suggested settings for different unit are shown in the table below:
A. For millimeter unit use
Steps per Velocity Acceleration Step Pulse Dir Pulse
X 320 1500 - 2000 300 10 5
Y 320 1500 - 2000 300 10 5
Z 320 #750 - 1000 150 10 5
B. For inch unit use
Steps per Velocity Acceleration Step Pulse Dir Pulse
X 8128 59 – 78.7 12 10 5
Y 8128 59 – 78.7 12 10 5
Z 8128 #29.5 – 39.4 6 10 5
After completed the setting for each axis, please press the “SAVE AXIS SETTINGS” button to
save and confirm your setting.
(#)The velocity of Z axis is depended on the cutting speed and processing materials to
define, the speed cannot fast, which will break the cutting tools!
Step 4 Save and Exit the setting
Select “OK” to save all setting and exit.
