2.1.6 Electrical interfaces - overview

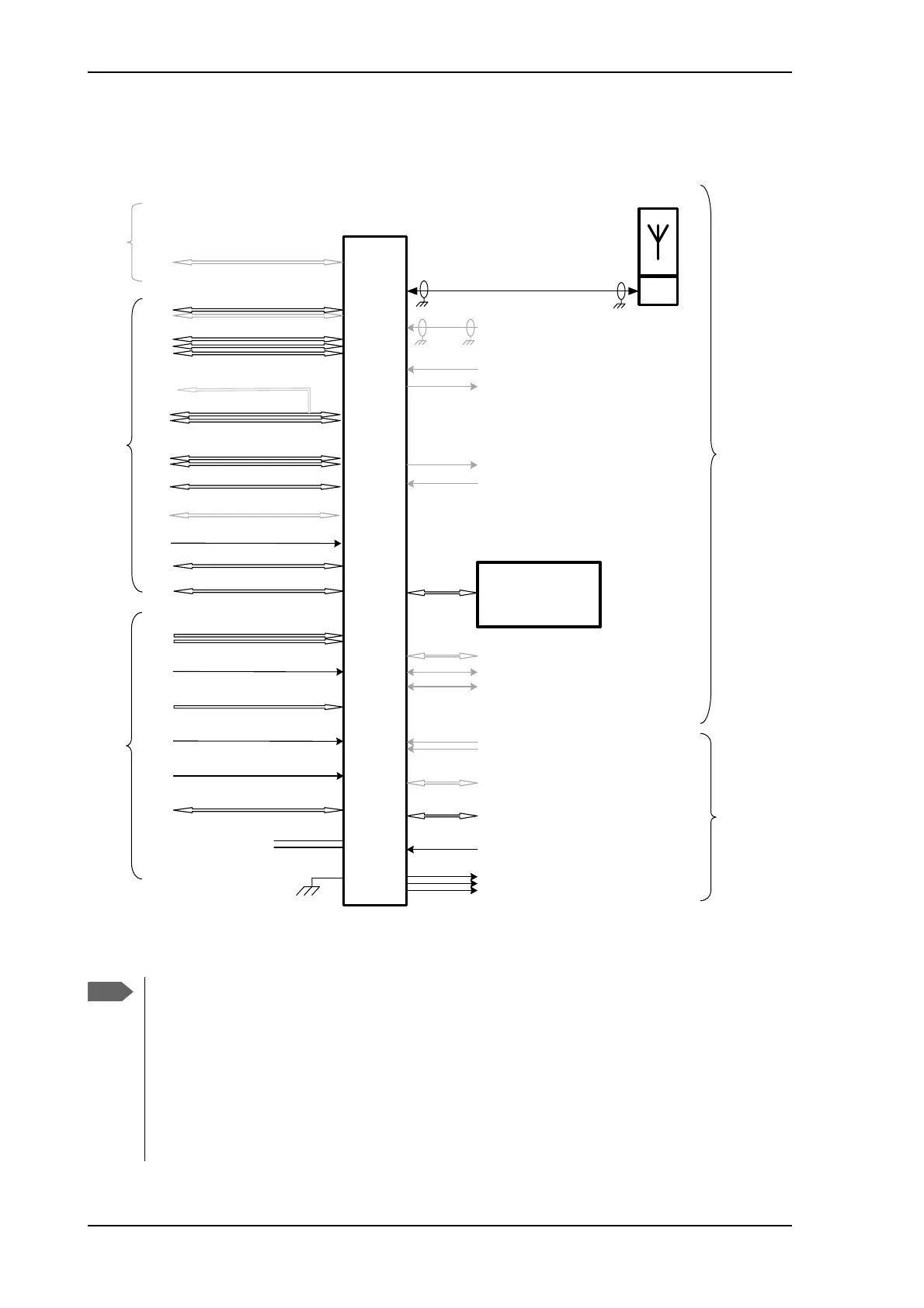

Figure 2-2: Electrical interfaces - overview
The interfaces greyed out are disabled or not in use in the AVIATOR 200S
software. This can be due to interfaces not being supported or reserved for future
use.
Interfaces marked in black are supported in the AVIATOR 200S software.
For interfaces marked in black showing support of 2 interfaces, at least one will be
implemented. This is the case for AISD EFB Ethernet, e.g. picture shows 2xEFB, but
only one EFB interface is available. The second AISD Ethernet is reserved for test
or maintenance use.
SDU-
5045
CSDU
2 x IRS/AHRS/GNSS/NPI (A429)
Aircraft Interfaces
Aircraft Power : 115V AC
1 x Multi-Control ARINC-429 transmitter
Chassis ground
Cabin interfaces
Internal Satcom interfaces
SCM-5055
SDU Configuration
Module (SCM)
1 x Ethernet on Front Panel
(for production only)
2 x ATE Inputs for production
1 x Antenna BITE ARINC-429 receiver
1 x LNA BITE discrete
1 x LNA On/Off discrete
1 x SCM
1 x SDU Reset discrete
3 x Status LED on Front Panel
1 x PIESD (Cabin)
10/100 BaseT Ethernet
Cockpit interfaces
2 x AISD (EFB) Ethernet
1 x ARINC-429 Dual System Crosstalk
3 x MCDU (A429)
2 x ACARS/CMU (A429)
2 x Cockpit Audio
1 x Priority Ethernet
1 x Data Loader A615A (Ethernet)
1 x Data Loader A615-3 (A429)
1 x AES ID (A429)
1 x WOW Discrete
1 x CFDS/CMC (A429)
8 x Cockpit Voice Discrete
1 x Dual System Select
1 x Dual System Disable
1 x USB on Front Panel
(for maintenance only)
1 x Push-to-Test on Front Panel
Production/Maintenance
interfaces
LGA-5005
HLD
Inmarsat RX
Inmarsat RX/TX and HLD modem/DC
up to 5 SIM Cards
CSDU
SCM
HELGA
ECAM / EICAS (FWC/FWS)
1 x Tx Mute Discrete
1 x Data Load Discrete
