The SAILOR 6280/6281 AIS System
4 Chapter 1: Introduction 98-135323-H
The SAILOR 6280/6281 AIS System
The SAILOR 6280 AIS System consists of the following units:
1. SAILOR 6282 AIS Transponder
2. SAILOR 6285 GNSS Antenna - Active
3. SAILOR 6004 Control Panel
4. SAILOR 6283 AIS Connection Box and Wall Tray
The SAILOR 6281 AIS Basic System consists of the following units:
1. SAILOR 6282 AIS Transponder
2. SAILOR 6285 GNSS Antenna - Active
3. SAILOR 6004 Control Panel
Overview of a SAILOR 6281 AIS Basic System
The following figure shows the system configuration.
The SAILOR 6004 Control Panel is connected to the SAILOR 6282 AIS
Transponder through a LAN connection (LWE/IEC 61162-450), here after called

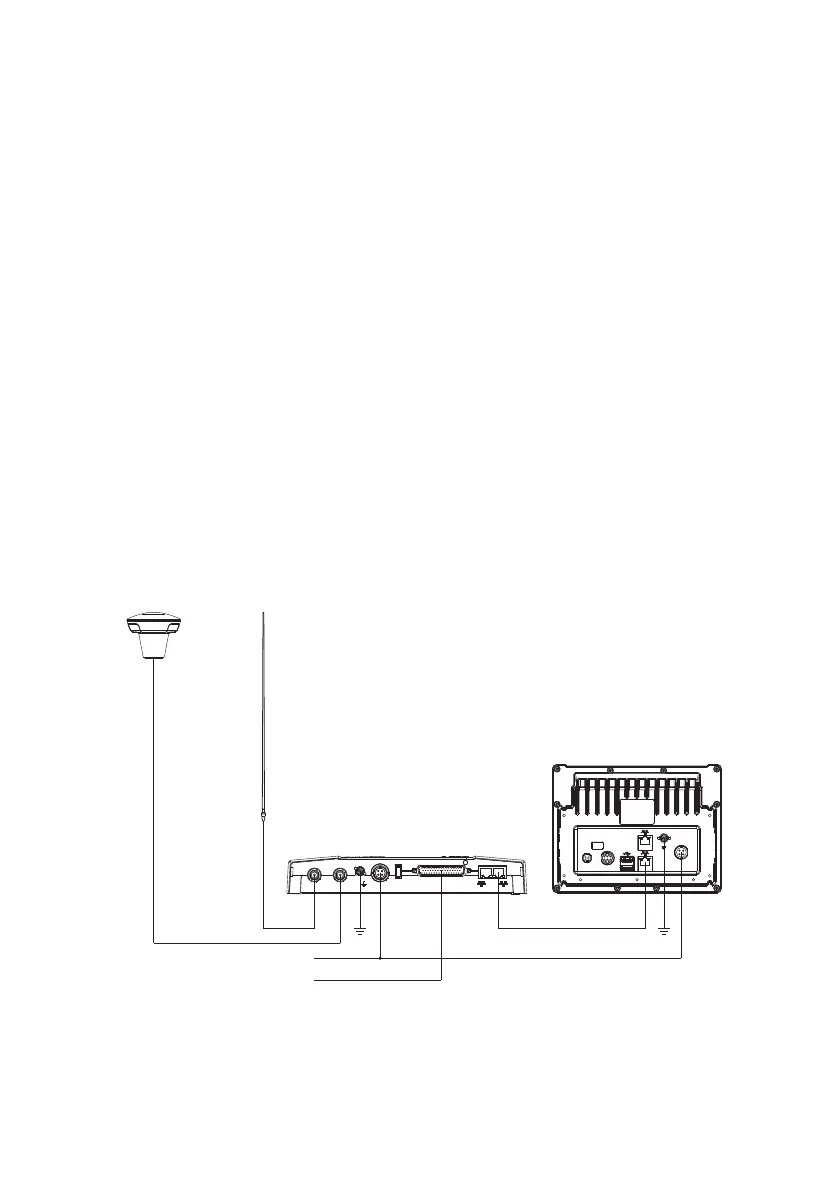

Figure 2: System configuration for the SAILOR 6281 AIS Basic System
GNSS Antenna - Active
SAILOR 6004 Control Panel
VHF Antenna
12-24 VDC
Connector for interface connections
VHF/GPS GPS 12-24V DC
FUSE
SUB-D50
1
SAILOR 6282 AIS Transponder
or connection board
SAILOR 6285
ACC
AUX
TEST
PWR
