System components
6 Chapter 1: Introduction 98-135323-H
System components
SAILOR 6282 AIS Transponder
The SAILOR 6282 AIS Transponder is a combined Class A and Inland AIS station.
It has connectors for GNSS and VHF antenna, a ground stud, connector for DC
power (12–24 VDC), multi connector for interfaces and 2 LAN connectors. The
SAILOR 6282 AIS Transponder is always on, provided there is DC power.
The SAILOR 6282 AIS Transponder supports 3 sensor inputs for e.g. GNSS and
ROT and 4 presentation interfaces for e.g. ECDIS, Radar, Long Range, Silent Mode
and Pilot Plug,. It also has inputs for Blue Sign functionality, Low Power Forced
Control (gas alarm) and output for alarm. The SAILOR 6282 AIS Transponder has
three LEDs showing the status of Power, Rx and Tx.

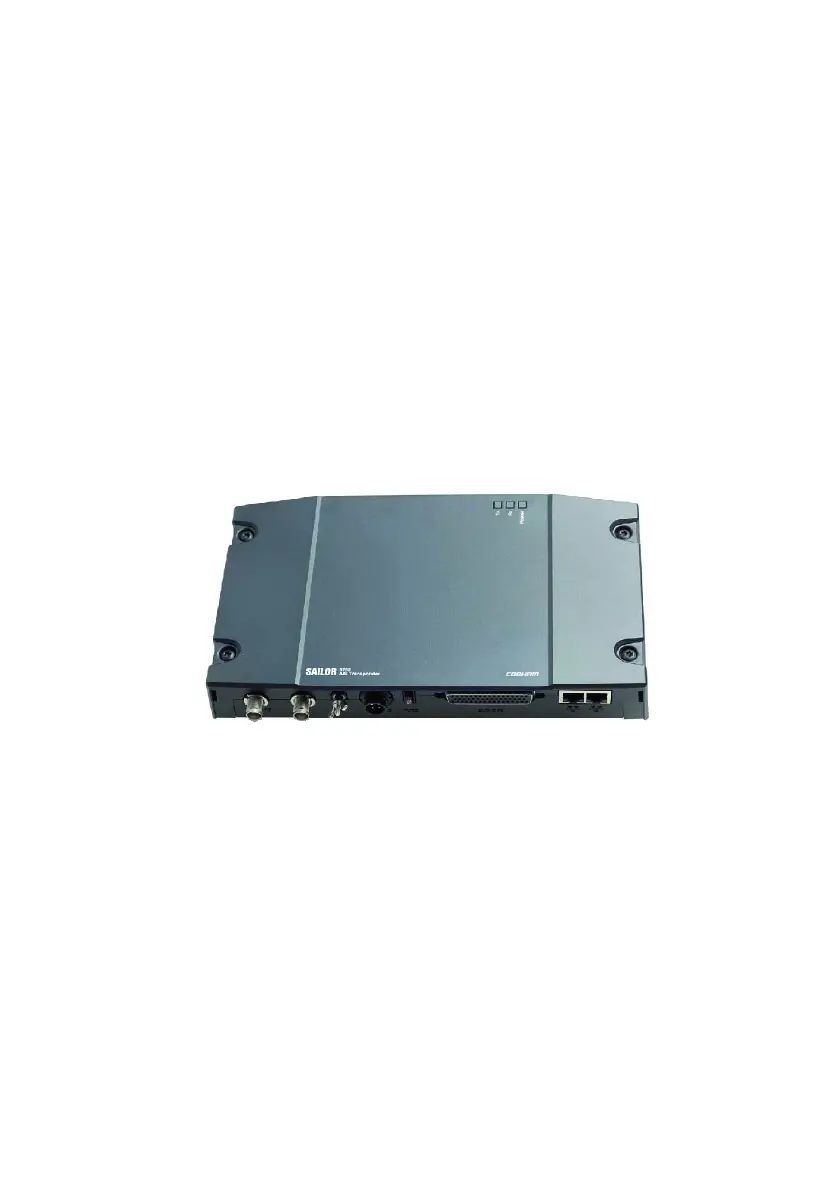

Figure 3: SAILOR 6282 AIS Transponder
