Parts – Carburetor
48 RCMU0048 88 RCMU0088 94 RCMU0094
50 RCMU0050 89 RCMU0089 95 RCMU0095
52 RCMU0052 90 RCMU0090 96 RCMU0096
55 RCMU0055 91 RCMU0091 97 RCMU0097
60 RCMU0060 92 RCMU0092 98 RCMU0098
65 RCMU0065 93 RCMU0093
PILOT JET MAIN JET*
*Larger and Smaller sizes are available upon request

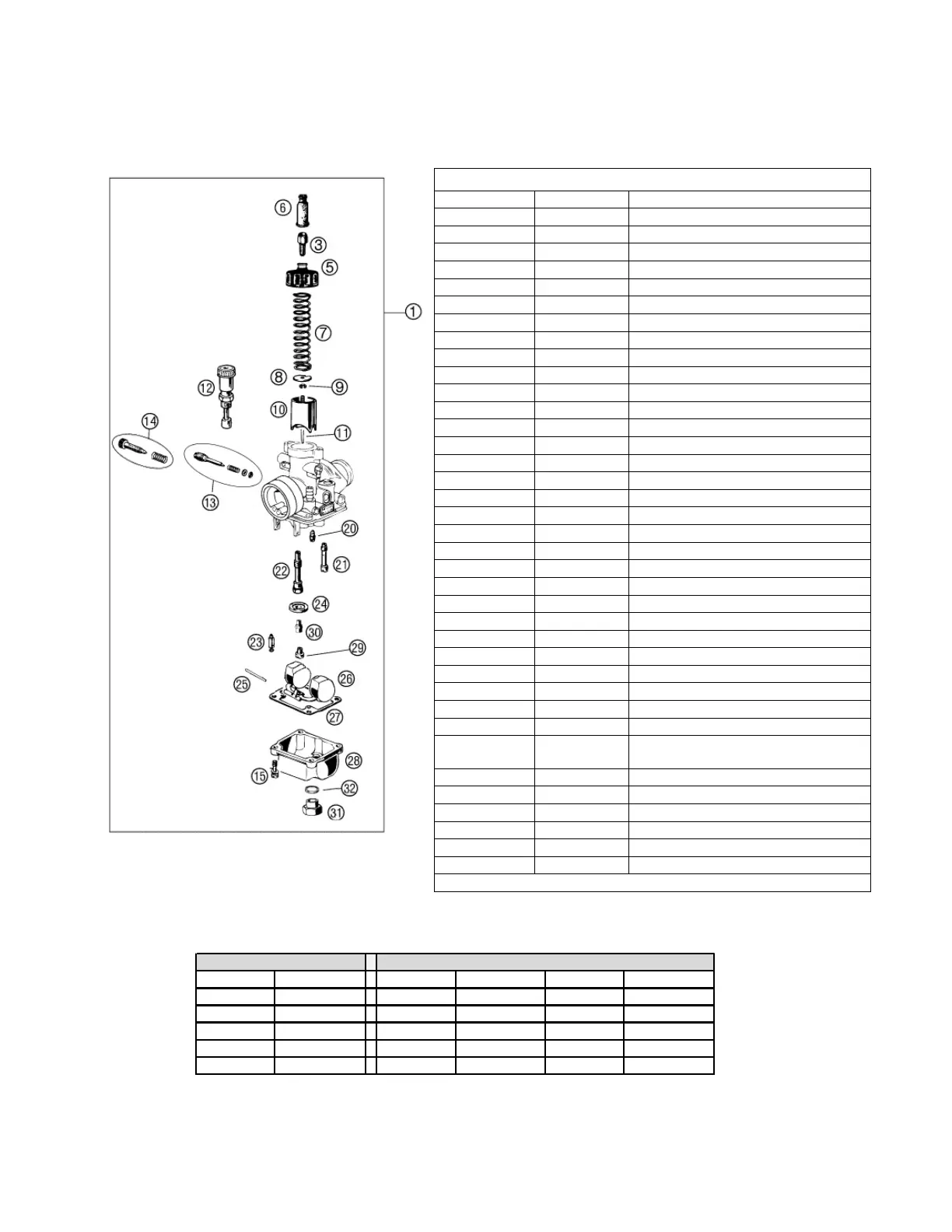

Carburetor
REF. # PART # DESCRIPTION
1 RACS0019 CARBURETOR
3 RCMU0003 CABLE ADJUSTOR
5 RCMU0046 TOP CARB THREAD ON
6 RCMU0102 RUBBER CABLE CAP SEAL
7 RCMU0004L SLIDE SPRING - LIGHT
8 RCMU0028 NEEDLE RETAINER PLATE
9 RCMU0007 NEEDLE CLIP
10 RCMU0305 SLIDE - #40
11 RCMU0601 NEEDLE – W7
12 RCMU0204 CHOKE ASSEMBLY
12A RCMU0209 O-RING CHOKE ASSEMBLY
13 RCMU0009 FUEL MIXTURE SCREW #16
14 RCMU0011 IDLE ADJUSTMENT SCREW #18
15 RCMU0201 SCREW – FLOAT BOWL
20 RCMU00xx PILOT JET, xx denotes size
22 RCMU0262 ATOMIZER 2.62 AU STANDARD*
23 RCMU0107 FLOAT NEEDLE
24 RCMU0012 DIFFUSER #20
25 RCMU0016 FLOAT RETAINER PIN
26 RCMU0301 FLOAT #7
27 RCMU0103 FLOAT BOWL GASKET
28 RCMU0043 FLOAT BOWL W/ THREADED HOLE
29 RCMU00xx MAIN JET, xx denotes size
30 RCMU0044 MAIN JET EXTENSION
31 RCMU0039 FLOAT BOWL PLUG
32 ZCMU0037 BOWL PLUG GASKET
NOT SHOWN
RCCM1301 VELOCITY STACK
NOT SHOWN
RCCS0006 FUEL LINE, 5”
NOT SHOWN
MCMUCL04 HOSE CLAMPS – FUEL LINE
NOT SHOWN
RCMU0020 ELBOW - CARB VENT
NOT SHOWN
RAMU0001
CANNULUS - Y STYLE CARB
VENTS
ACCESSORY
RCMU0031 SLIDE - #30
ACCESSORY
RCMU0250 SLIDE - #50
ACCESSORY
ECKG0160 SLIDE - #60
ACCESSORY
RCMU0026 NEEDLE - W4
ACCESSORY
RCMU0602 NEEDLE - W16
*Different sizes are available upon request
