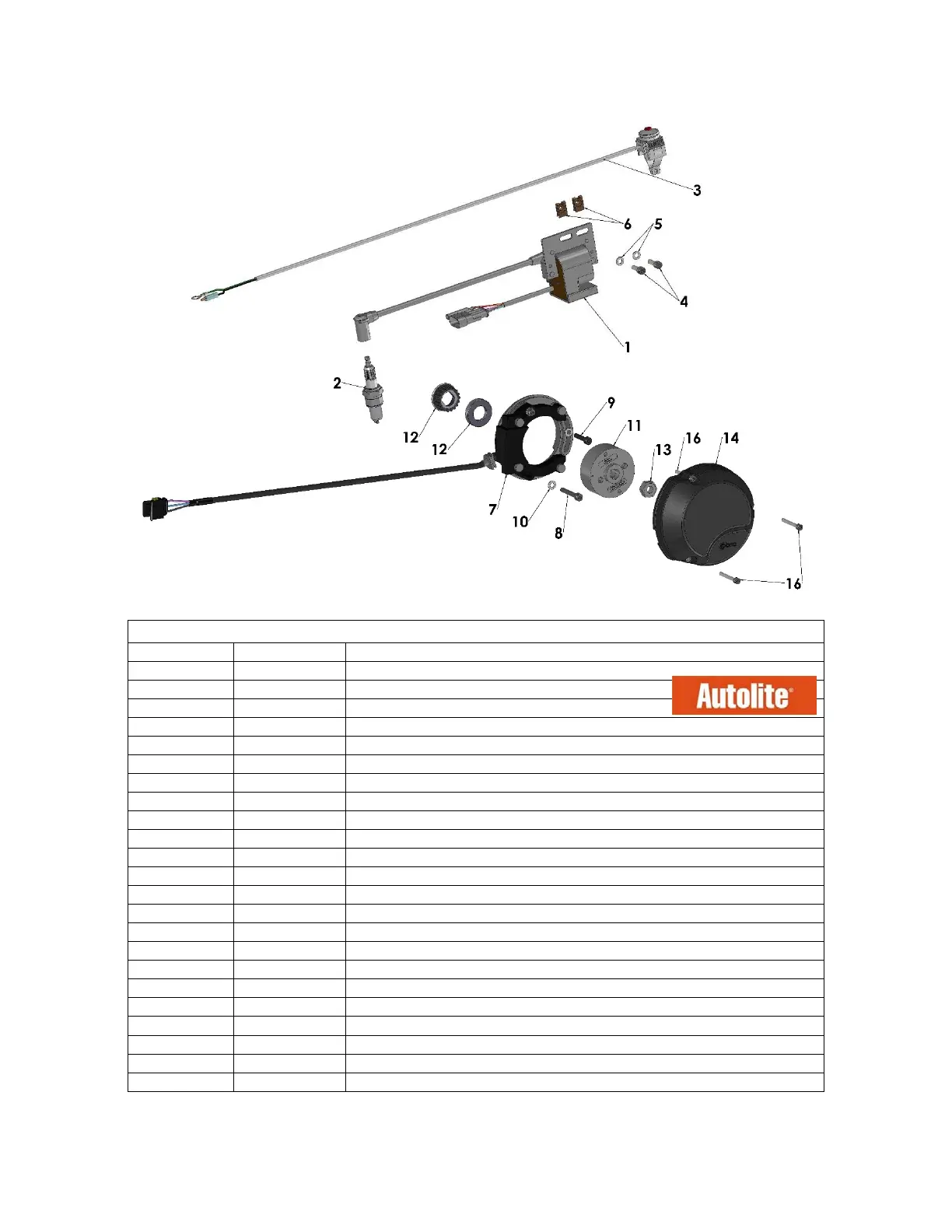

Parts – Electrical System
Electrical System
REF # PART # DESCRIPTION
1 IAMU0005 COIL/CDI W/SPARK PLUG CAP
2 ECMU0010C SPARK PLUG, AUTOLITE COPPER
2A ECMU0010I SPARK PLUG, AUTOLITE IRIDIUM
3 FCMU0033 KILL SWITCH ASSEMBLY
4 HCBC0514 M5X14mm SOCKET HEAD CAP SCREW (2 REQ’D)
5 HCWF0501 5mm FLAT WASHER (2 REQ’D)
6 HCCN0000 5mm CLIP NUT (2 REQ’D)
7 ICMU0023 STATOR WITH GROMMET
8 HCBC0535 M5X35mm SOCKET HEAD CAP SCREW (2 REQ’D)
9 HCBC0525 M5X25mm SOCKET HEAD CAP SCREW
10 HCWF0601 6MM FLAT WASHER FOR STATOR (3 REQ’D)
11 ICMU0042 ROTOR – FEW 2016.5
12 EKMU0035 KIT – PULLEYS, SPACER & BELT RETAINER, VENOM
13 HCNS1001 NUT M10
14 ECC60166 IGNITION COVER
15
16 HCBC0401 M4X25mm SOCKET HEAD CAP SCREW (3 REQ’D)
NOT SHOWN
ICMU0012 WOODRUFF KEY (NOT SHOWN)
NOT SHOWN
FCMU0030 COVER – KILL SWITCH SCREW
ACCESSORY
ICMU0017
SPARK PLUG CAP – 0

TOOL
MCMUTL70 TOOL – CLUTCH & 50CC FLYWHEEL PULLER
TOOL
ECMU0079 TOOL – DIAL INDICATOR – SPARK TIMING
