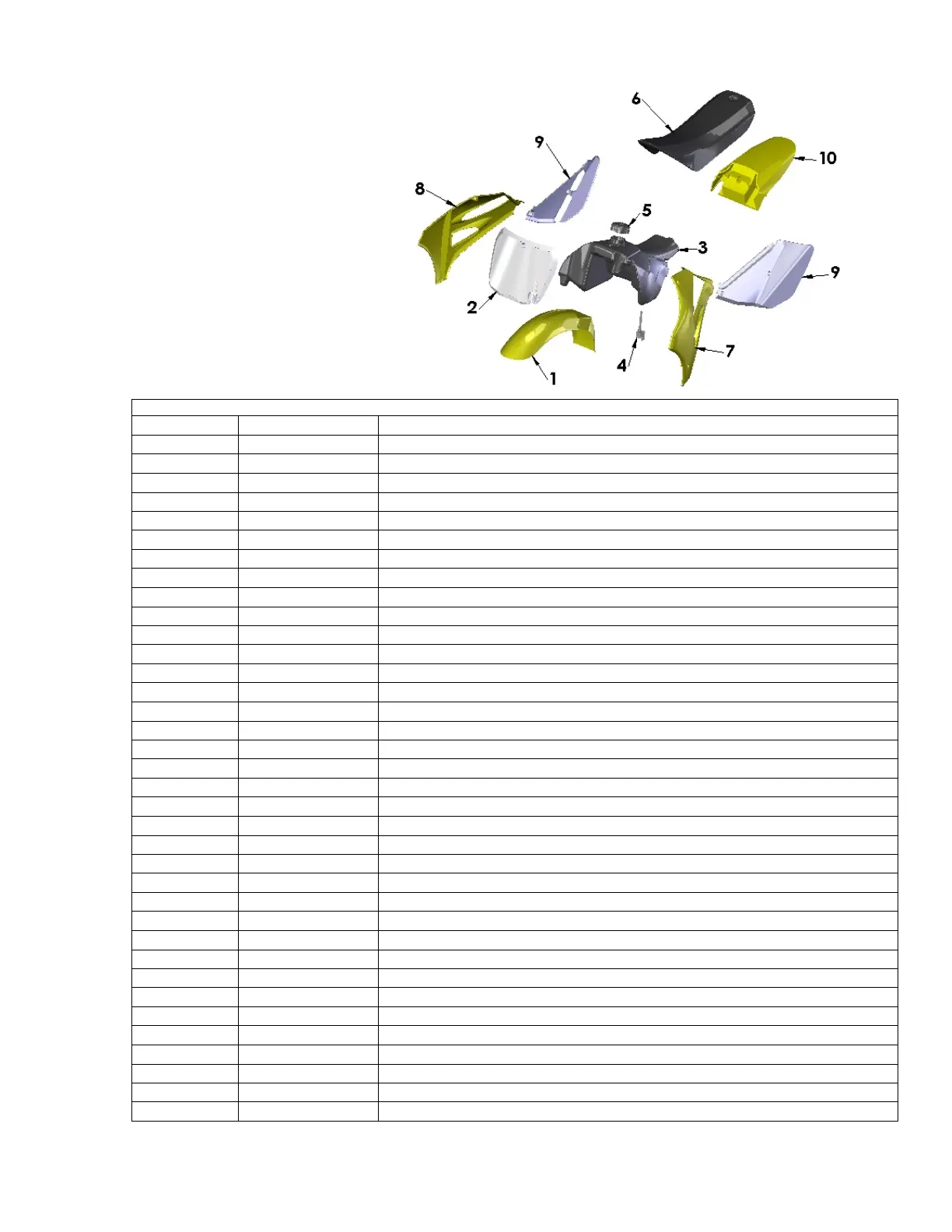

Parts – Plastic Bodywork & Seat
Plastic and Seat
REF # PART # DESCRIPTION
1 TCMU0016x FRONT FENDER x – DENOTES COLOR BLK, WHT, YEL, FLL
1A HCBF0616 FRONT FENDER MTG BOLTS (4 REQD)
2 TCC60002x FRONT NUMBER PLATE x – DENOTES COLOR BLK, WHT, YEL
2A HCBF0616 M6X16mm FLANGE HEAD BOLT – FRONT NUMBER PLATE MOUNT
3 TCC60024 FUEL TANK (NO PETCOCK OR CAP)
3A HCBC0503 M5X30mm SOCKET HEAD CAP SCREW – FRONT TANK MOUNTING
3B TCC60027 SPACER – FRONT TANK MOUNTING
3C TCC60029 SPACER – SEAT MOUNT
3D HCFH0620 M6X20mm FLAT HEAD – FRONT SEAT MOUNT
4 TCMU0151 PETCOCK
5 TCHA0002 CAP – FUEL TANK
5A TCHA0003 HOSE – FUEL CAP
6 TAFW0001 SEAT – FACTORY WORKS EDITION - CX50
6A TCFW0001 COVER – SEAT – FACTORY WORKS EDITION CX50
6B TCC60018 SPECIAL WASHER – SEAT HOLDING
6C HCBC0625 M6X25 SHCS, REAR MOUNTING BOLT
7 TCC60022x SHROUD LEFT, x – DENOTES COLOR BLK, WHT, YEL, FLL
7A TCC60017 BODY PANEL WASHER 5MM (1 REQ’D) – MT SHROUD TO RADIATOR
7B HCBC0514 M5X14 SHCS (1 REQ’D) – MOUNT SHROUD TO RADIATOR
7C HCCN0000 5MM EXTRUDED “U” NUT
7D HCSP0004 PLASCREW – SHROUD TO TANK
8 TCC60023x SHROUD RIGHT, x – DENOTES COLOR BLK, WHT, YEL, FLL
8A HCSP0004 PLASCREW – SHROUD TO TANK (2 REQ’D)
9 TCCS0001x NUMBER PLATE PAIR x – DENOTES COLOR BLK, WHT
9A HCBC0514 M5X14 SOCKET HEAD CAP SCREW (2 REQ’D PER SIDE)
9B TCC60017 BODY PANEL WASHER 5MM (2 REQ’D PER SIDE)
9C HCCN0000 5MM EXTRUDED “U” NUT
10 TCCS0005x REAR FENDER, x – DENOTES COLOR BLK, WHT, YEL, FLL
10A HCSP0004 PLASCREW (2 REQ’D) – FENDER TO AIRBOX - 2016
10B HCBC0514 M5x14 SOCKET HEAD CAP SCREW (2 REQ’D)
10C HCWP0002 WASHER - BODY PANEL FLAT (2 REQ’D)
10D HCHA0003 CLIP NUT – 6mm
ACCESSORY TCFW2016 GRAPHIC KIT – CX50 FEW 2016
ACCESSORY TKCS0001B BODYWORK KIT - 2010 & NEWER KING - BLACK
ACCESSORY TKCS0001W BODYWORK KIT - 2010 & NEWER KING - WHITE
ACCESSORY TKCS0001Y BODYWORK KIT - 2010 & NEWER KING - YELLOW
To Next Page
