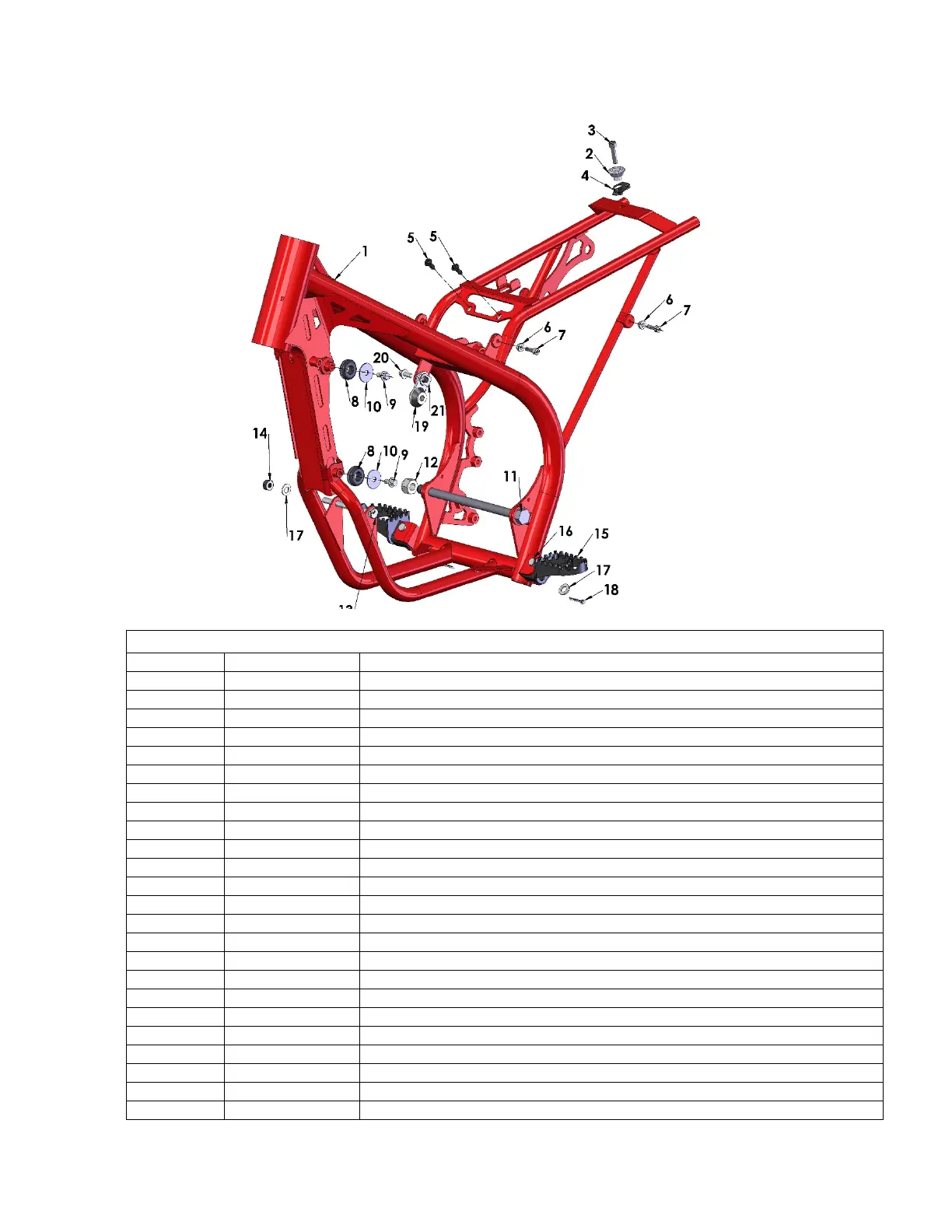

Parts – Frame I
Frame
REF # PART # DESCRIPTION
1 FACS2016FWE FRAME KING – FACTORY WORKS EDITION
2 TCC60018 SEAT MOUNT SPACER
3 HCBC0625 M6X25mm SOCKET HEAD CAP SCREW
4 HCHA0003 6mm CLIP NUT (MOUNTS TO FENDER TO HOLD SEAT)
5 HCSP0003 PLASCREW AIRBOX MOUNTING (2 REQ’D)
6 TCC60017 WASHER – 5mm BODY PANEL (2 REQ’D)
7 HCBC0514 M5X14mm SHCS
8 MCC6GR01 GROMMET, RADIATOR MOUNTING (2REQ’D)
9 HCBF0616 M6X16mm FLANGE HEAD BOLT (2 REQ’D)
10 HCWF1478 FLAT WASHER (2 REQ’D)
11 HCBH1203 M12 SWINGARM PIVOT BOLT
12 HCNL1201 M12 SWINGARM LOCK NUT
13 HCBH0880 M8X80mm HEX HEAD BOLT
14 HCNL0801 M8 LOCK NUT
15 TAMU0005 FOOTPEGS (PAIR) (STANDARD)
16 FCMU0031 CLEVIS PIN - FOOTPEG
17 HCWF0801 8mm FLAT WASHER
18 HCCP0008 COTTER PIN 1/8 X 3/4
19 XCMU0033 ISOLATION MOUNT – EXHAUST
20 HCBF0616 M6X16mm FLANGE HEAD BOLT (2 REQ’D)
21 HCHA0003 6mm CLIP NUT
ACCESSORY
TCMU0139 ULTRAWIDE FOOTPEG KIT (PAIR) (UPGRADE)
ACCESSORY
TCMU0106 FOOTPEG SPRING (SINGLE PIECE)
To Next Page
