Cobra CX50SR - Parts - Frame II

39

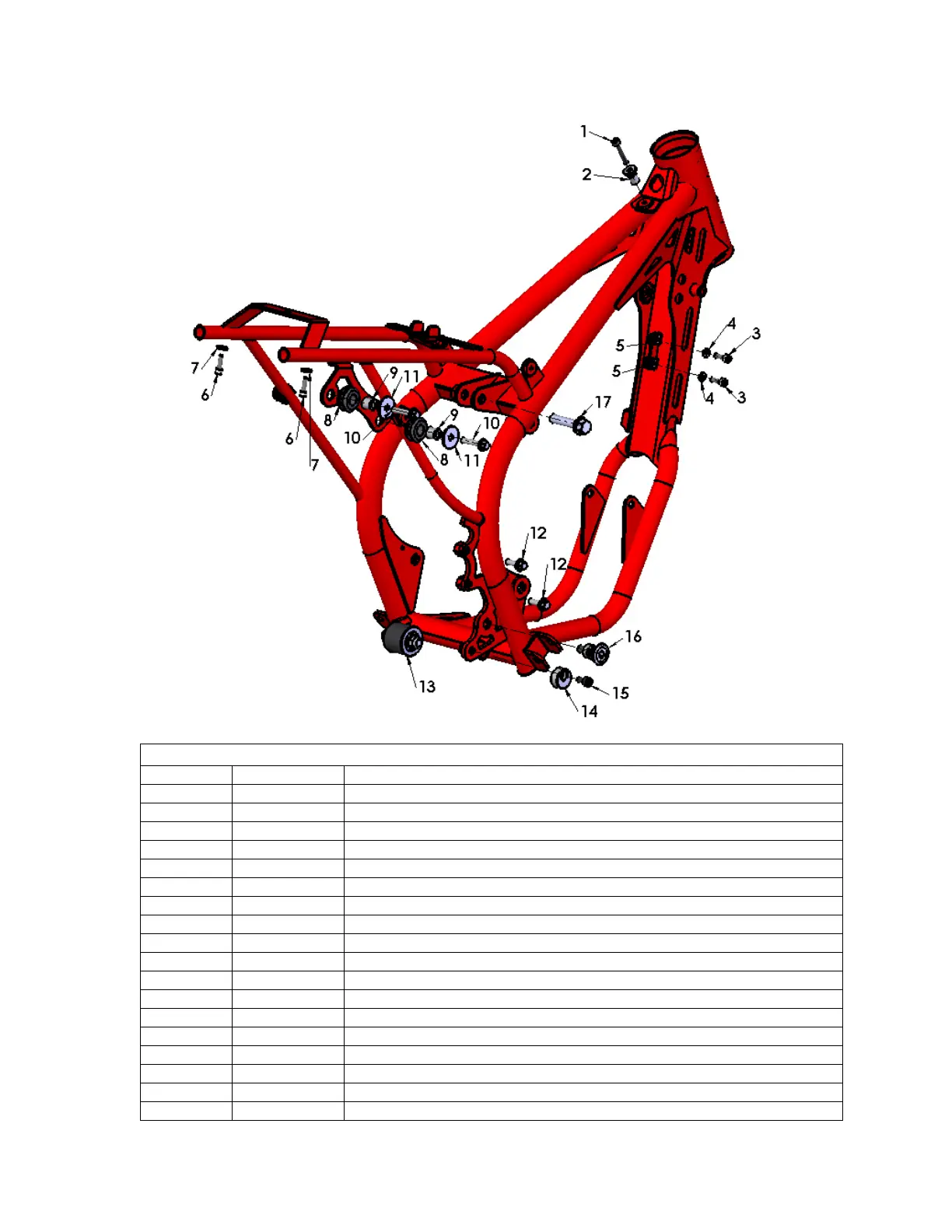

Parts – Frame II
Frame
REF # PART # DESCRIPTION
1 HCBC0503 M5X30mm SOCKET HEAD CAP SCREW FT TANK MOUNTING
2 TCC60027 SPACER – FT TANK MOUNTING
3 HCBC0516 M5X16mm SOCKET HEAD CAP SCREW (2 REQ’D)
4 HCWF0501 5mm FLAT WASHER (2 REQ’D)
5 HCCN0000 5mm CLIP NUT (MAY NOT BE USED)
6 HCBC0514 M5X14mm SOCKET HEAD CAP SCREW (2 REQ’D)
7 HCWP0002 WASHER - BODY PANEL FLAT (2 REQ’D)
8 MCMUGR03 MOUNTING GROMMET (2 REQ’D)
9 TCKG0001 SPACER (2 REQ’D)
10 HCBF0630 M6X30mm FLANGE HEAD BOLT (2 REQ’D)
11 HCWF1478 PIPE GROMMET WASHER (2 REQ’D)
12 HCBF0620 M6X20mm FLANGE HEAD BOLT (2 REQ’D)
13 FCC60020 CHAIN ROLLER W/BEAR & SEALS
13A BCDC0153 WASHER (NOT SHOWN)
14 FCEX0018 BRAKE ADJUST ECCENTRIC
15 HCBC0612 M6X12mm SOCKET HEAD CAP SCREW
16 BCMU0027 BRAKE PIVOT BOLT
17 HCBF1040 M10X40mm HEX HEAD BOLT
