Parts – Rear Brake

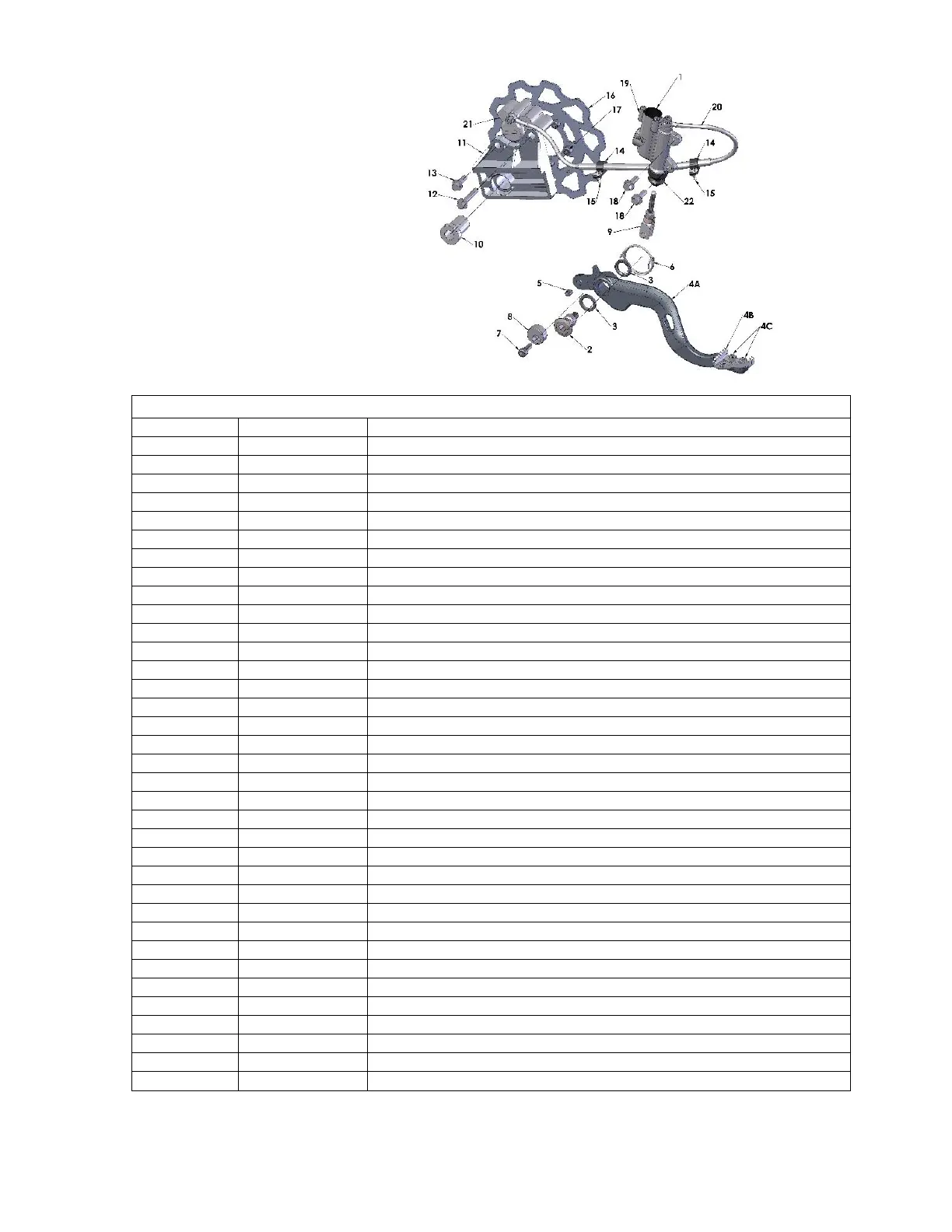

Rear Brake System
REF # PART # DESCRIPTION
1 BAKG0002
BRAKE SYSTEM – REAR (M/C-LINE-CALIPER)
2 BCMU0027 BRAKE PIVOT BOLT
3 BCMU0501 SEAL – BRAKE PEDAL (2 REQ’D)
4A BCMU0029 BRAKE PEDAL – ASSEMBLY 50cc – WITH TOE PIECE
4B BCMU0023T TOE PIECE
4C HCBC0501 M5X 12mm SOCKET HEAD CAP SCREW
5 BCDCBU01 BUSHING REAR BRAKE PEDAL
6 BCMUSP02 BRAKE RETURN SPRING
7 HCBC0601 M6X16mm SOCKET HEAD CAP SCREW
8 FCEX0018 BRAKE ADJUST ECCENTRIC
9 BAC60004 PUSH ROD, REAR BRAKE
10 BCKG0006 WHEEL SPACER - FLOATING CARRIER
11 BCKG0103 BRAKE CARRIER
12 HCBF0635 M6X35 FLANGE HEAD BOLT
13A HCBF0620 M6X20 FLANGE HEAD BOLT
14 HCCC0000 BRAKE HOSE CLAMP (2 REQ’D)
15 HCPP0832 BRAKE HOSE CLAMP FASTENER (2 REQ’D)
16 BCMU0502 BRAKE ROTOR – 140mm
17 HCBC0601 M6X16mm SOCKET HEAD CAP SCREWS (5 REQ’D)
18 HCBF0620 M6X20mm FLANGE HEAD BOLT (2 REQ’D)
19 BCKG0012 BRAKE – MASTER CYLINDER - REAR
20 BCKG0010 REPLACEMENT BRAKE HOSE
21 BCKG0013 CALIPER – REAR BRAKE
22 BCMU0022 BRAKE – RUBBER CAP
ACCESSORY
BKKG0001 BRAKE PADS WITH “E” CLIP
ACCESSORY
BCMU0003 TOOL - BLEED KIT – FORMULA, CARD, AJP
ACCESSORY
BCKG0014 FITTING KIT – W BANJO BOLT
ACCESSORY
BCKG0015 MASTER CYLINDER PISTON / SEAL KIT
ACCESSORY
BCKG0016 RESERVOIR SEAL KIT
ACCESSORY
BCKG0017 CALIPER BOLT / O-RING KIT
ACCESSORY
BCKG0018 CALIPER PISTON / SEAL KIT
ACCESSORY
BCKG0019 PAD RETURN SPRING (4 LEG SPRING)
ACCESSORY
ZCMUOR09 O-RING - BANJO FITTING
ACCESSORY
BCKG0033 O-RING – BLEEDER – 2mm SPECIAL
ACCESSORY
BCMU0019 PADS - SET– XLARGE - OUTLAW
