Parts – Coolant System
Coolant System

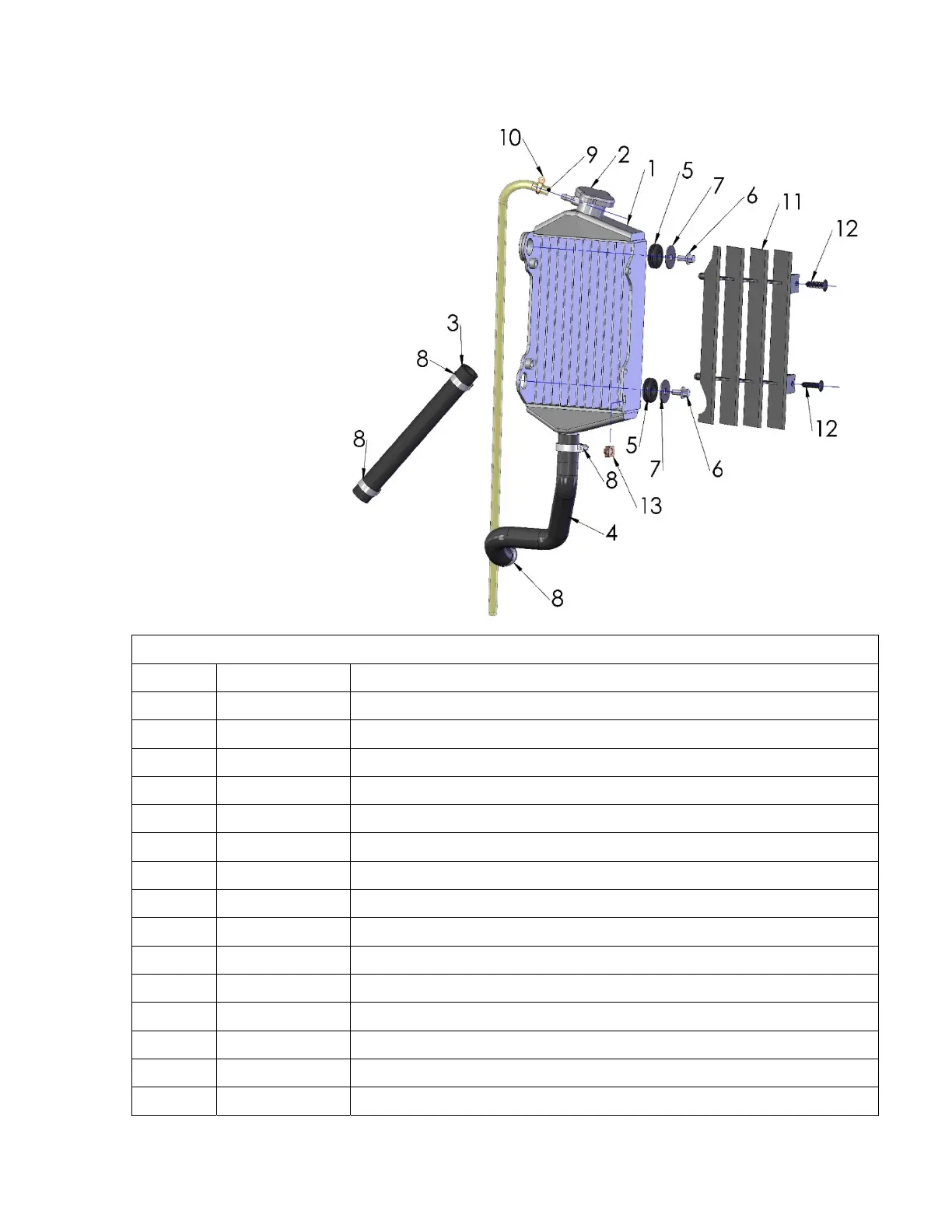

REF # PART # DESCRIPTION
1 FCCS0058 RADIATOR WITH CAP - 2016
2 FCMU0052 CAP, 1.3 BAR, WITH RIBS
3 ECCS0014 RADIATOR HOSE, TOP, LEFT
4 ECMU0275 RADIATOR HOSE, BOTTOM
5A MCMUGR03 GROMMET, RADIATOR MOUNTING (TOP) THICK ONE
5B MCC6GR01 GROMMET, RADIATOR MOUNTING (BOTTOM) ONE
6 HCBF0616 M6X16mm FLANGE HEAD BOLT (2 REQ’D)
7 HCWF1478 FLAT WASHER (2 REQ’D)
8 MCMUCL07 HOSE CLAMP (4 REQ’D)
9 FCKG0214 RADIATOR OVERFLOW HOSE, 22”
10 MCMUCL05 HOSE CLAMP FOR OVERFLOW HOSE
11 FCCS0043 LOUVER
12 HCPP0001 PUSH PIN - REMOVABLE
13 HCCN0000 5mm CLIP NUT
TOOL MCMUTL16 TOOL – RAD CAP REMOVAL
