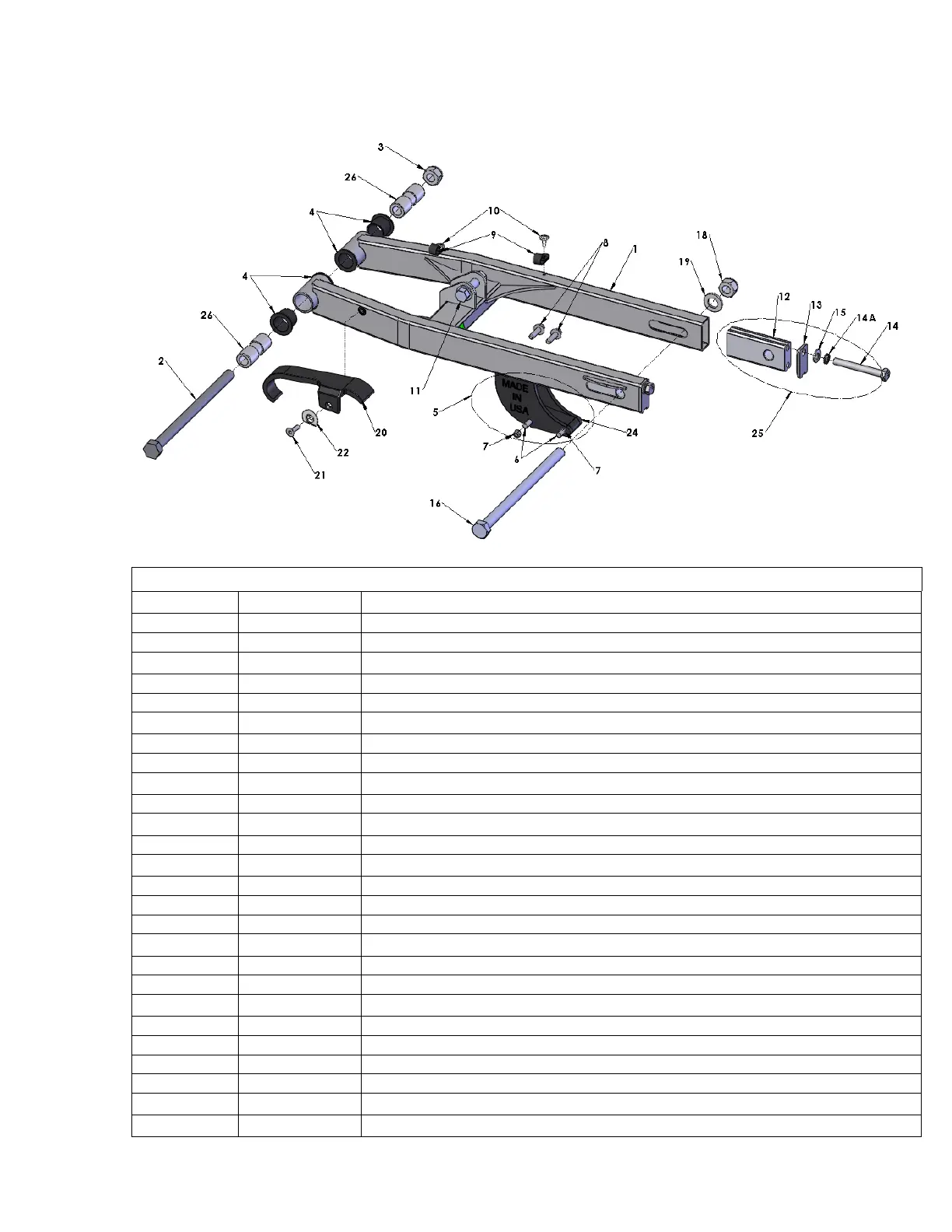

Parts – Swingarm Assembly
Swingarm
REF # PART # DESCRIPTION
1 GACS2017 SWINGARM
2 HCBH1203 M12 SWINGARM PIVOT BOLT
3 HCNL1201 M12 SWINGARM LOCK NUT
4 GCMU0001 SWINGARM BUSHING (4 REQ’D)
5 PAKG0001 CHAIN GUIDE ASSEMBLY COMPLETE
6 HCBFT640 M6X40mm FLAT HEAD SCREW (2 REQ’D)
7 HCNL0601 M6 LOCKNUT (2 REQ’D)
8 HCBF0620 M6X20mm FLANGE HEAD BOLT (2 REQ’D)
9 HCCC0000 CLAMP – BRAKE HOSE (2 REQ’D)
10 HCPP0832 FASTNER - HOSE CLAMP (2 REQ’D)
11 HCBF1040 M10X40mm LOWER SHOCK MOUNT BOLT
12 FCMU0203 WHEEL PULL
13 FCMU0202 WHEEL PULL ENDCAP
14 HCBH0810 M8X65mm WHEEL PULL BOLT
14A HCWL0801 8mm LOCK WASHER
15 HCWF0801 8mm WHEEL PULL WASHER
16 WCMU0016 REAR AXLE
18 HCNL1201 M12 AXLE NUT
19 HCWF1202 AXLE WASHER
20 GCMU0033 GUARD TOP SWINGARM – NO MOHAWK
21 HCFH0516 FLAT HEAD SCREW
22 GCMU0038 WASHER – RETAINING – SWINGARM GUARD
24 PCKG0004 BOTTOM CHAIN SLIDER
25 FAMU0005 WHEEL PULL ASSEMBLY (BLOCK, CAP, BOLT AND WASHER)
26 GCCS0001 SWINGARM PIVOT TUBE SPACER (2 REQ’D)
ACCESSORY PCMU0002BLK
CHAIN GUIDE OUTER – BILLET - BLACK
