TN760 Stratus Transportable Tactical Radio System
MT-4 Radio Systems
TECHNICAL NOTES
Page 1 of 4
LMRSALES@CODANCOMMS.COM
CODANCOMMS.COMTECHNICAL NOTE:
TN760, REV 1-0-0, © Aug 2016
CANADA/US +1 250 382 8268 | TOLL FREE +1 800 664 4066

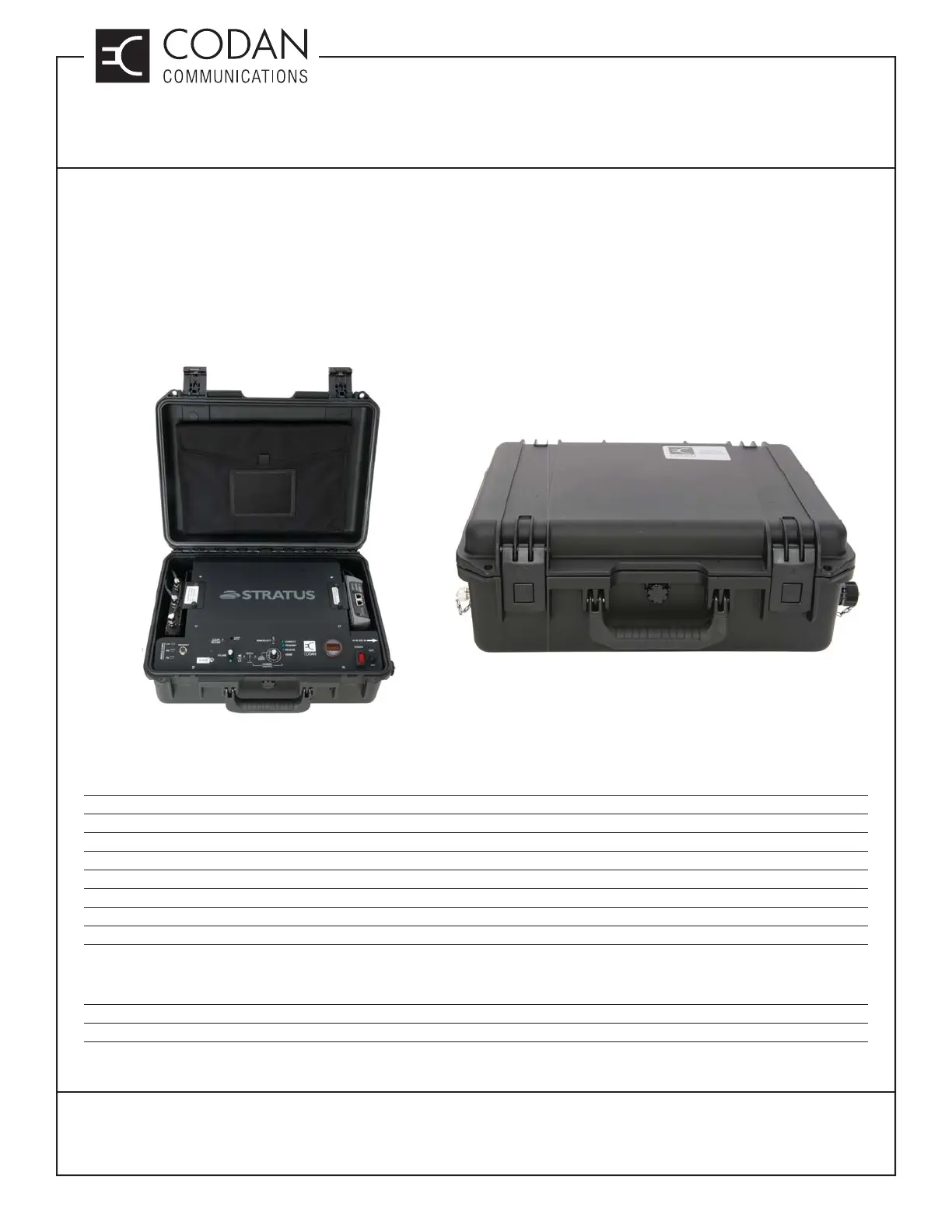

The Stratus transportable tactical radio system is mounted in a compact watertight polyethylene case. Any
Codan receiver, transmitter and 30 Watt (or 25 Watt) power amplifi er can be mounted inside for repeater or base
confi gurations. The Stratus supports analog and transparent P25 digital (clear or secure) repeat capability. The
Stratus repeater incorporates a Sierra Wireless cellular modem to backhaul P25 Digital Fixed Station Interface
(DFSI) compliant signalling across existing cellular 3G or 4G Long Term Evolution (LTE) infrastructure. The cellular
backhaul can be used to interconnect multiple Stratus repeaters / base stations to each other, or to P25 DFSI
compliant consoles. This interconnectivity is achieved via a Stratus controller which acts as an arbitrator for multiple
DFSI interconnects.
The Stratus tactical radio system includes the following:
• internal mounting frame for receiver, transmitter and 30 Watt (VHF/UHF) or 25 Watt (700/800 MHz) power amplifi er.
• soft grip handle and press and pull latches.
• external interface connectors for RF and power inputs.
• duplexer with internal “quick change” duplexer mounting capability.
• cellular modem with internal “quick change” cellular modem mounting capability.
• lightweight OTTO headset (A-HEADSET-01).
• 110/220 VAC (auto-switching) to 12 VDC external power supply (22A)
• front panel control interface
The current draw of the Stratus transportable system is:
Standby 750 mA ±10%
Transmit (Active) 7.0 A ±10%
