TN800 A-PNL-AUX96-3 Auxiliary Connector
MT-3/4 Radio Systems
TECHNICAL NOTES
Page 1 of 4
LMRSALES@CODANCOMMS.COM
CODANCOMMS.COMTECHNICAL NOTE:
TN800, REV 5-0-0, © Aug 2013
CANADA/US +1 250 382 8268 | TOLL FREE +1 800 664 4066

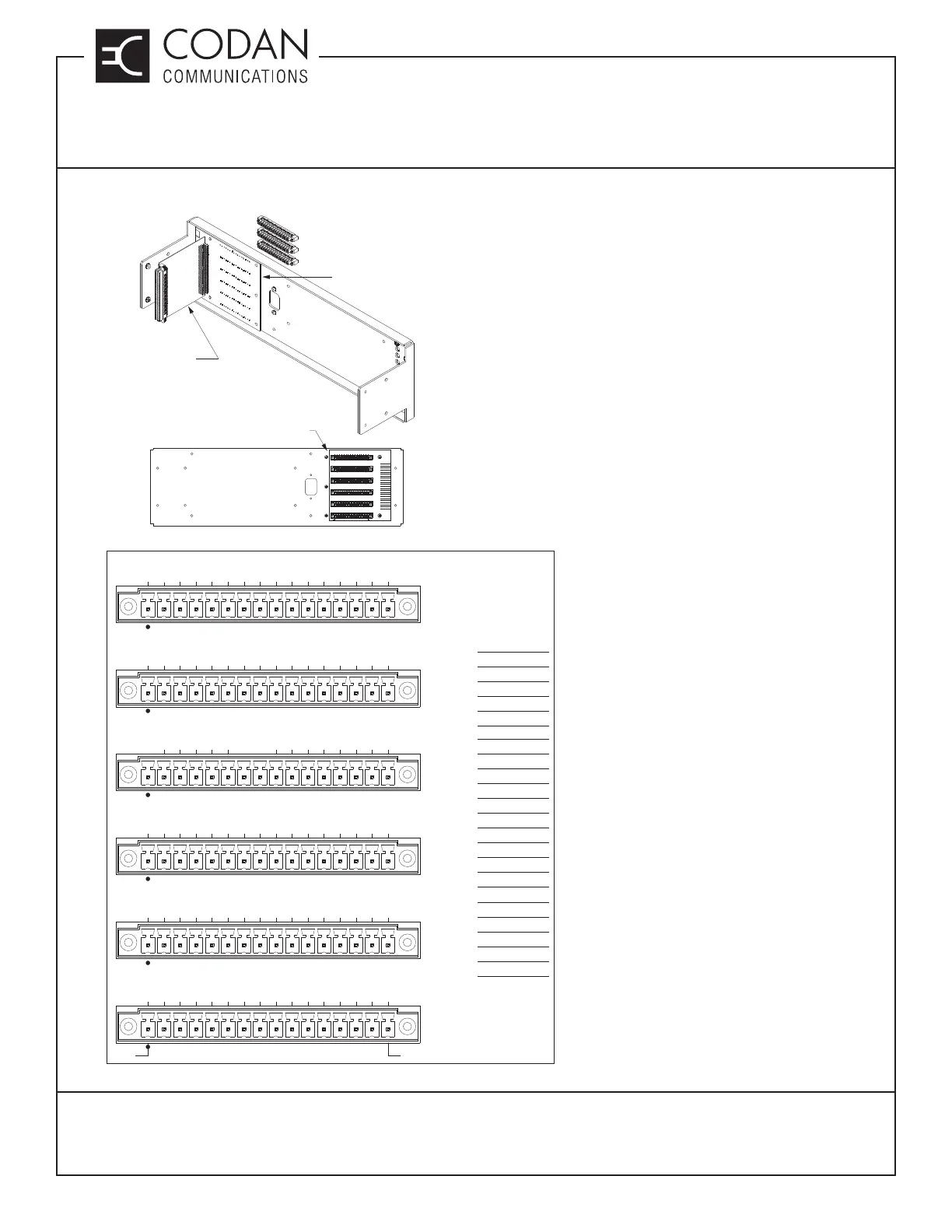

The A-PNL-AUX96-3 option provides convenient
access to all signals on the motherboard auxiliary
control connector. This is accomplished with two circuit
boards: the Terminal Block board and the Connector
board. The Terminal Block board mounts to the subrack
rear panel and has six 16 pin headers that mate with 16
position plug-in screw connectors. The plug-in screw
connectors use a clamping action to secure stranded or
solid conductor wires from 22 AWG to 16 AWG and have
locking screws to ensure the connector does not loosen
due to vibration. A label on the back of the subrack
rear panel lists the signals at their respective positions.
The Connector board is soldered to the Terminal Block
board and provides the interconnection between the
auxiliary control connector on the motherboard and the
Terminal Block board.
A close-up view of the auxiliary connector
label shows the short signal name for
each connection point. Defi nitions for
these signals can be found in the SR-
39-1 subrack manual. Extra General
Purpose Input / Output connectors
(GPIO) that can be used for diff erent
functions depending on the control card
are listed to the right of the connectors.
For example, the AC-3E audio control
card uses these lines for auxiliary audio
inputs / outputs and auxiliary COR /
PTT connections. The CI-PM-3 paging
modulator uses these signal lines for
connecting A/D select lines, 2-level and
4-level data, etc. The custom functions
of these connectors will be marked in the
blank space next to the signal name.
See Table 1 and Table 2 for a list of
connector names by control card and by
transmitter and receiver series.
J1
Tx A CSel D2
J2
Tx A CSel D0
Tx A CSel D1
Tx A CSel D3
Rx A CSel D0
Rx A CSel D1
Rx A CSel D2
Rx A CSel D3
Tx B CSel D0
Tx B CSel D1
Tx B CSel D2
Tx B CSel D3
Rx B CSel D0
Rx B CSel D1
Rx B CSel D2
Rx B CSel D3
J3
GPIO 1
GPIO 2
GPIO 3
GPIO 4
GPIO 5
GPIO 6
GPIO 7
GPIO 8
GPIO 9
GPIO 10
GPIO 11
GPIO 12
GPIO 13
GPIO 14
GPIO 15
GPIO 16
Ground
Ground
Ground
Ground
13.8 Vdc
13.8 Vdc
9.5 Vdc
9.5 Vdc
Rx A Sql Over
Rx A Mode
Rx A Disc LP O/P
Rx A Sql De-emp
Rx B Sql Over
Rx B Mode
Rx B Disc LP O/P
Rx B Sql De-emp
J4
GPIO 17
Tx A VSWR Fwd
Tx A VSWR Rev
Tx A Dir Mod
Tx A Sec/Clr
Tx A PTT Out
Rx A Sig Stren
Rx A Mute
GPIO 18
Tx B VSWR Fwd
Tx B Dir Mod
Tx B Sec/Clr
Tx B PTT Out
Rx B Sig Stren
J5
Tx B VSWR Rev
Rx B Mute
Tx A Bank Sel
Rx A Sec/Clr O/P
GPIO 19
Rx A 9.5V
Rx A 9.5V Mon
Rx A COR Rly N/C
Rx A Bank Sel
Tx B Bank Sel
Rx B Sec/Clr O/P
GPIO 20
Rx B 9.5V
Rx B 9.5V Mon
GPIO 21
Rx B Bank Sel
GPIO 22
GPIO 23
J6
Pin 1
Pin 16
Wire Sizes: 22 AWG Min, 16 AWG Max
GPIO 1
GPIO 2
GPIO 3
GPIO 4
GPIO 5
GPIO 6
GPIO 7
GPIO 8
GPIO 9
GPIO 10
GPIO 11
GPIO 12
GPIO 13
GPIO 14
GPIO 15
GPIO 16
GPIO 17
Tx A Bal I/P 1
Tx A PTT
Rx A Bal O/P 1
Rx A Bal O/P 2
Rx A COR
Rx A Disc O/P
Tx B Bal I/P 1
Tx B Bal I/P 2
Tx B PTT
Tx B Subt I/P 1
Rx B Bal O/P 1
Rx B Bal O/P 2
Rx B COR
Rx B Disc O/P
Tx A Subt I/P 1
Tx A Bal I/P 2
GPIO 18
GPIO 19
GPIO 23
GPIO 22
GPIO 21
GPIO 20
CONNECTOR
BOARD
SUBRACK REAR VIEW
PLUG IN SCREW
CONNECTORS
A-PNL-AUX96-3
HEADERS AND LABEL
TERMINAL
BLOCK BOARD
J1
Tx A CSel D2
J2
Tx A CSel D0
Tx A CSel D1
Tx A CSel D3
Rx A CSel D0
Rx A CSel D1
Rx A CSel D2
Rx A CSel D3
Tx B CSel D0
Tx B CSel D1
Tx B CSel D2
Tx B CSel D3
Rx B CSel D0
Rx B CSel D1
Rx B CSel D2
Rx B CSel D3
J3
GPIO 1
GPIO 2
GPIO 3
GPIO 4
GPIO 5
GPIO 6
GPIO 7
GPIO 8
GPIO 9
GPIO 10
GPIO 11
GPIO 12
GPIO 13
GPIO 14
GPIO 15
GPIO 16
Ground
Ground
Ground
Ground
13.8 Vdc
13.8 Vdc
9.5 Vdc
9.5 Vdc
Rx A Sql Over
Rx A Mode
Rx A Disc LP O/P
Rx A Sql De-emp
Rx B Sql Over
Rx B Mode
Rx B Disc LP O/P
Rx B Sql De-emp
J4
GPIO 17
Tx A VSWR Fwd
Tx A VSWR Rev
Tx A Dir Mod
Tx A Sec/Clr
Tx A PTT Out
Rx A Sig Stren
Rx A Mute
GPIO 18
Tx B VSWR Fwd
Tx B Dir Mod
Tx B Sec/Clr
Tx B PTT Out
Rx B Sig Stren
J5
Tx B VSWR Rev
Rx B Mute
Tx A Bank Sel
Rx A Sec/Clr O/P
GPIO 19
Rx A 9.5V
Rx A 9.5V Mon
Rx A COR Rly N/C
Rx A Bank Sel
Tx B Bank Sel
Rx B Sec/Clr O/P
GPIO 20
Rx B 9.5V
Rx B 9.5V Mon
GPIO 21
Rx B Bank Sel
GPIO 22
GPIO 23
J6
Pin 1
Pin 16
Wire Sizes: 22 AWG Min, 16 AWG Max
GPIO 1
GPIO 2
GPIO 3
GPIO 4
GPIO 5
GPIO 6
GPIO 7
GPIO 8
GPIO 9
GPIO 10
GPIO 11
GPIO 12
GPIO 13
GPIO 14
GPIO 15
GPIO 16
GPIO 17
Tx A Bal I/P 1
Tx A PTT
Rx A Bal O/P 1
Rx A Bal O/P 2
Rx A COR
Rx A Disc O/P
Tx B Bal I/P 1
Tx B Bal I/P 2
Tx B PTT
Tx B Subt I/P 1
Rx B Bal O/P 1
Rx B Bal O/P 2
Rx B COR
Rx B Disc O/P
Tx A Subt I/P 1
Tx A Bal I/P 2
GPIO 18
GPIO 19
GPIO 23
GPIO 22
GPIO 21
GPIO 20
A-PNL-AUX96-3
