TN792 Stratus Rapid Antenna
MT-4 Radio Systems
TECHNICAL NOTES
Page 2 of 2
LMRSALES@CODANCOMMS.COM
CODANCOMMS.COMTECHNICAL NOTE:
TN792, REV 2-0-0, © Jan 2019
CANADA/US +1 250 382 8268 | TOLL FREE +1 800 664 4066
The Stratus Rapid Antenna ANT-TACSYSTEM includes the following:
• custom built backpack.
• base unit with tensioning knobs and built-in mast.
• 3” end cap and cable hook adapter for connectiing the antenna.
• 9 steel rock pegs (25 cm / 9.8”) with green tops for securing antenna mast and guy wires.
• 3 sets of guy wires (7.5 m / 24.6 feet) for securing mast.
• tactical cable antenna (7.6 m / 25 feet).
Five diff erent tactical antennas with 25 feet (7.6m) of LMR 195 coaxial cable are available for the Stratus Rapid
Antenna:
Part Number Frequency Range Antenna Gain
ANT-TAC-VHF-06 138 - 174 MHz 2 dB
ANT-TAC-UHF-02 380 - 470 MHz 2 dB
ANT-TAC-UHF-03 450 - 520 MHz 2 dB
ANT-TAC-800-01 746 - 896 MHz 2 dB
ANT-TAC-800-02 806 - 960 MHz 2 dB
The Stratus
Rapid Antenna is 15” (38.1 cm) wide, 23” (58.4cm) high and 13” (33.0 cm) deep, and weighs 31 lbs.
(14.1 kg) in the custom backpack.

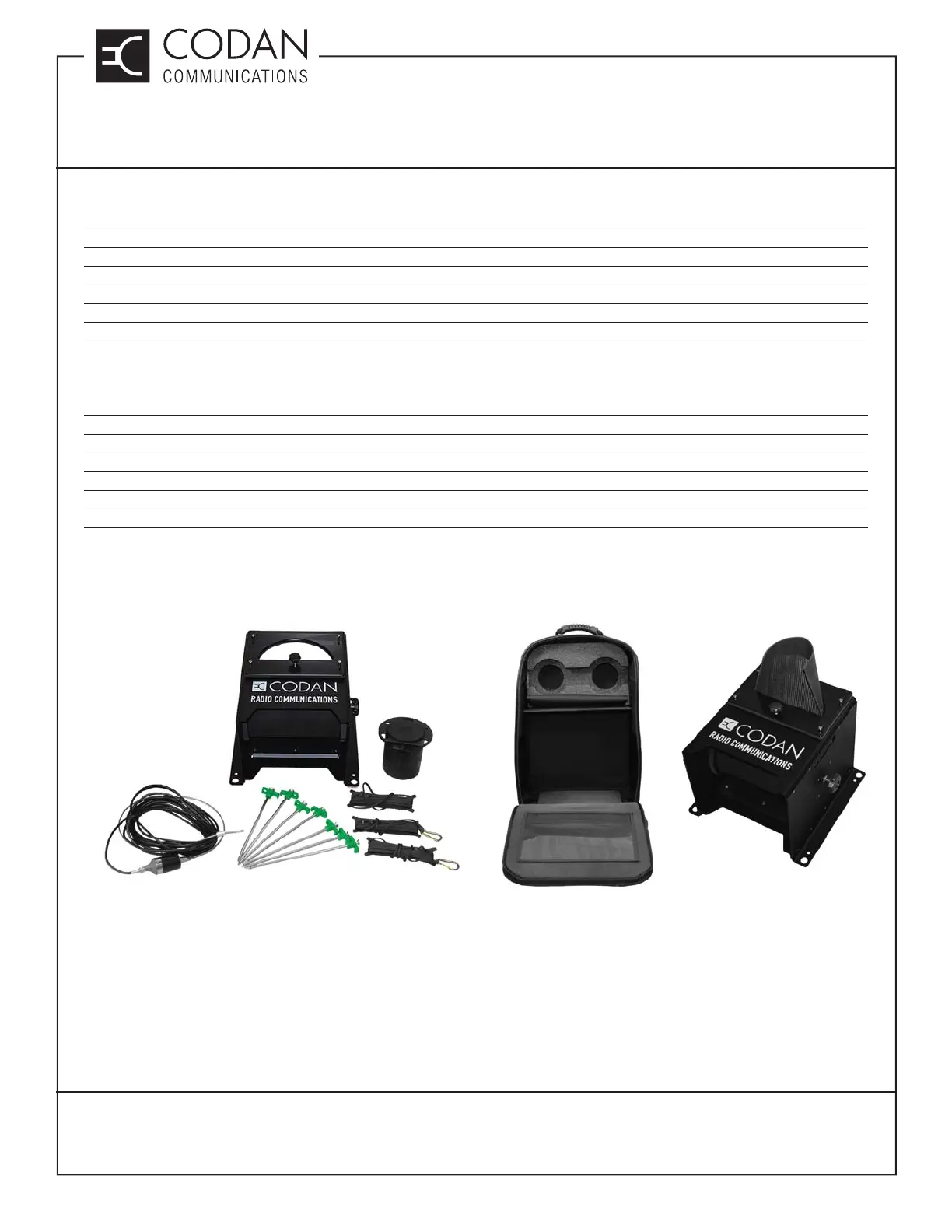

Stratus Rapid Antenna Kit Custom Backpack Base Unit
