TN760 Stratus Transportable Tactical Radio System
MT-4 Radio Systems
TECHNICAL NOTES
Page 3 of 4
LMRSALES@CODANCOMMS.COM
CODANCOMMS.COMTECHNICAL NOTE:
TN760, REV 1-0-0, © Aug 2016
CANADA/US +1 250 382 8268 | TOLL FREE +1 800 664 4066

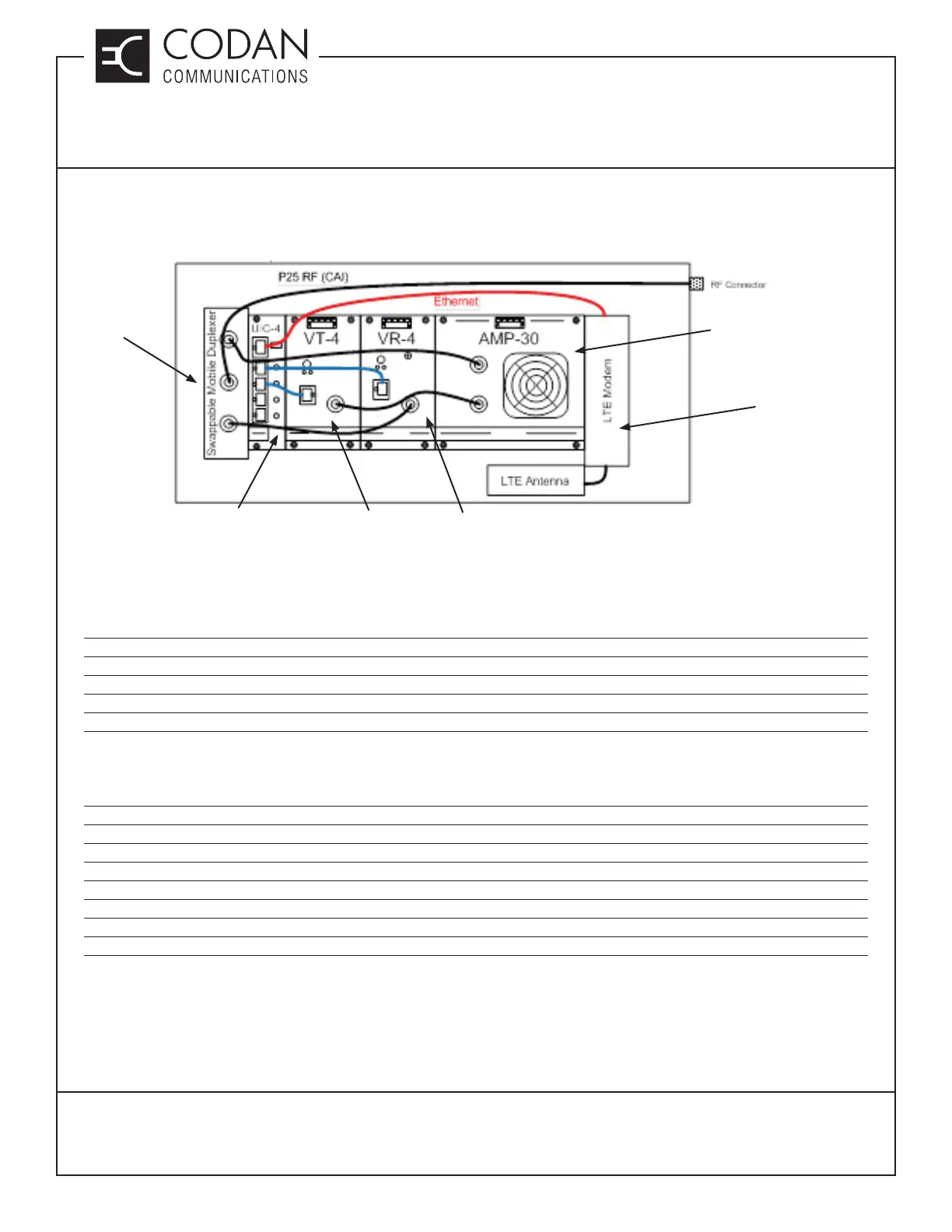

The Stratus case with the lid removed is shown in Figure 1. This shows how the receiver, transmitter, UIC, cel-
lular modem, duplexer and power amplifi er are mounted inside of the Stratus case.
Figure 1: Stratus case with case lid removed
The Stratus cellular modem is carrier specifi c and is also available with optional Wi-Fi capability The modems
operate on carriers and Wi-Fi as follows:
CI-MODEM-01 Telus / Bell / Rogers CI-MODEM-W1 Telus / Bell / Rogers (Wi-Fi capable)
CI-MODEM-02 AT&T CI-MODEM-W2 AT&T (Wi-Fi capable)
CI-MODEM-03 Verizon CI-MODEM-W3 Verizon (Wi-Fi capable)
CI-MODEM-04 International CI-MODEM-W4 International (Wi-Fi capable)
CI-MODEM-05 Sprint CI-MODEM-W5 Sprint (Wi-Fi capable)
The Stratus also has an optional polyethylene case (18.2” (46.2 cm) wide, 6.7” (17.0 cm) high and 13.4” (34.0 cm)
deep ) with slotted foam to house spare mounting plates for duplexers and antenna relays (up to 3):
STRATUS-DUPCASE-1 Duplexer and antenna relay carrying case (3 slots)
3702-63608124 Duplexer mounting plate
DUP-144-174EKHB VHF Duplexer, 144-174 MHz, ≥ 4.5 MHz separation
DUP-380-406EMEB UHF Duplexer, 380-406 MHz, ≥ 5.0 MHz separation
DUP-406-512EMEB UHF Duplexer, 406-512 MHz, ≥ 5.0 MHz separation
DUP-768-806EWAB UHF Duplexer, 768-806 MHz, ≥ 30 MHz separation
DUP-806-896EYAB UHF Duplexer, 806-896 MHz, ≥ 45 MHz separation
DUP-896-960EUCB UHF Duplexer, 896-960 MHz, ≥ 24 MHz separation
30 WATT POWER
AMPLIFIER
RECEIVER
TRANSMITTER
CELLULAR MODEM
DUPLEXER
UIC
