TN811 SM-3 System Regulator
MT-3/4 Radio Systems
TECHNICAL NOTES
Page 2 of 2
LMRSALES@CODANCOMMS.COM
CODANCOMMS.COMTECHNICAL NOTE:
TN811, REV 3-1-0, © Mar 2013
CANADA/US +1 250 382 8268 | TOLL FREE +1 800 664 4066
System Regulator Testing
The System Regulator module is designed with a convenient and easy test point built in to the front panel. This test
point allows a technician access to the DC supply and regulated voltages. Simply connect a standard Digital Volt
Meter (DVM) to the METER jacks on the front panel of the System Regulator as shown in Figure 1. Turn the rotary
switch to the desired position to measure the supply voltage, regulated voltage or audio output as shown in Table 1.
Note that the RSSI requires a carrier and the audio output requires an audio tone injected into the receiver.

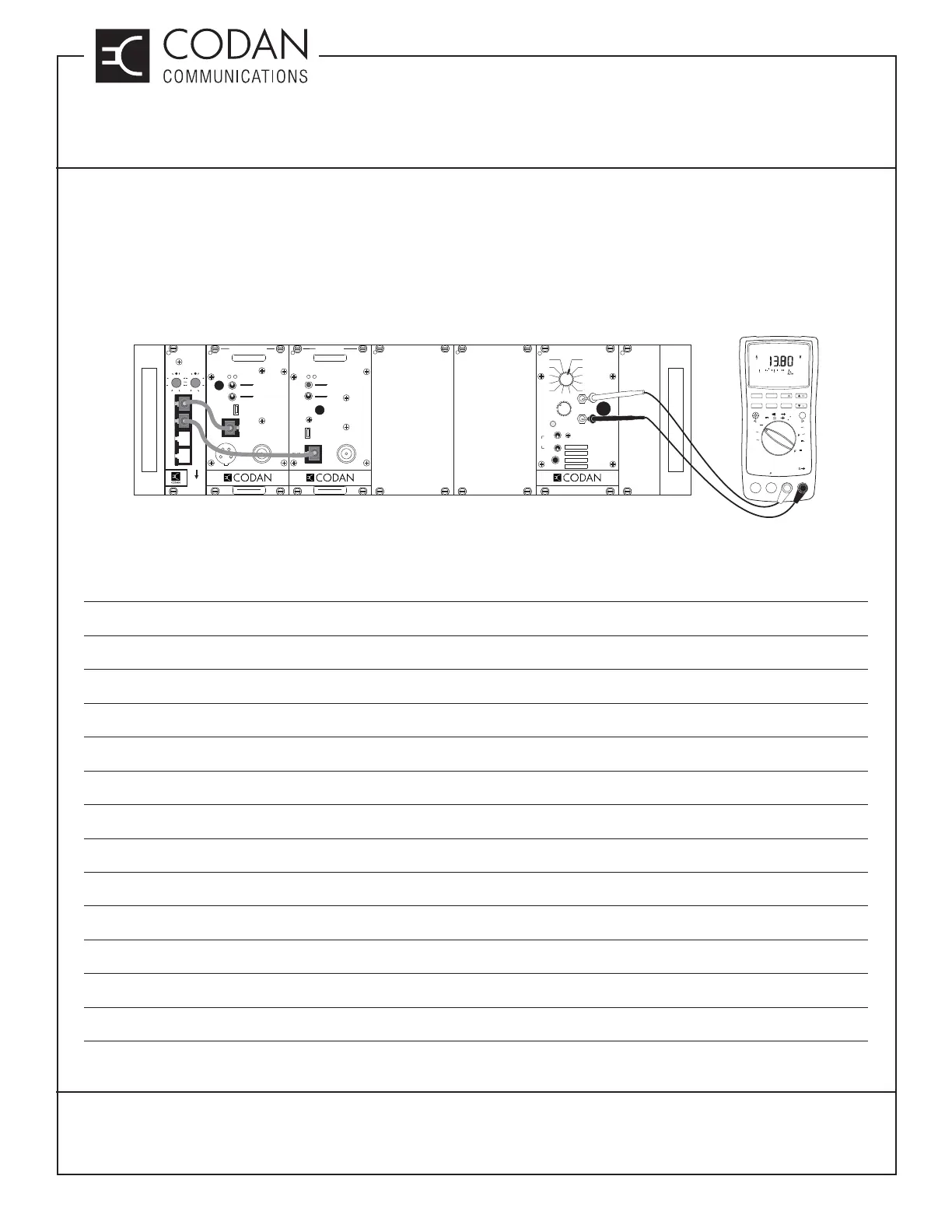

Figure 1: System Regulator Testing
Table 1: System Regulator Rotary Switch Functions
Position Function Parameter
1 Supply Voltage +10 Vdc to +17 Vdc (+13.8 Vdc nominal)
2 +9.5 Volts Regulated +9.5 Vdc (± 0.1 Vdc)
3 Rx A Audio Receiver A Audio (NOT Rx Balanced Output)
4 Rx A Carrier Strength 0 Vdc to +5.0 Vdc based on received signal strength
5 Rx B Audio Receiver B Audio (NOT Rx Balanced Output)
6 Rx B Carrier Strength 0 Vdc to +5.0 Vdc based on received signal strength
7 Rx C Audio Receiver C Audio (NOT Rx Balanced Output)
8 Rx C Carrier Strength 0 Vdc to +5.0 Vdc based on received signal strength
9 Rx D Audio Receiver D Audio (NOT Rx Balanced Output)
10 Rx D Carrier Strength 0 Vdc to +5.0 Vdc based on received signal strength
11 Rx E Audio Receiver E Audio (NOT Rx Balanced Output)
12 Rx E Carrier Strength 0 Vdc to +5.0 Vdc based on received signal strength
