TN152 Linked Repeater Networks
MT-3/4 Radio Systems
TECHNICAL NOTES
Page 4 of 4
LMRSALES@CODANCOMMS.COM
CODANCOMMS.COMTECHNICAL NOTE:
TN152, REV 1-0-0, © Jan 2019
CANADA/US +1 250 382 8268 | TOLL FREE +1 800 664 4066
Some linked repeater confi gurations may also require multiple switched links in order to form a “chain” of repeater
links as shown in Figure 4. This requires another set of frequencies and another transceiver pair, but can allow
more customizing of the confi guration.

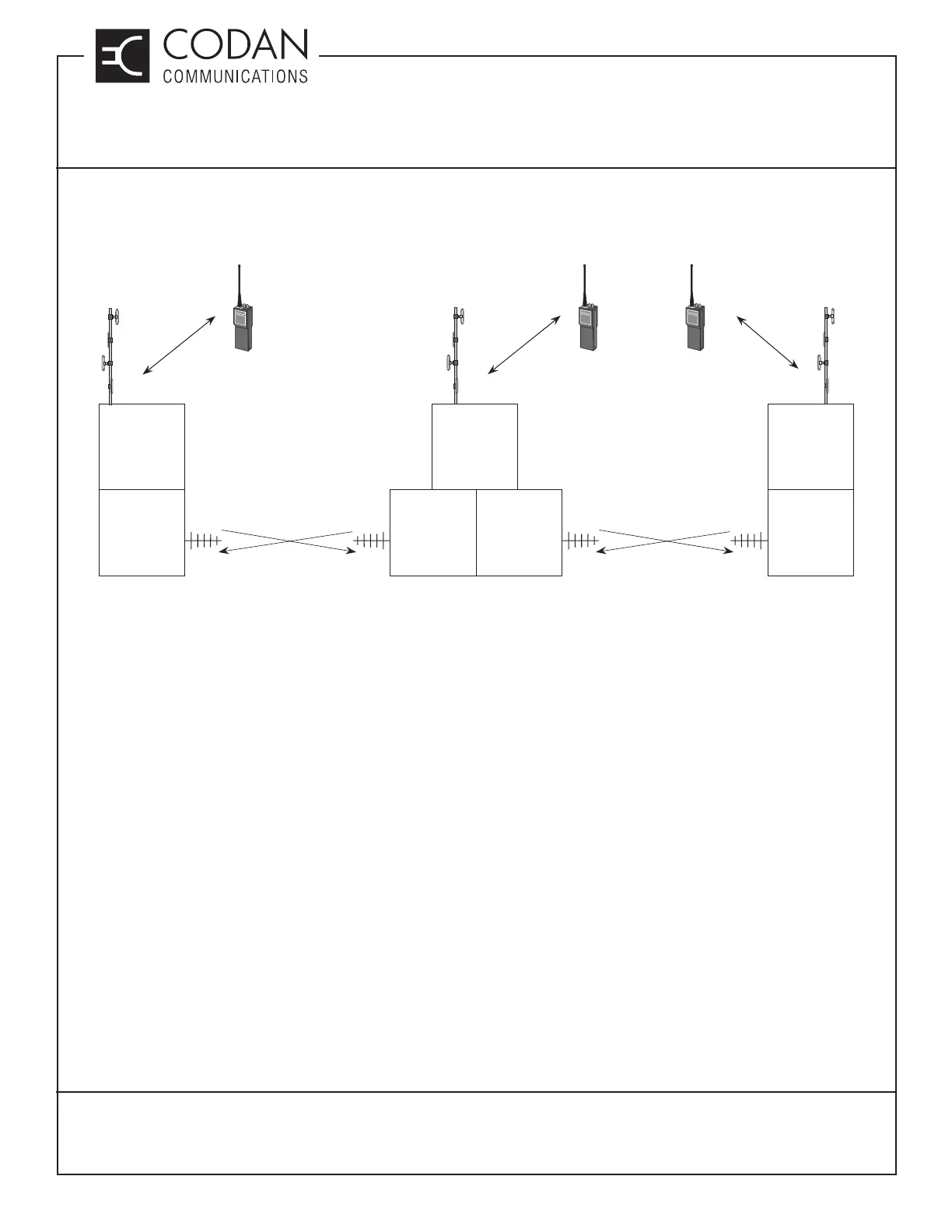

Figure 4: Repeater Network with Multiple Links
Site 2 Site 3
Drop
Switched link
Tx-F3
Rx-F4
Tx-F10
Rx-F9
Drop
Switched link
Tx-F9
Rx-F10
Tx-F5
Rx-F6
To / From
Subscribers
To / From
Subscribers
Switched link
Tx-F7
Rx-F8
Switched link
Tx-F8
Rx-F7
Drop
Tx-F1
Rx-F2
Site 1
To / From
Subscribers
