TN490 19” Rack Mount High Power Amplifi ers
MT-3/4 Radio Systems
TECHNICAL NOTES
Page 2 of 4
LMRSALES@CODANCOMMS.COM
CODANCOMMS.COMTECHNICAL NOTE:
TN490, REV 2-0-0, © Aug 2016
CANADA/US +1 250 382 8268 | TOLL FREE +1 800 664 4066
VHF Rear Panel Mount

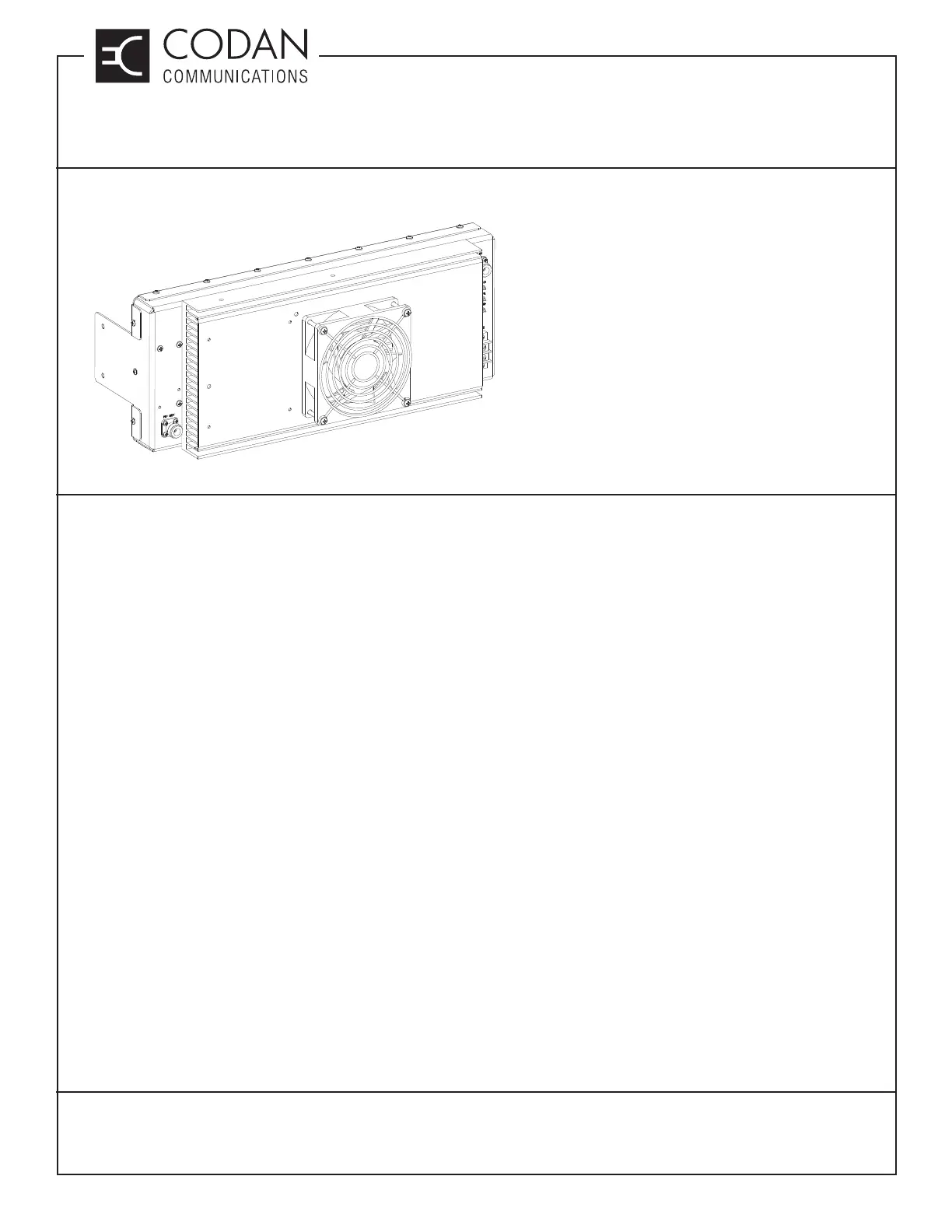

The VHF power amplifi er is available in both a 19”
rack mount package and a rear panel mount that
attaches to the back of the Codan subrack. The
rear panel mount cannot be used with an A-PNL-
AUX96-3 Auxiliary Connector or the rear panel
mount AC to DC or DC to DC Power Supplies.
The rear panel mount amplifi er does not come
with the LED indicators but does maintain the
ALARM, CTRL and SH/D pins.
Models Available
AMP-140-110-D1P Rear Panel Mount, 60 - 110 Watts continuous duty, 136 - 144 MHz
AMP-140-110-D1R Rack Mount, 60 - 110 Watts continuous duty, 136 - 144 MHz
AMP-148-110-D1P Rear Panel Mount, 60 - 110 Watts continuous duty, 144 - 152 MHz
AMP-148-110-D1R Rack Mount, 60 - 110 Watts continuous duty, 144 - 152 MHz
AMP-157-110-D1P Rear Panel Mount, 60 - 110 Watts continuous duty, 152 - 162 MHz
AMP-157-110-D1R Rack Mount, 60 - 110 Watts continuous duty, 152 - 162 MHz
AMP-168-110-D1P Rear Panel Mount, 60 - 110 Watts continuous duty, 162 - 174 MHz
AMP-168-110-D1R Rack Mount, 60 - 110 Watts continuous duty, 162 - 174 MHz
AMP-428-100-D1R Rack Mount, 100 Watts continuous duty, 406 - 450 MHz
AMP-481-100-D1R Rack Mount, 100 Watts continuous duty, 450 - 512 MHz
AMP-817-080-D1R Rack Mount, 80 Watts continuous duty, 768 - 869 MHz
