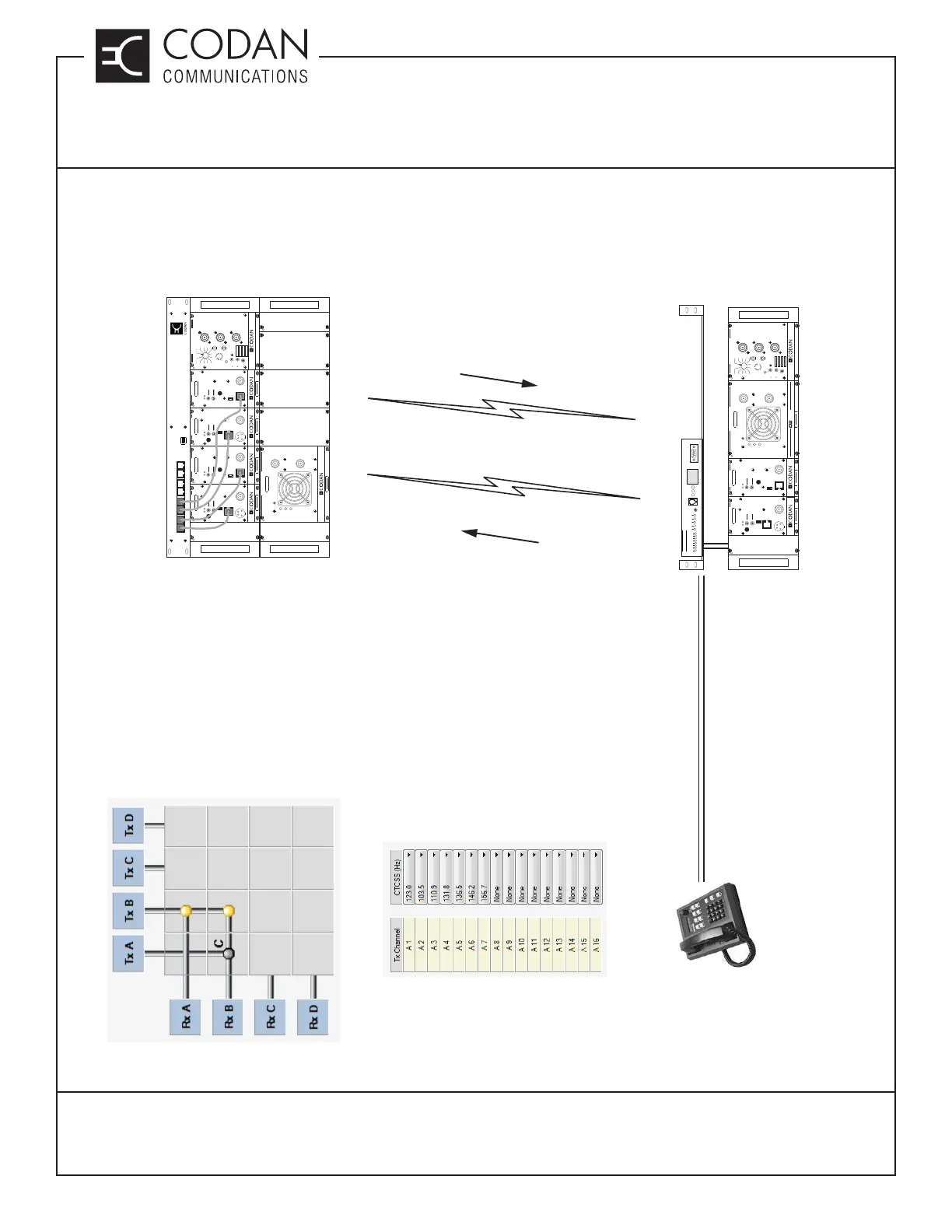

Figure 7: Example Multiple Link Controller System with analog links
2
1
5
4
3
67
8
11
10
9
FUNCTION
12
SYSTEM REGULATOR
MADE IN CANADA
VOL METER
+
-
ON
OFF
SPKR
INT
EXT
EXT
SPKR
ANTENNA A
RX A
TX A
TRANSMITTER
CNTL
BUS
MIC RF OUT
AD
ANALOG
DIGITAL
NORM
OFF
KEY TX
MICMODE
REF
IN
USB
FREQUENCY (MHz)
MADE IN CANADA
MODEL # CODE
RECEIVER
NORM
SQ. DISABLE
OFF
CNTL
BUS
AD
RF NI
REF
IN
USB
FREQUENCY (MHz)
MADE IN CANADA
MODEL # CODE
ANALOG AUDIO INTERFACE
TELEX DSP-223 TONE
REMOTE ADAPTER
TRANSMITTER
CNTL
BUS
MIC RF OUT
AD
ANALOG
DIGITAL
NORM
OFF
KEY TX
MICMODE
REF
IN
USB
FREQUENCY (MHz)
MADE IN CANADA
MODEL # CODE
RECEIVER
NORM
SQ. DISABLE
OFF
CNTL
BUS
AD
RF NI
REF
IN
USB
FREQUENCY (MHz)
MADE IN CANADA
MODEL # CODE
TRANSMITTER
CNTL
BUS
MIC RF OUT
AD
ANALOG
DIGITAL
NORM
OFF
KEY TX
MICMODE
REF
IN
USB
FREQUENCY (MHz)
MADE IN CANADA
MODEL # CODE
RECEIVER
NORM
SQ. DISABLE
OFF
CNTL
BUS
AD
RF NI
REF
IN
USB
FREQUENCY (MHz)
MADE IN CANADA
MODEL # CODE
RX & TX INTERCONNECT PORTS
TXA RXA TXB RXB TXC RXC TXD RXD
USB
MULTIPLE LINK CONTROLLER - G2
POWER AMPLIFIER
TX
G/F
VSWR
RF OUTPUT
RF INPUT
PWR CTRL
FREQUENCY (MHz)
MADE IN CANADA
MODEL # CODE
2
1
5
4
3
67
8
11
10
9
FUNCTION
12
SYSTEM REGULATOR
MADE IN CANADA
VOL METER
+
-
ON
OFF
SPKR
INT
EXT
EXT
SPKR
ANTENNA A
RX A
TX A
The DSP-223 keys up the UHF Base
Station Transmitter in Analog Mode.
The UHF Transmitter will transmit
different CTCSS tones to the
UHF Receiver at the High Site.
The UHF Receiver (RXB) Receives
one of multiple different CTCSS tones
and changes the channel of the
VHF Transmitter (TXA) to a corresponding
channel with the same CTCSS tone.
This VHF transmitter goes out to different
repeaters all on the same receive
frequency, but with different CTCSS tones.
The UHF Receiver (RXB) also keys up the
UHF Transmitter (TXB) to repeat the signal.
ANALOG LINK
ANALOG LINK
The UHF Transmitter (TXB) Transmits
the received VHF and UHF signals back
to the UHF Base Station Receiver
and other UHF stations.
The Multiple Link Controller is
programmed to change
VHF Transmitter (TXA) channels
based on CTCSS.
POWER AMPLIFIER
TX
G/F
VSWR
RF OUTPUT
RF INPUT
DANIELS
ELECTRONICS LTD.
PWR CTRL
FREQUENCY (MHz)
MADE IN CANADA
MODEL # CODE
TELEX
PROGRAMMING PORT
DSP-223
PTT IC
HANDSET
POWER PTT MONITOR
FUNCTION
C
TCSS
LINE RX
LINE TX +
RADIO TX +
RADIO RX
LINE TX
LINE RX
RADIO TX
RADIO RX
CTCSS
RADIO TX -
G
ROUND
LINE TX -
ANALOG TONE REMOTE
CONSOLE
ANALOG 2 OR 4 WIRE AUDIO AND TONES
(LEASED TELEPHONE LINES)
UHF TX = TBD MHz / Selectable CTCSS
UHF RX = TBD MHz / CTCSS TBD Hz
TXA Mutes RXA + Add Simplex Unmute Delay (250ms) to TX
TXA mutes RXA with Simplex Unmute Delay.
VHF TXA = TBD MHz / Selectable CTCSS
VHF RXA = TBDMHz / CTCSS TBD Hz
VHF TXB = TBD MHz / CTCSS TBD Hz
VHF RXB = TBD MHz / CTCSS TBD Hz
UHF TXC = TBD MHz / CTCSS TBD Hz
UHF RXC = TBD MHz / CSQ
