The Stratus Controller GUI shows the layout of the Stratus Controller system as a tree. Real-Time Site Monitoring
is available through the GUI that can display frequently updated (< 5 seconds) system status as shown in Figure
4. The Stratus Controller GUI also has General purpose I/O (4 digital, 4 analog) and voltage monitoring capability
for each radio site.

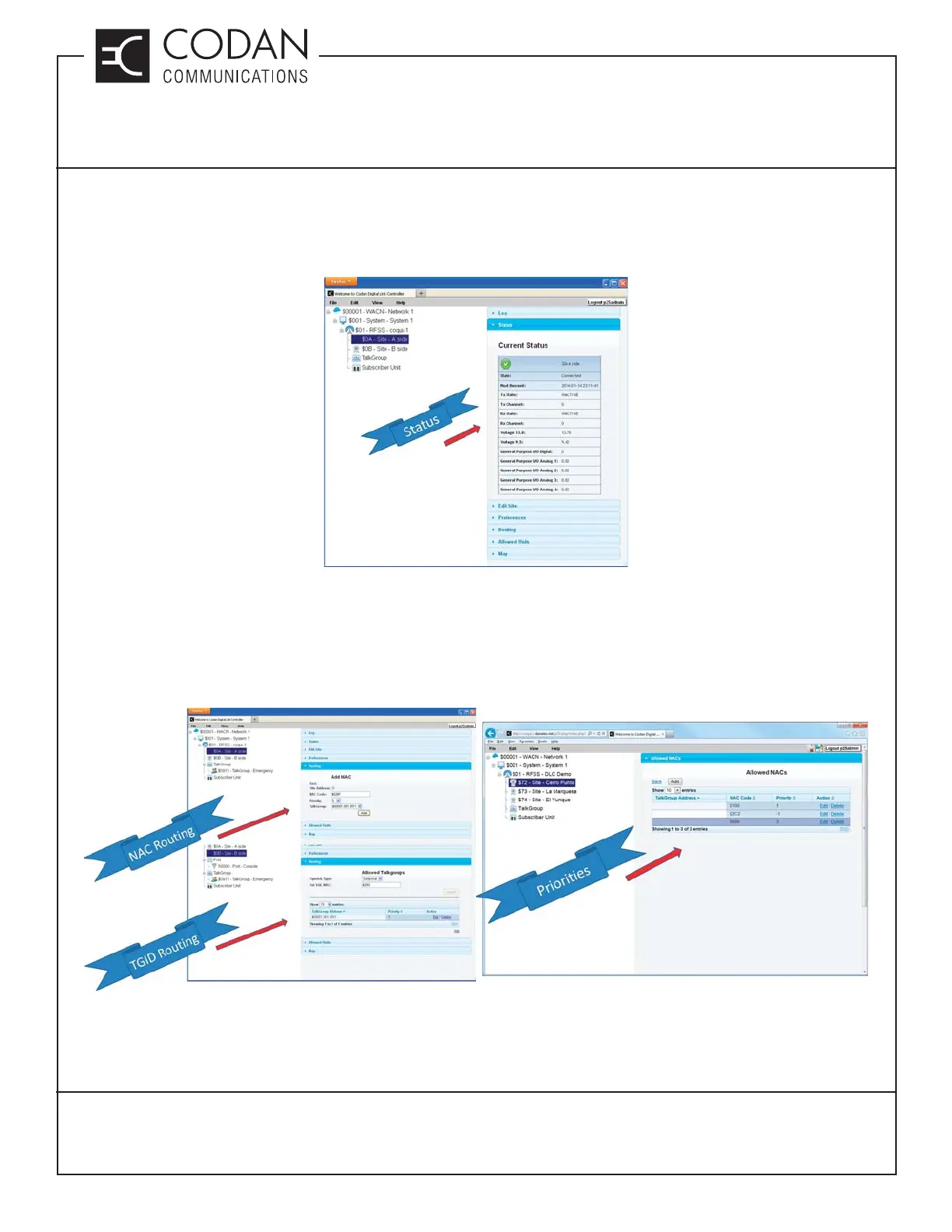

Figure 4: Stratus Controller GUI Status
The Stratus Controller GUI allows for NAC (Normal Squelch) OR Talk Group ID (Selective Squelch) routing,
confi gurable at each site as shown in Figure 5. Priorities can also be set per site, for each NAC or TGID, to allow
diff erent users or groups higher or lower routing priority if a signaling confl ict occurs. See Figure 6.
Figure 5: Stratus Controller GUI NAC and TGID Routing Figure 6: Stratus Controller GUI Priorities
