The notification/title/tab bar
The notification, title or tab bar is located at the top of the screen and is used to display useful
information based on the current screen being displayed.

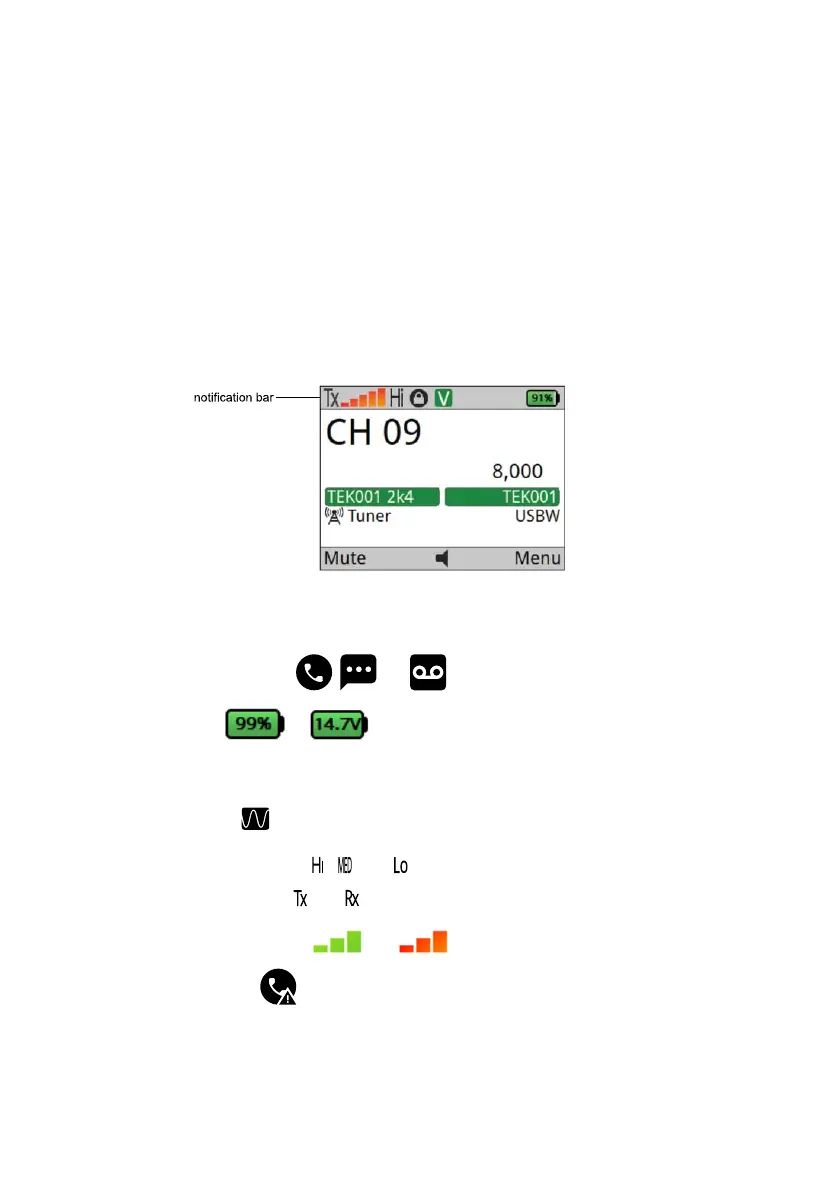

Notification bar
The notification bar is shown on the Operational screen (page 19), it displays the state of several
of the radios key functions.
Some common notification bar icons include:
• Call type indicator , and for example.
• Battery or .
• Mute type indicator, refer to the Select mute type (page 26) table for details of the
various mute states.
• Scanning .
• Transmission power , , and .
• Receive/Transmit and indicator.
• Rx/Tx level indicator and .
• Missed Calls .
