Code Blue CB 2 Series - Installation Instructions; Tools Needed

Code Blue
• 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com
page 11 of 43 GU-149-Z1
CB 2 Series
Administrator Guide
Important Notes:
Getting Started
EIA/TIA, ANSI, CSA and BICSI cabling or similar standards shall be adhered to
for proper operation of Code Blue communication devices connected to
copper or fiber infrastructures communications cable and electrical cable in
the same conduit is not an acceptable installation and shall not be supported.
Analog phones require a minimum of 23mA for proper operation (26-29mA
recommended).
Each analog speakerphone requires its own phone line or PBX extension.
Multiple units shall not be supported.
Speakerphones require programming before operation. Consult the
speakerphone’s Administrator Guide for instructions.
If you are installing IP speakerphones, please read the appropriate manuals
and consult with your Network Administrator.
Size electrical wiring based on length of run.
5 Installation Instructions

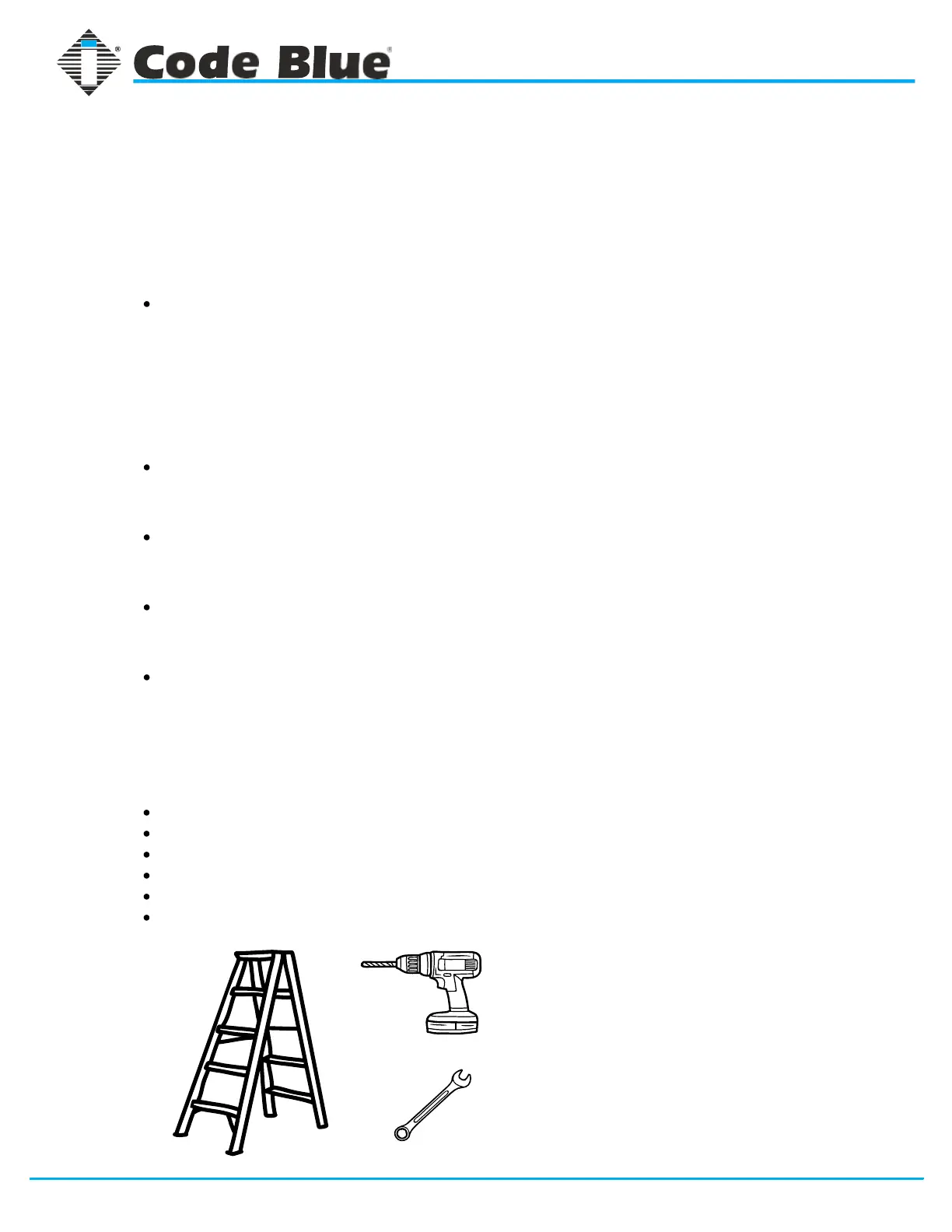

Tools Needed
All CB 2-s Units:
Drill
Drill bit (5/8” Masonry bit for concrete; 1/2” standard bit for wood)
3/8” Hex head driver bit (Security Bit)
Level
3/8” Socket set
Ladder - For remote audio paging or remote beacon/strobe only
