6 Alternative Mounting Options
CB 2 Series
Administrator Guide
Pole Mounting Kit Installation Instructions
THREAD MOUNTING STRAPS THROUGH SLOTS
Thread mounting straps(4) through slots on pole mount bracket(1).
HOLD BRACKET TO POLE
Set the height of the bracket(1) so that the speakerphone push button(s) on the unit will
be at desired height (please check with local codes for ADA compliance).
BAND THE BRACKET TO THE POLE AT DESIRED HEIGHT
To eliminate waste, pull band(4) from carton as needed. With ears of buckle(5) away
from operator, slide the buckle on the banding. Lace banding around the object being
clamped and again through buckle.
Bend end of band under buckle.
Slide band into banding tool nose slot.
When maximum tension has been reached, roll tool over buckle. At same time reversing
handle carefully approximately ¾ turn to avoid breakage. The band that is released will
be used in the bend and therefore there is no loss of tension.
Lift cutter lever and band will be cut to correct length. While holding the stub of the
band with your thumb, hammer flat over bridge of buckle.
Complete application by hammering the buckle ears over the stub.

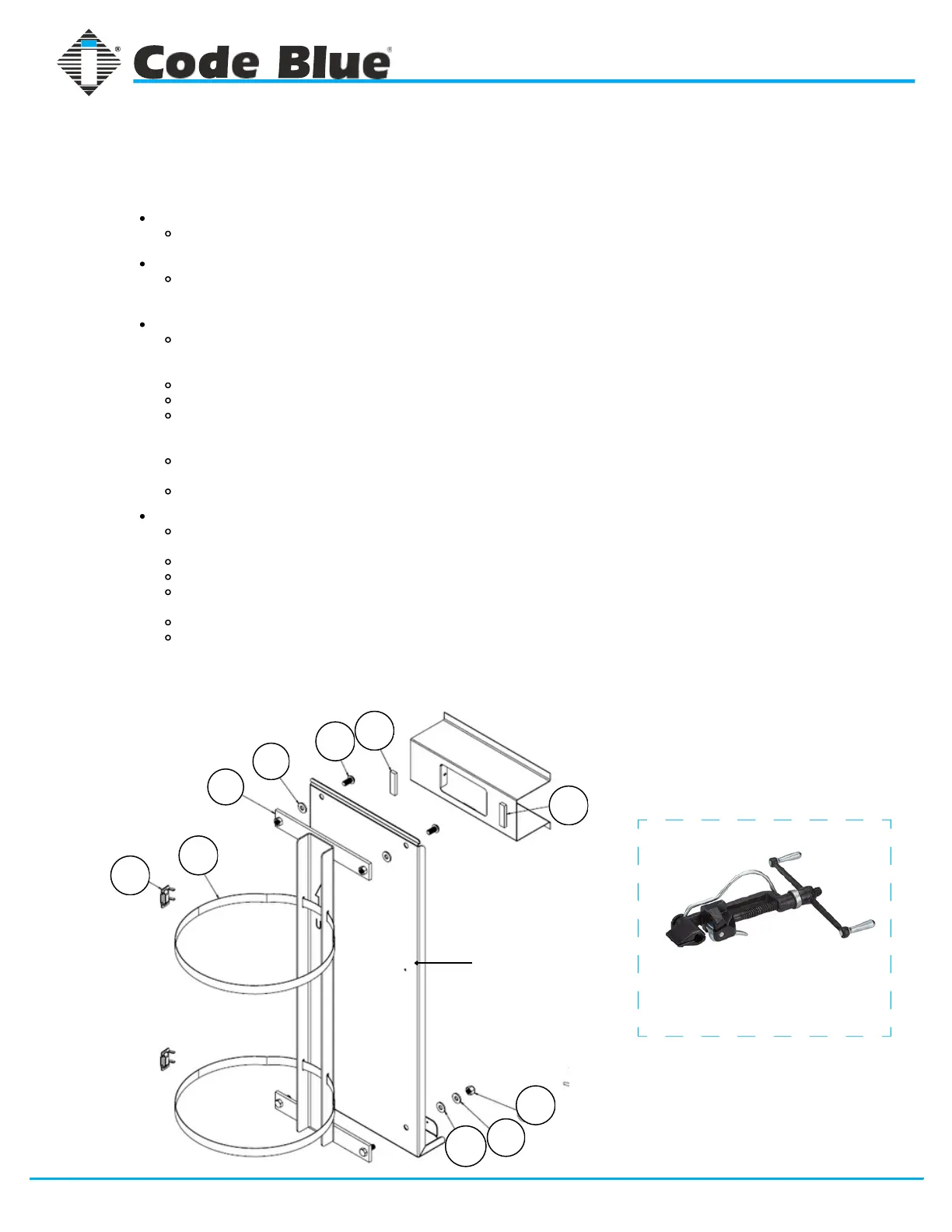

ATTACH ENCLOSURE TO BRACKET
Align & place the back plate of the unit over the 2 studs located on the bottom of the
pole mount bracket.
First place a rubber washer(2), followed by a steel washer(3) over each stud.
Secure in place with a nylock nut(6).
Place a button head(7) hex drive screw through each top hole in the back plate,
followed by a rubber washer(2) between the back plate and the pole mount bracket(1).
Tighten the button head hex drive screws to secure in place.
Prior to re-attaching the front cover of the unit, apply two pieces of foam(8) to the
back of the strobe light bracket as shown below in order to prevent the unit from
rattling when finished.
IMPORTANT NOTE: Minimum Pole Diameter: 4.0"
