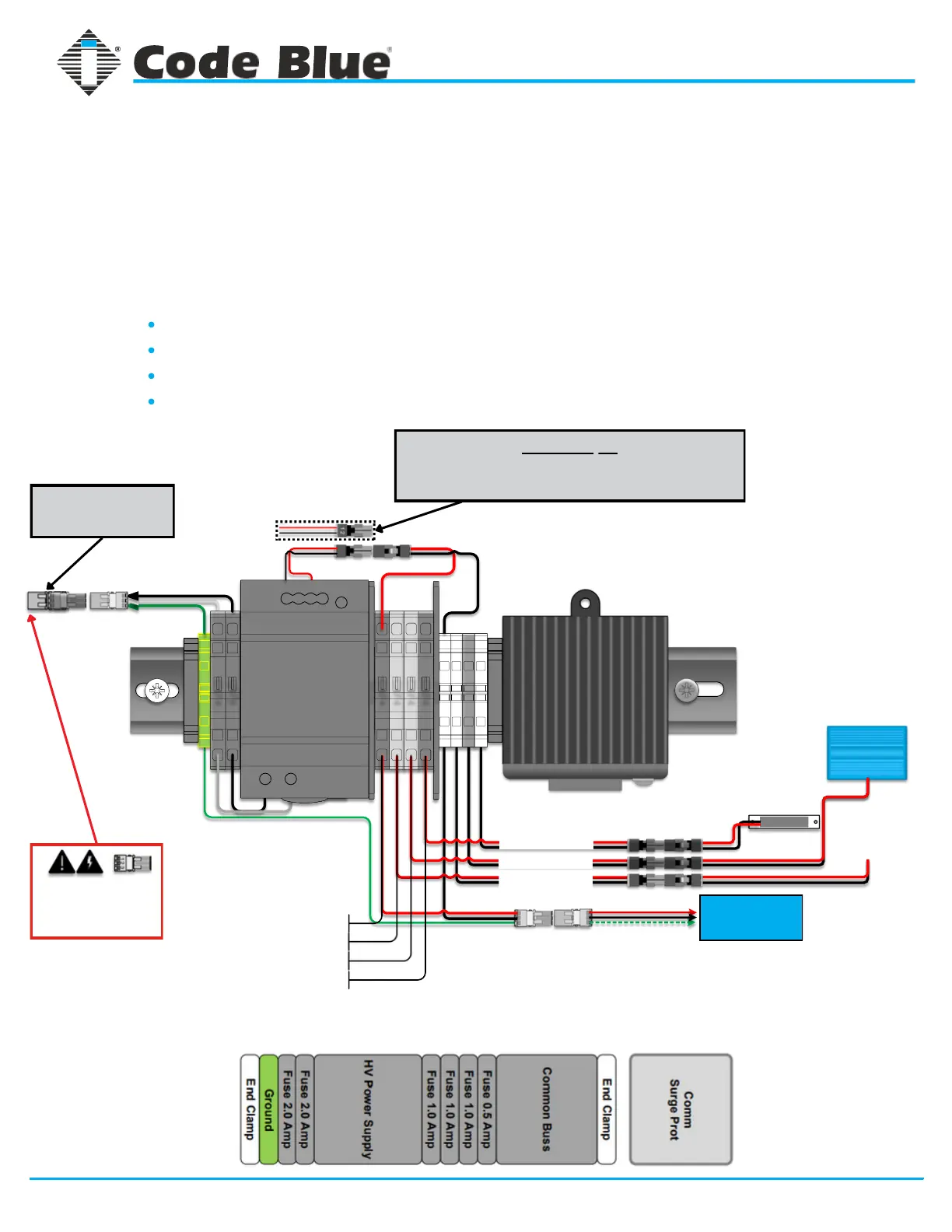

Code Blue CB 2 Series - Wiring Diagrams; CB 2-A & CB 2-E 24-277 V AC DIN Rail Power System

Mating connector
supplied for source
termination by
qualified technician.
24V AC Input
Customer supplied 24V AC harness to be used
when 24V AC incoming power is present.
85-277V AC Input
Faceplate
Speakerphone
Code Blue
• 259 Hedcor Street • Holland, MI 49423 USA • 800.205.7186 • www.codeblue.com
page 31 of 43 GU-149-Z1
11 WIRING DIAGRAMS
CB 2 Series
Administrator Guide
CB 2-a & CB 2-e 24-277V AC DIN Rail Power System
For installations with 24-277V AC incoming power on site. Provides
flexibility for future power updates compared to the 24V AC only option.
Used in the following configurations:
Standard CB 2-a - No Cellular or Audio Paging Options
Standard CB 2-e - No Cellular or Audio Paging Options
CB 2-a w/ Cellular Communication
CB 2-e w/ Cellular Communication
DIN Rail Layout
1
LED Faceplate Light
Beacon Strobe
Wireless Comm.
Device
Meanwell
HDR-60-
24
1 2 3
1 21 21 2
2 12 12 1
1 2 3
CXF4 CXF4
CXSG2. 5
CA702
CA702 CXS2. 5 CXS2. 5 CXS2. 5 CXS2. 5
PPCX4
CXF4 CXF4 CXF4 CXF4
PPCX 4
Fused GMA 1 Amp Fast Blow
Fused GMA 1 Amp Fast Blow
Fused GMA 1 Amp Fast Blow
Fused GMA 0.5 Amp Fast Blow
3 2 1
3 2 1
