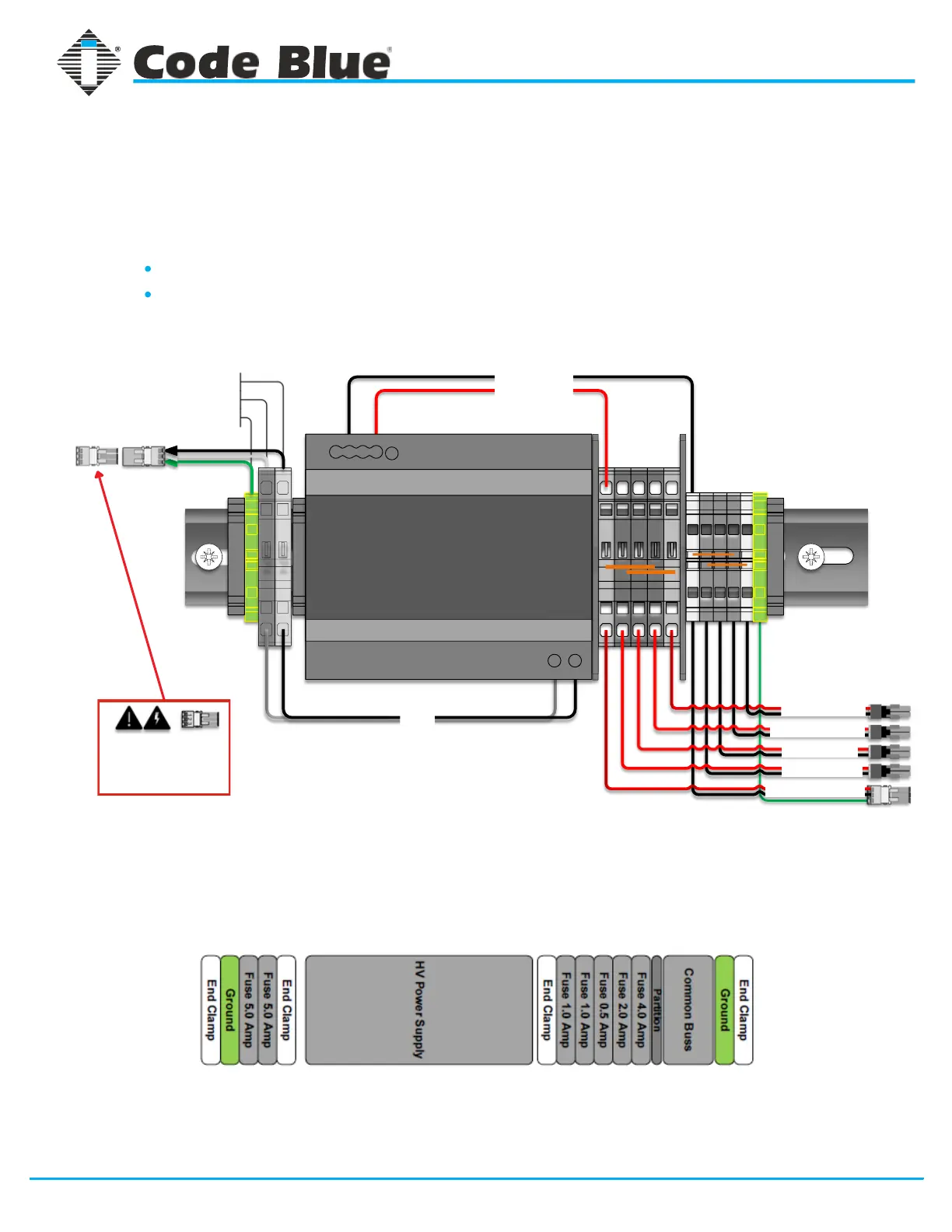

CB 2-ap Audio Paging Standard DIN Rail Wiring
DIN Rail Layout
24VDC
C
X
S
2.
5
C
X
S
2.
5
C
X
S
2.
5
C
X
S
2.
5
C
X
S
2.
5
C C C C C
X X X X X
F F F F F
4 4 4 4 4
1 2 3
AC Incoming Hot, Fused @ 5.0 amps
AC Incoming Neutral Fused @ 5.0 amps
Ground, Also ground for the DIN RAIL / Enclosure
V- V- V+ V+
HDR-150-24
Input 85 ~ 264VAC, 47 ~ 63Hz, (3A ~ 1.6A)
Output 24V, 5.31 ⎓ 6.25A (127 ⎓ 150 watts)
N L
CA702
CXF4 CXF4
CXSG2.5
CA702
CA702
CXSG2.5
PPCX4
PPCX4
1 2 1 2 1 2 1 2
3 2 1
Wireless Comm. Device
Faceplate Speakerphone
Beacon Strobe
Faceplate Light
DC Audio Amp
AC
Mating connector
supplied for source
termination by
qualified technician.
Designed to support 24VDC @ MAX
127 watts(5.1 Amps) at start up
For installations with 100-240V AC incoming power on site.
Used in the following configurations:
Standard CB 2-ap - No Cellular Communication
CB 2-ap with Cellular Communication
