Locate Volume Adjustment Knob on Paging Amp - See location in below photo
Adjust Volume to Desired Level - By turning the knob clockwise or counter
clockwise, this will increase or decrease the volume level of the Audio Paging
Speaker Array.

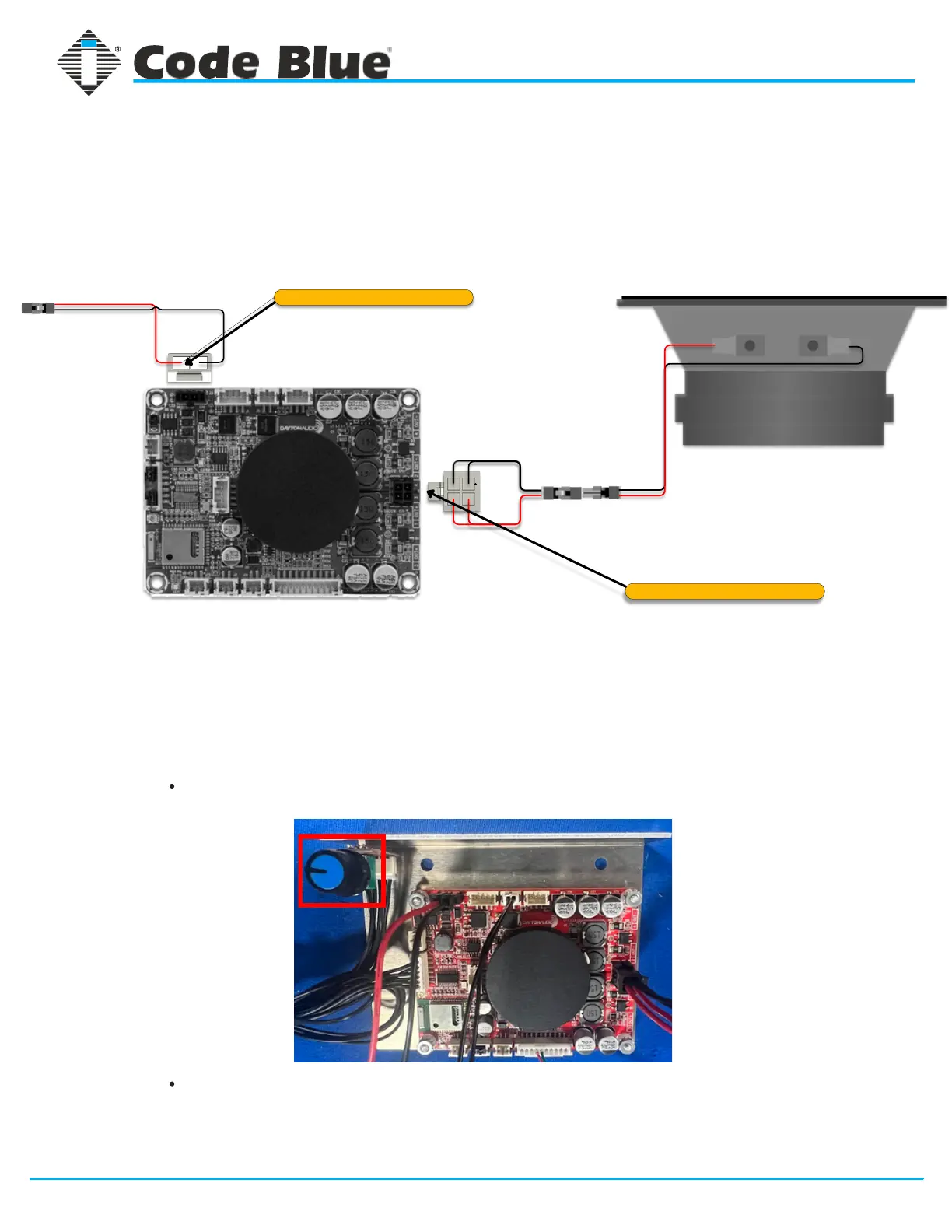

CB 2-ap Audio Paging Amplifier Wiring & Volume Control
This harness comes with the Amp PCB
SPKR +
SPKR -
2 1
1 2
12-24V DC
2 1
+
This harness comes with the Amp PCB
Speaker Located Inside CB 2-ap Unit
