Coffee Queen A-2 - V-2 Exploded View and Parts List

FILTERBREW & SERVING CONCEPT
66

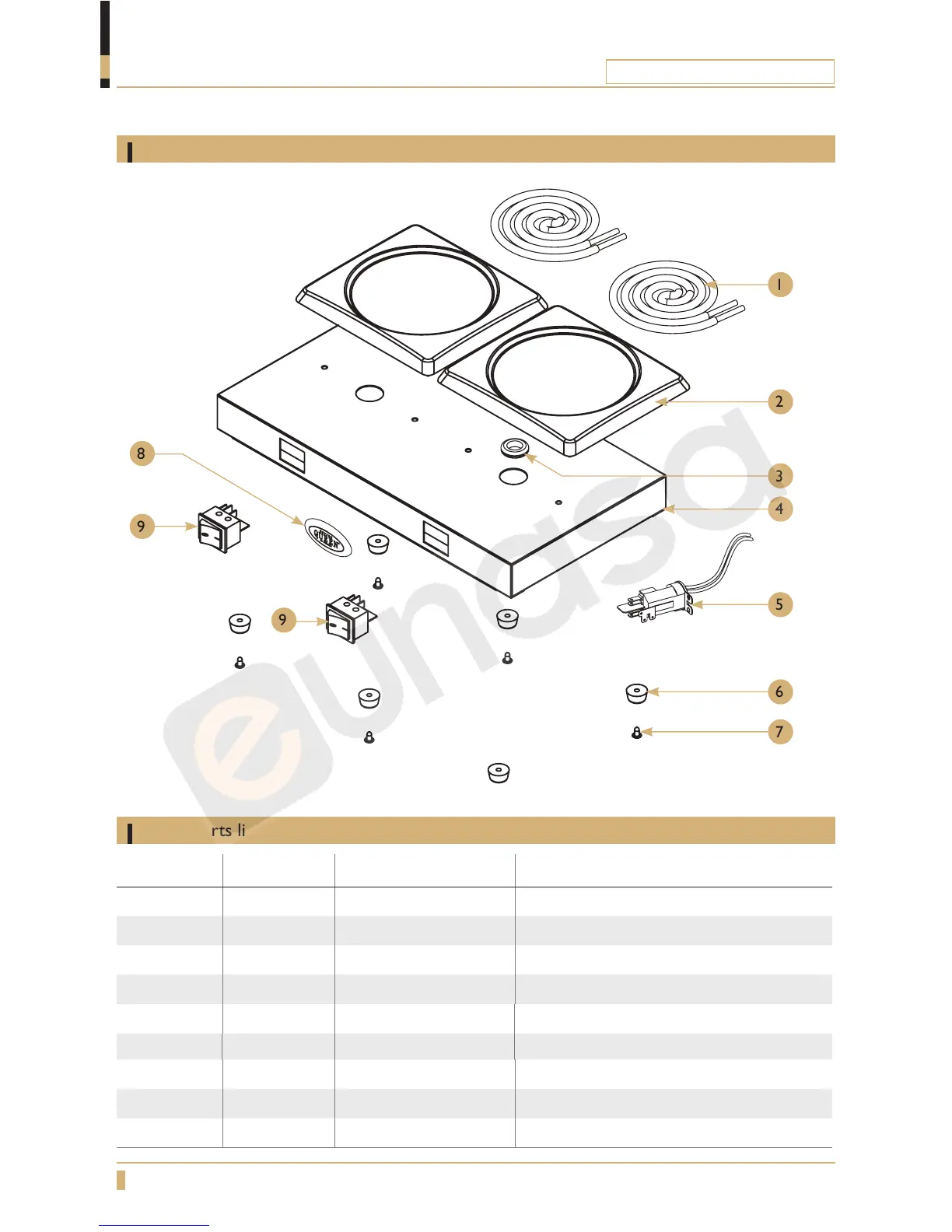

EXPLODED VIEW
Drawing
Spare parts list
6
7
4
3
5
9
8
2
1
POS. PCS Part No. Description
1 2 160101 Heat coil 95W
2 2 120811 Warming plate 230V/95W
3 2 160536 Gasket rubber NBR(Rubber TRP 30.0)
4 1 2401101 Chassi V-2
5 1 1605652 Power cable fixed 16A 250V
6 6 120320 Rubber Feet
7 6 1402163 Screw M4x8mm
8 1 160970 CQ sticker
9 2 1608017 Power Switch Black
V-2
