Cognex DataMAN 262 X - Dimensional Drawings

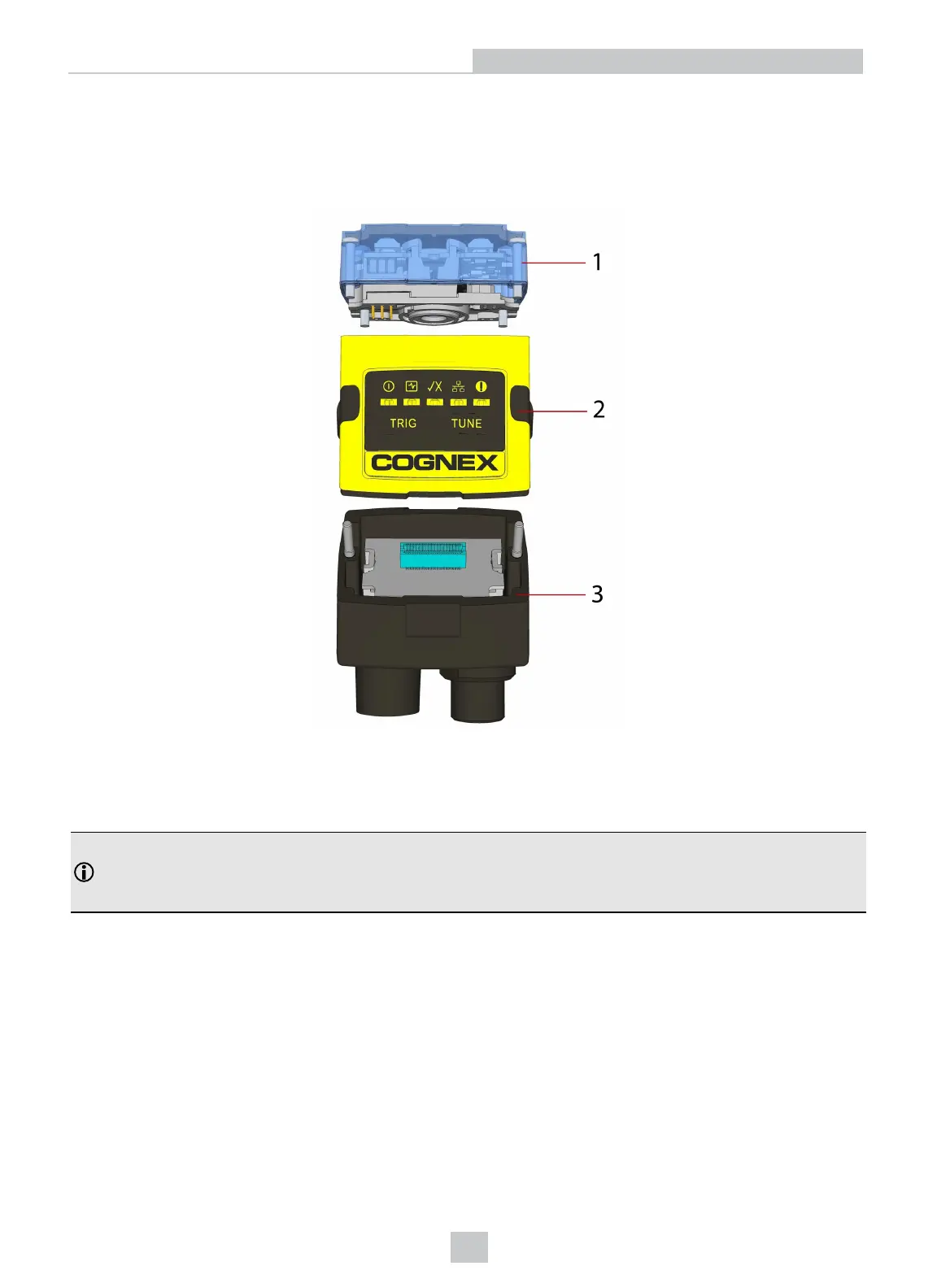

1. Optics module (lens including lens mount, illumination and front cover including filter mounting option for a
Diameter (Ø): 12.3mm<Ø<12.7mm, Thickness (t): 1.6mm<t<2mm filter)
2. Main module, including sensor and CPU
3. I/O module
Dimensional Drawings
The size of the DataMan 260 in the straight configuration is shown in the following figure:
Note:
l Dimensions are in millimeters [inches] and are for reference purposes only.
l All specifications are for reference purposes only and can change without notice.
