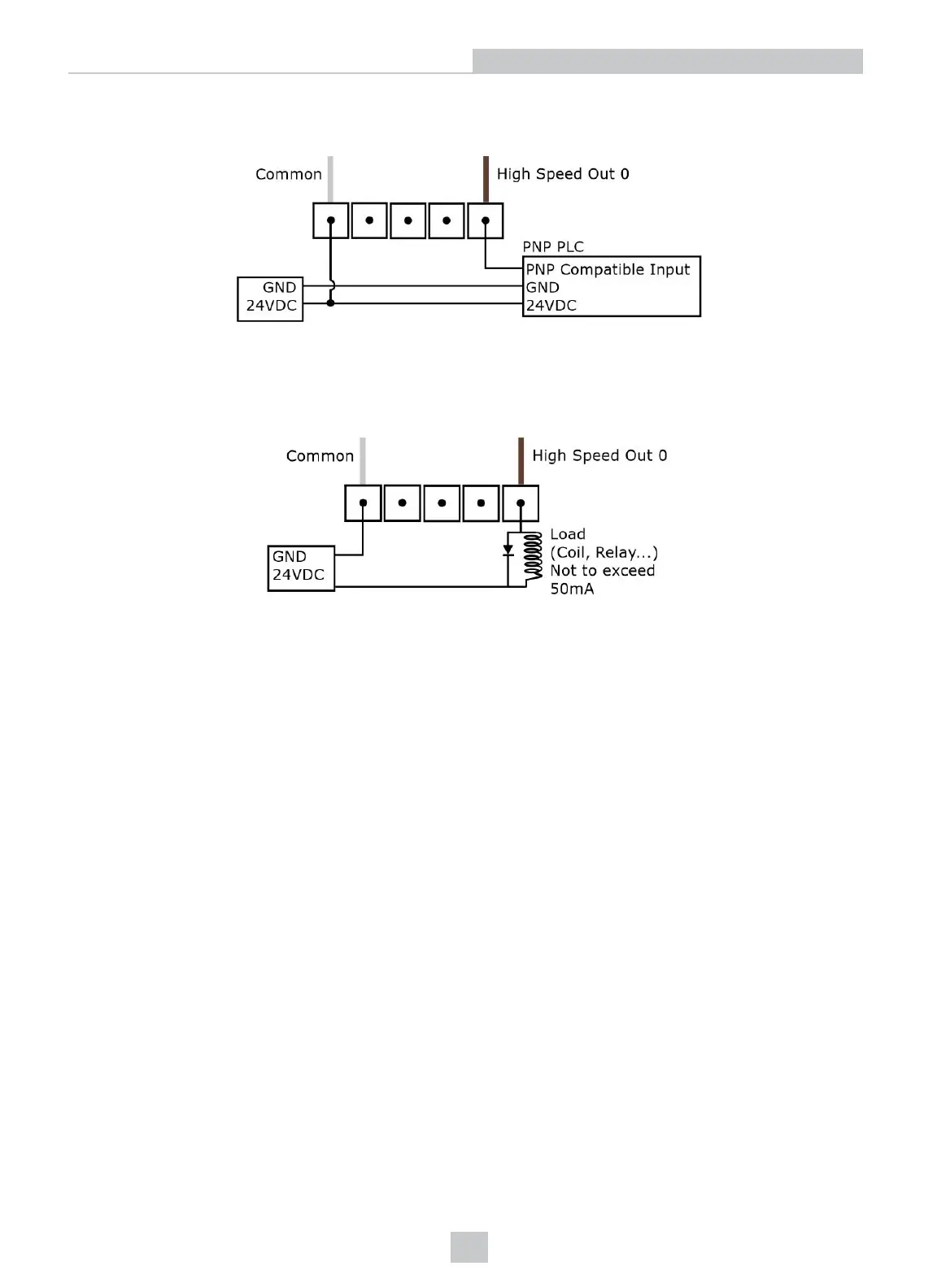

To connect to a PNP-compatible PLC input, connect Output 0, Output 1, Output 2 or Output 3 directly to the PLC input.
When enabled, the output pulls the PLC input up to greater than 21VDC.
To connect the high-speed outputs to a relay, LED or similar load, connect the negative side of the load to the output and
the positive side to +24VDC. When the output switches on, the negative side of the load is pulled down to less than
3VDC, and 24VDC appears across the load. Use a protection diode for a large inductive load, with the anode connected
to the output and the cathode connected to +24VDC.
5m RS-232 Connection Cable (CCB-M12XDB9Y-05)
You can clip unused wires short or use a tie made of non-conductive material to tie them back.
The figure on the left shows the plug on the device.
