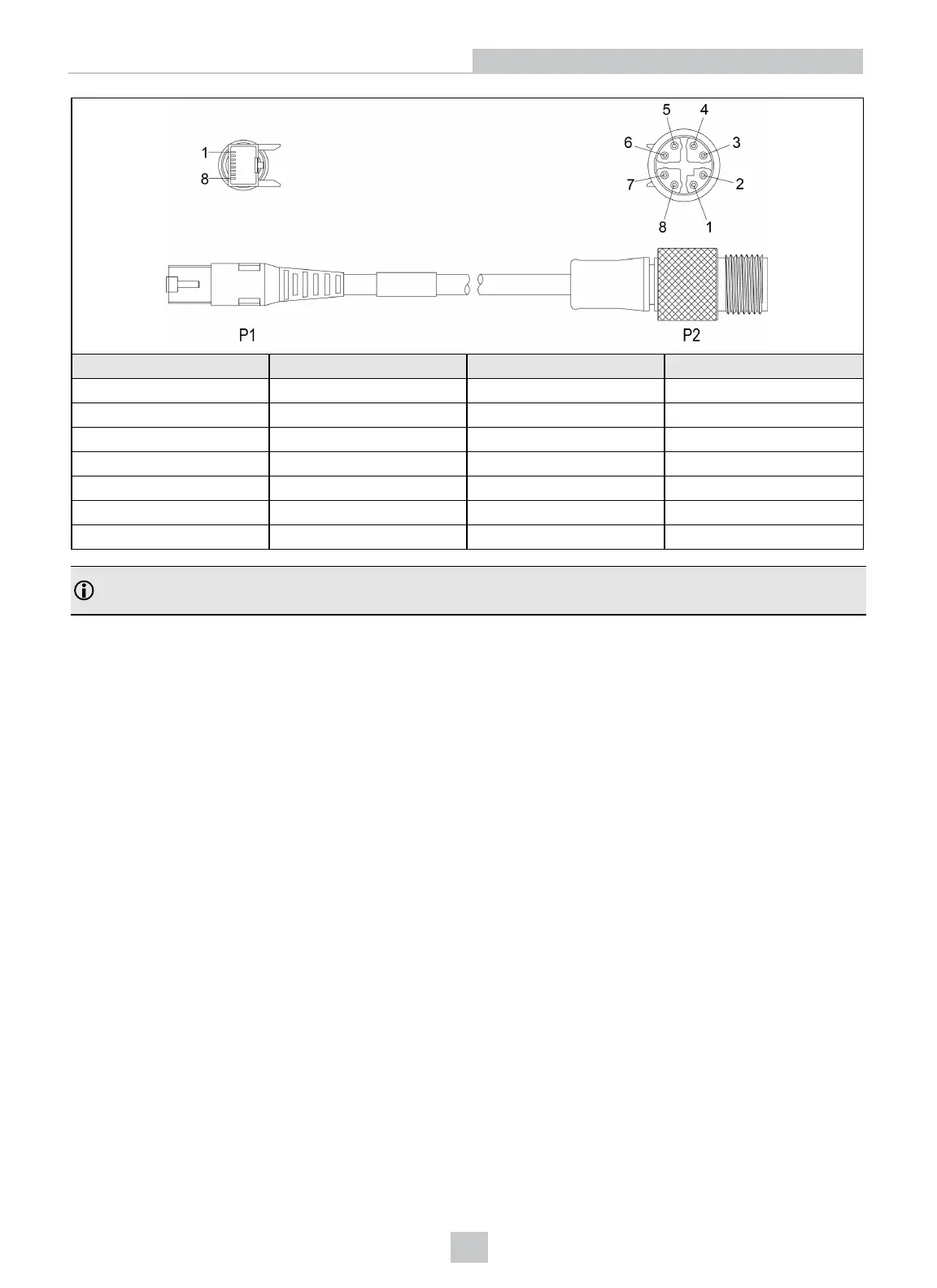

P1 Pin Number Wire Color Signal Name P2 Pin Number
2 Orange TxRx A - 2
3 White/Green TxRx B + 3
4 Blue TxRx C + 8
5 White/Blue TxRx C - 7
6 Green TxRx B - 4
7 White/Brown TxRx D + 5
8 Brown TxRx D - 6
Note: Cables are sold separately. The wiring for this cable follows standard industrial Ethernet M12 specifications. It
differs from the 568B standard.
Multi-Port Connections
You can connect multiple DataMan 260 readers to a single PC (or other device equipped with a serial port) using a
multi-port connection.
A multi-port connection creates a daisy-chain of readers. Each reader receives serial data from the previous reader and
transmits it to the next reader. When a reader transmits data, it is passed through each of the readers in the chain
between it and the PC.
38
Setting Up Your DataMan 260
