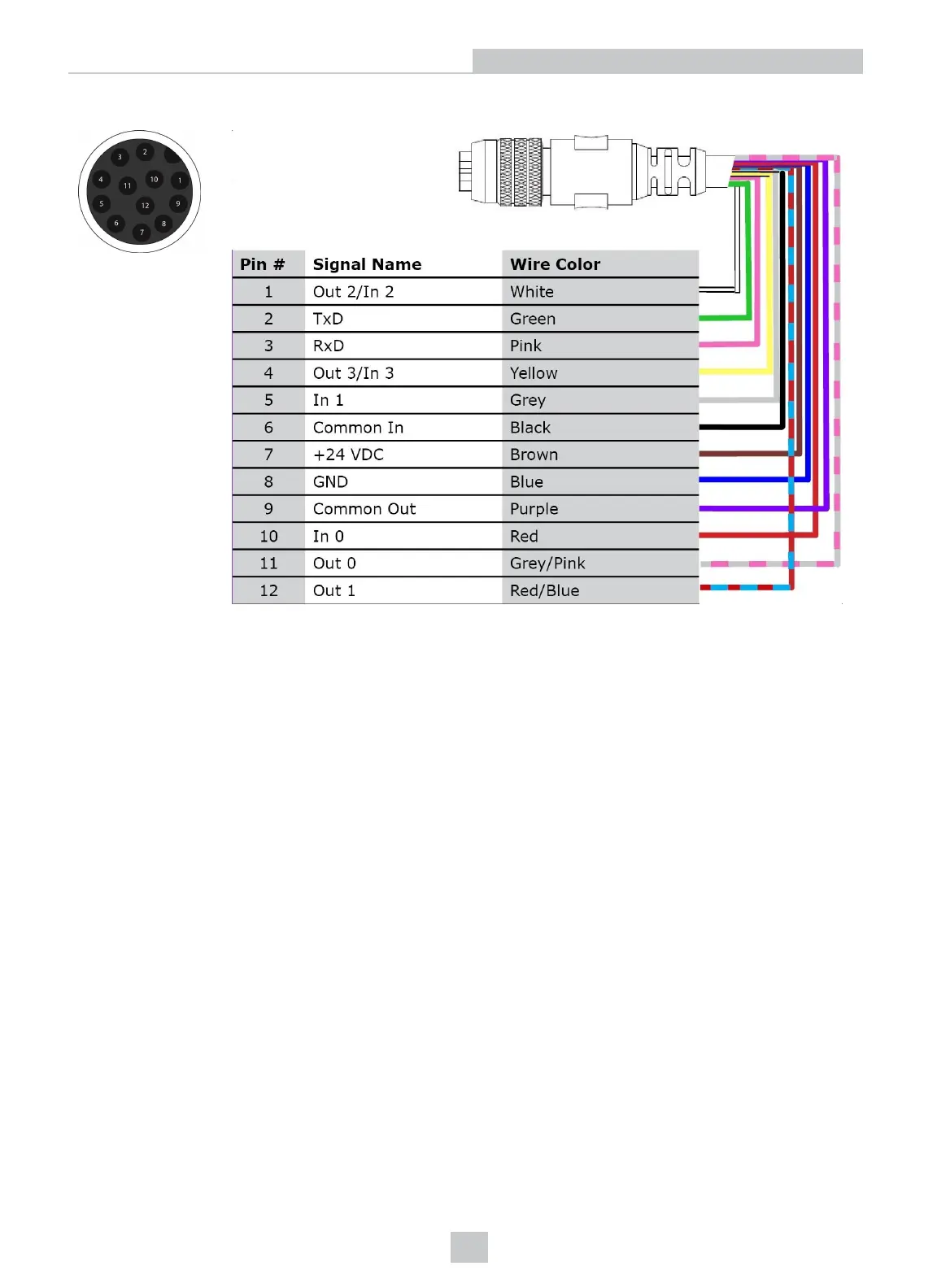

The drawing on the left shows the plug on the device.
15m I/O Breakout Cable (CCB-PWRIO-15)
The I/O cable provides access to trigger and high-speed outputs. The cable is not terminated. You can clip unused wires
short or use a tie made of non-conductive material to tie them back. For RS-232, use the Power Supply return path for
ground.
The drawing on the left shows the plug on the device.
33
Setting Up Your DataMan 260
