Cognex DataMAN 262 X - I;O Breakout Cable (CCB-M12 X12 Fy-XX)

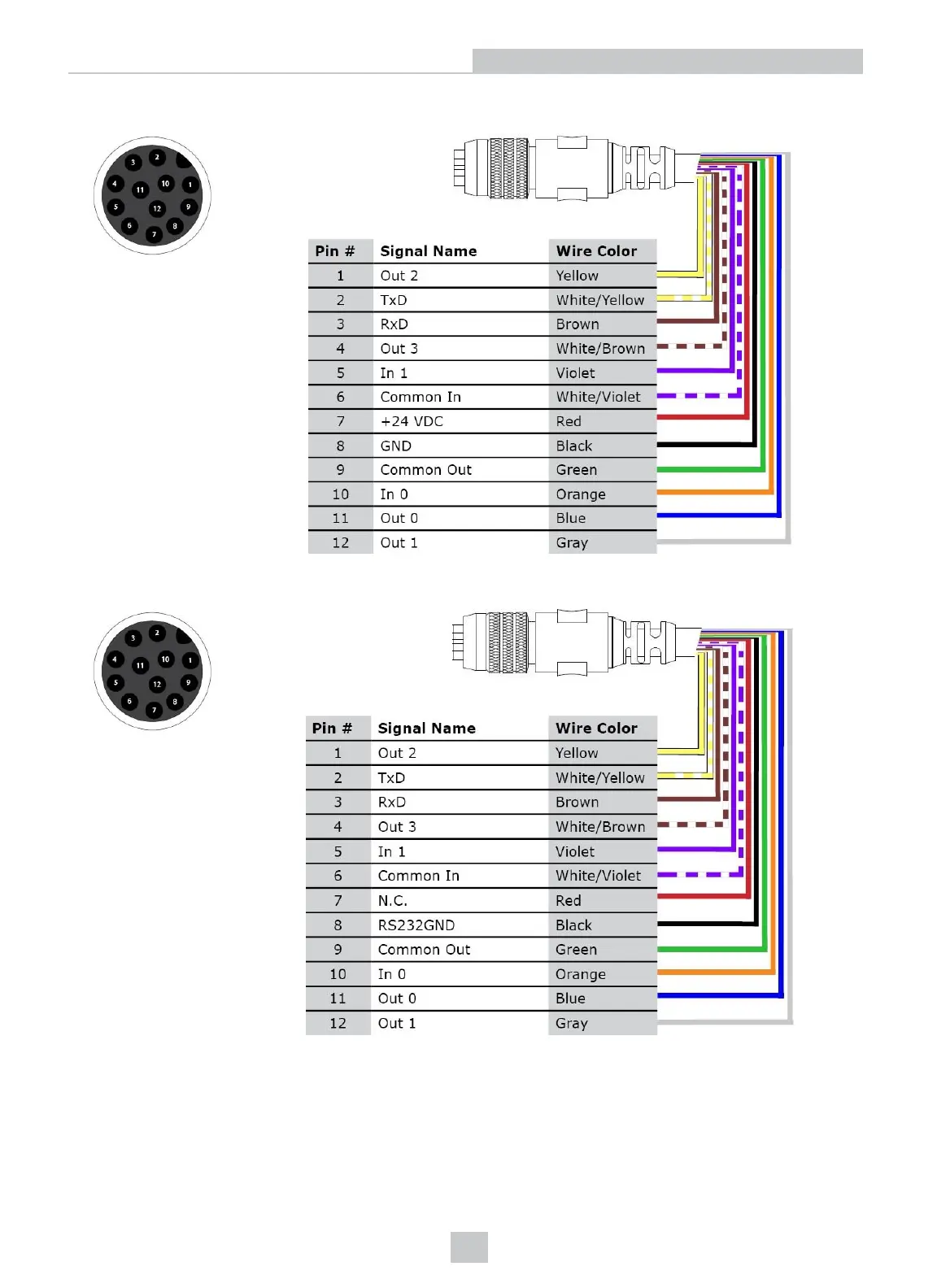

Signal: 24 VDC Ethernet Model
Signal: PoE Ethernet Model
5m I/O Breakout Cable (CCB-M12x12Fy-xx)
The I/O cable provides access to trigger and high-speed outputs. You can clip unused wires short or use a tie made of
non-conductive material to tie them back.
For RS-232, use the Power Supply return path for ground.
32
Setting Up Your DataMan 260
