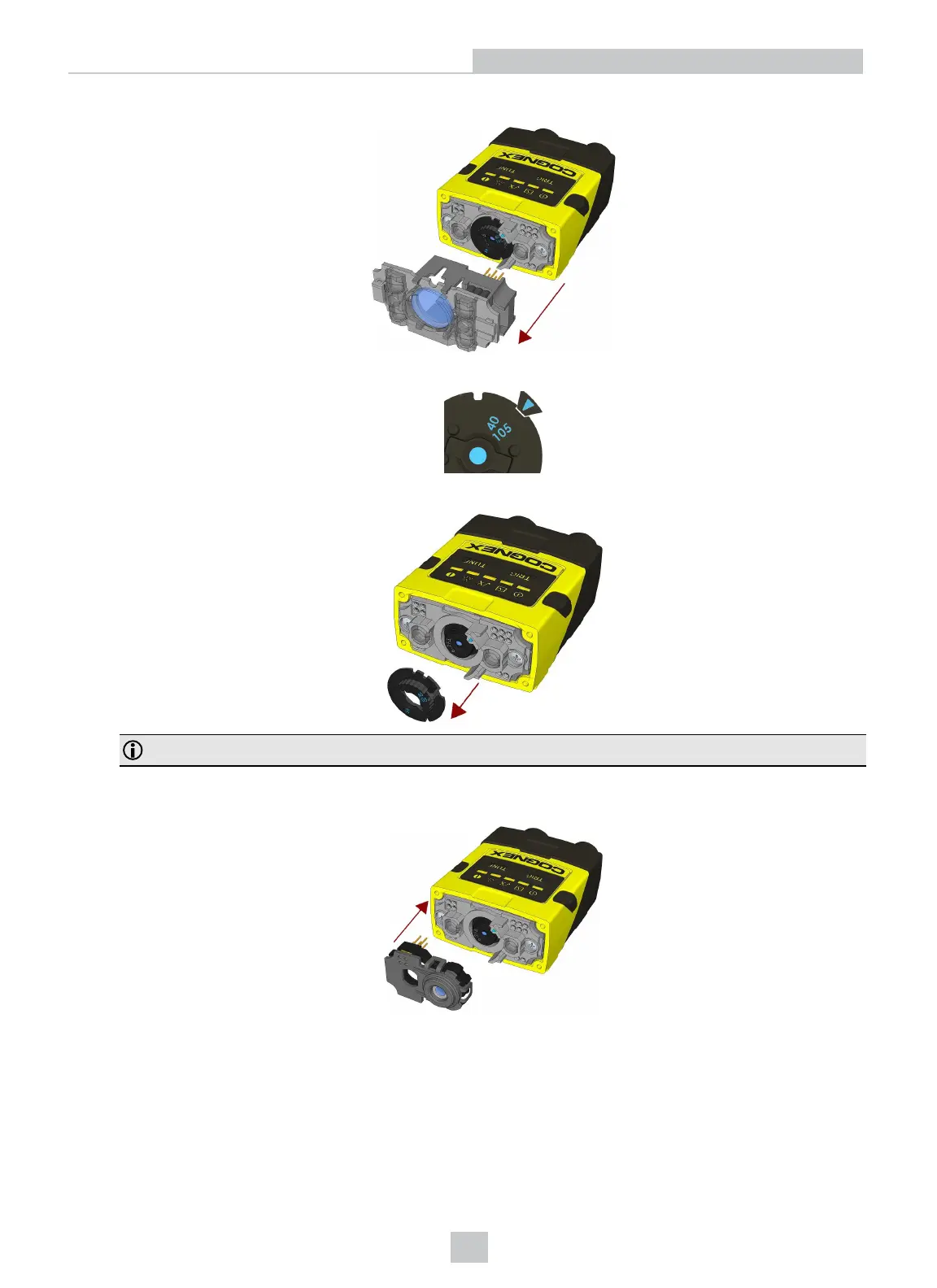

2. Remove the illumination module.
3. Turn the lens cap to the 105 mm position.
4. Remove the lens cap from the imager lens by pulling it.
Note: Do not rotate the imager lens while the lens cap is removed. Otherwise, focus calibration will be lost.
5. Attach the liquid lens accessory by aligning the 2x2 connectors of the liquid lens with the 2x2 sockets on the
optics mount.
22
Setting Up Your DataMan 260
