75
Chapter 11: Cleaning and Preventive Maintenance

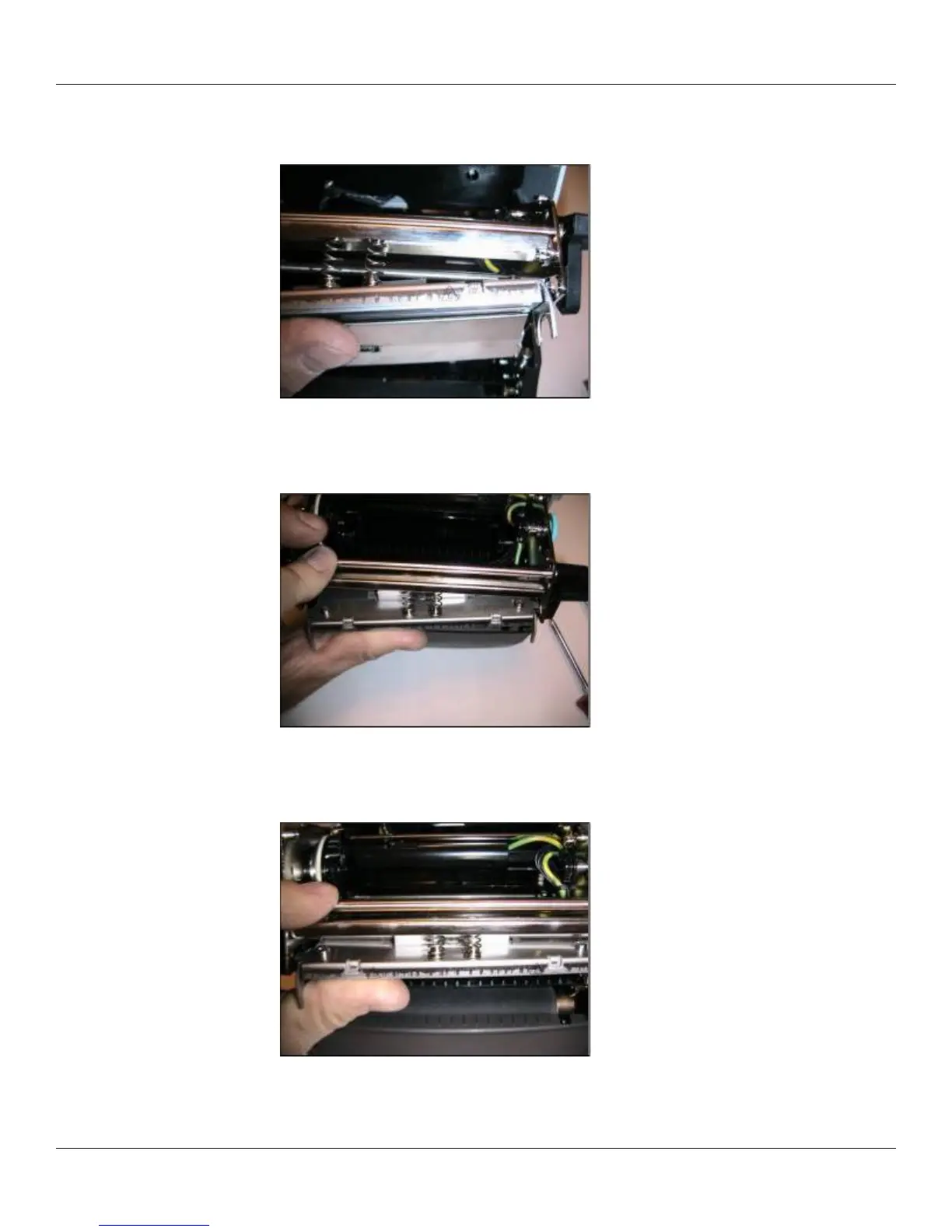

5) Position springs over spring guides on bracket, then slide the right printhead bracket
support tab over the mechanism right side printhead support platform feature.
6) Keeping the right side tab on the platform, rotate the left side of the printhead
forward so that it clears the left side printhead platform support.
7) Push the printhead up and back to position the left side printhead bracket support
tab on the left side platform.
