74
Chapter 11: Cleaning and Preventive Maintenance

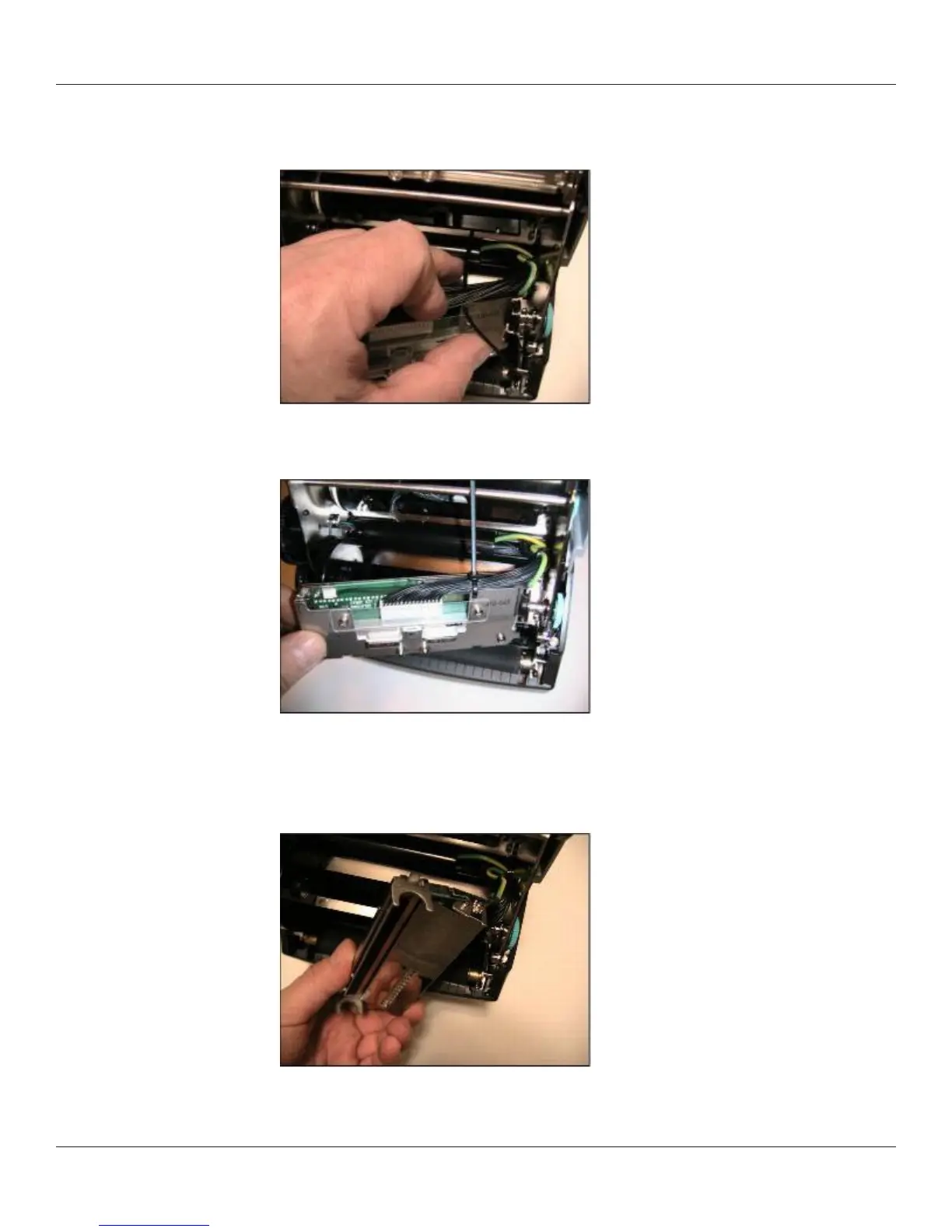

2) Position a cable tie through the hole in the printhead bracket and around all wires.
3) Position and tighten the tie as shown. Clip o the excess tie.
4) Secure the ground wire to the bracket, ensuring that the lock washer is between the
wire lug and the bracket shield. Tighten the screw to 3 in-lbs.
