Colby Instruments XT-100 - Chapter 3.0; Using the Front Panel Connections; Overview of the Front Panel Connections; Trombone Only Model XT-100-625 P

Chapter 30
Using the Front Panel Connections
31 Overview of the Front Panel Connections
The Trombone IN connector begins the signal path and continues through the internal top half of the electromechanical trombone and
out across the vertical jumper and back through the bottom half of the trombone and exiting at the OUT connector.

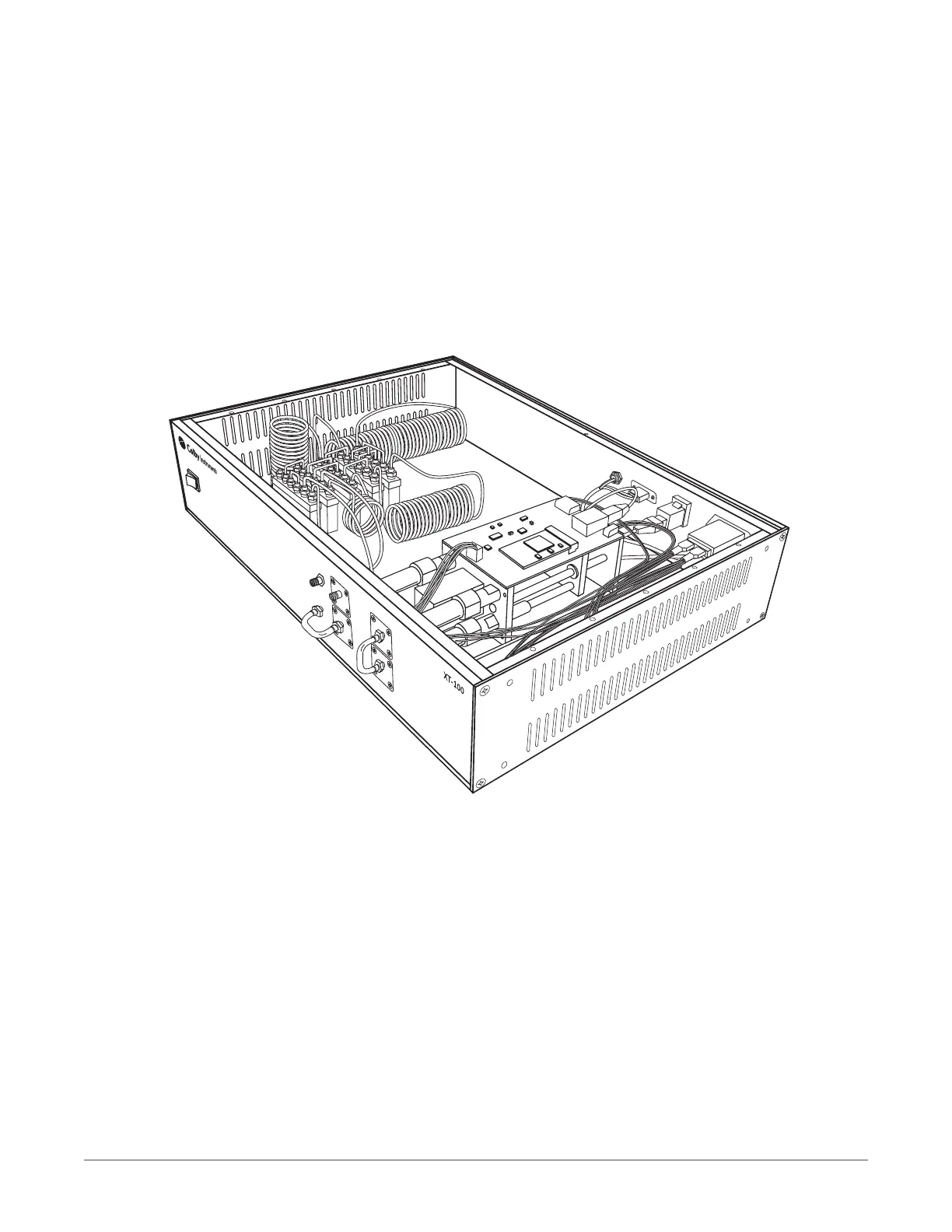

Model XT-100 single trombone
32 Trombone Only Model XT-100-625P
The total delay range is from 0 to 625.0 ps offered through both halves of the trombone. The hybrid stepper motor offers 0.50 ps
step resolution.
33 Models XT-100-001N thru XT-100-100N
Total delay is offered through the electromechanical trombone and delays sections.
