3. INSTALLATION
3.1 ROOM NECESSARY TO THE MACHINE USE
The machine must be installed in such a way that air can freely circulate all around.
Rooms for the approach to the machine must be left free in order to enable the operator to
act without constraint and also to immediately leave working area, if need be.
The minimum approach room to working area should be at least 150 cm (60 in) in consideration
of space taken by opened doors.
3.2 WATER SUPPLY CONNECTION
The machine must be connected to running water which pressure must not be higher than 8
bars. By watercooled machines water connections (for machine wash and gas cooling) are
placed under the machine.

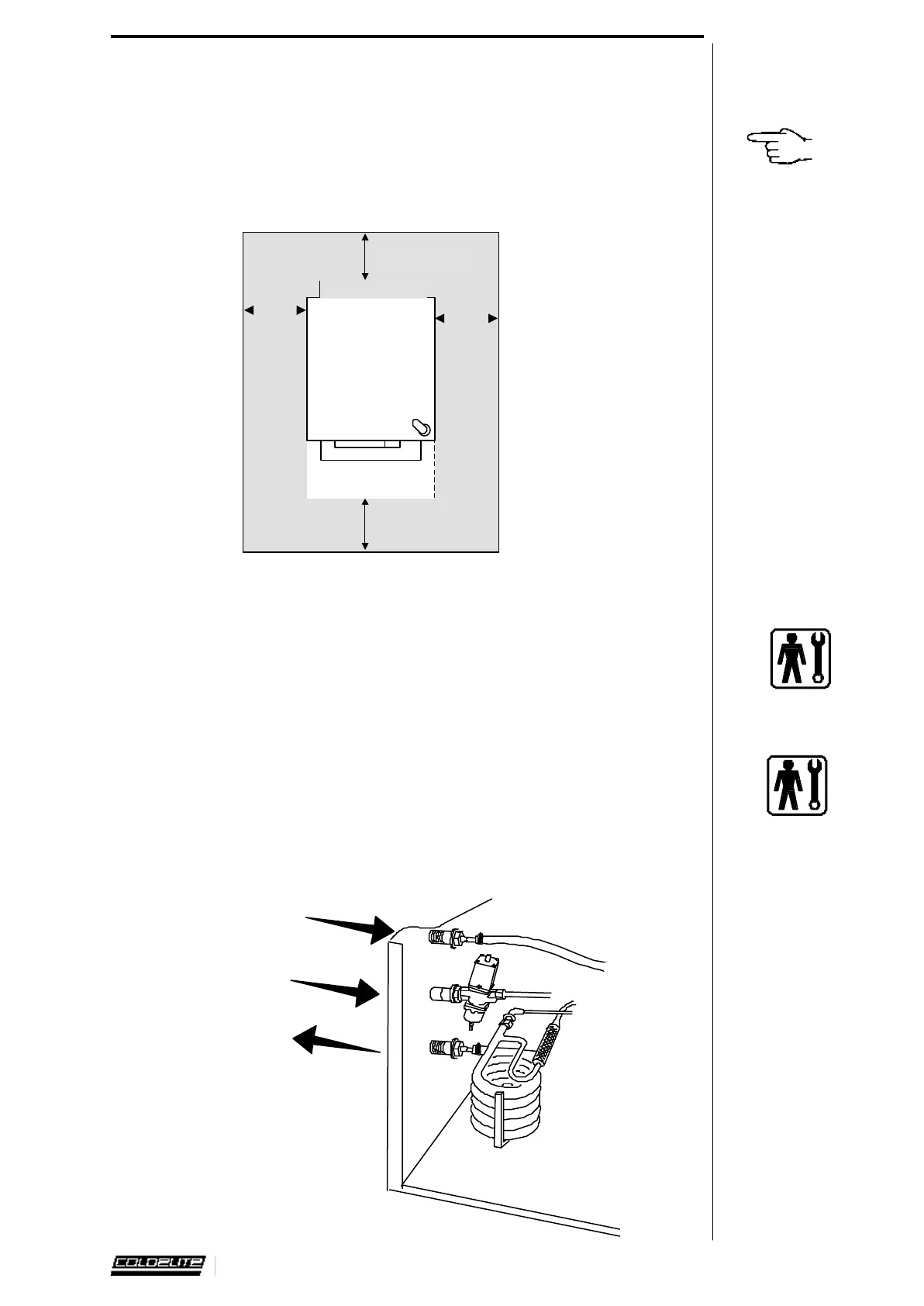

50 cm solo ad aria
150 cm
10 cm (4
(60 in)
15 cm (6 in)
15 cm (6 in)
3.3 MACHINES WITH WATERCOOLED CONDENSER
Watercooled machines can run when only connecting it to running water supply, as the same
water inlet is also used for washing water.
Water must have a pressure of 1 Bar at least and a delivery at least equal to the estimated
hourly consumtpion.
Connect inlet pipe marked by the plate "Entrata Acqua" (=Water inlet) to water supply, installing
a shut-off valve, and the outlet pipe marked by the plate "Uscita Acqua" (=Water outlet) to a
drain pipe, isntalling a shut-off valve.
Drinking water
inlet
Water inlet
Water outlet
