compacta_g - 02_05
501
CAUTION!
Clean with sanitizers at the end of every working day.

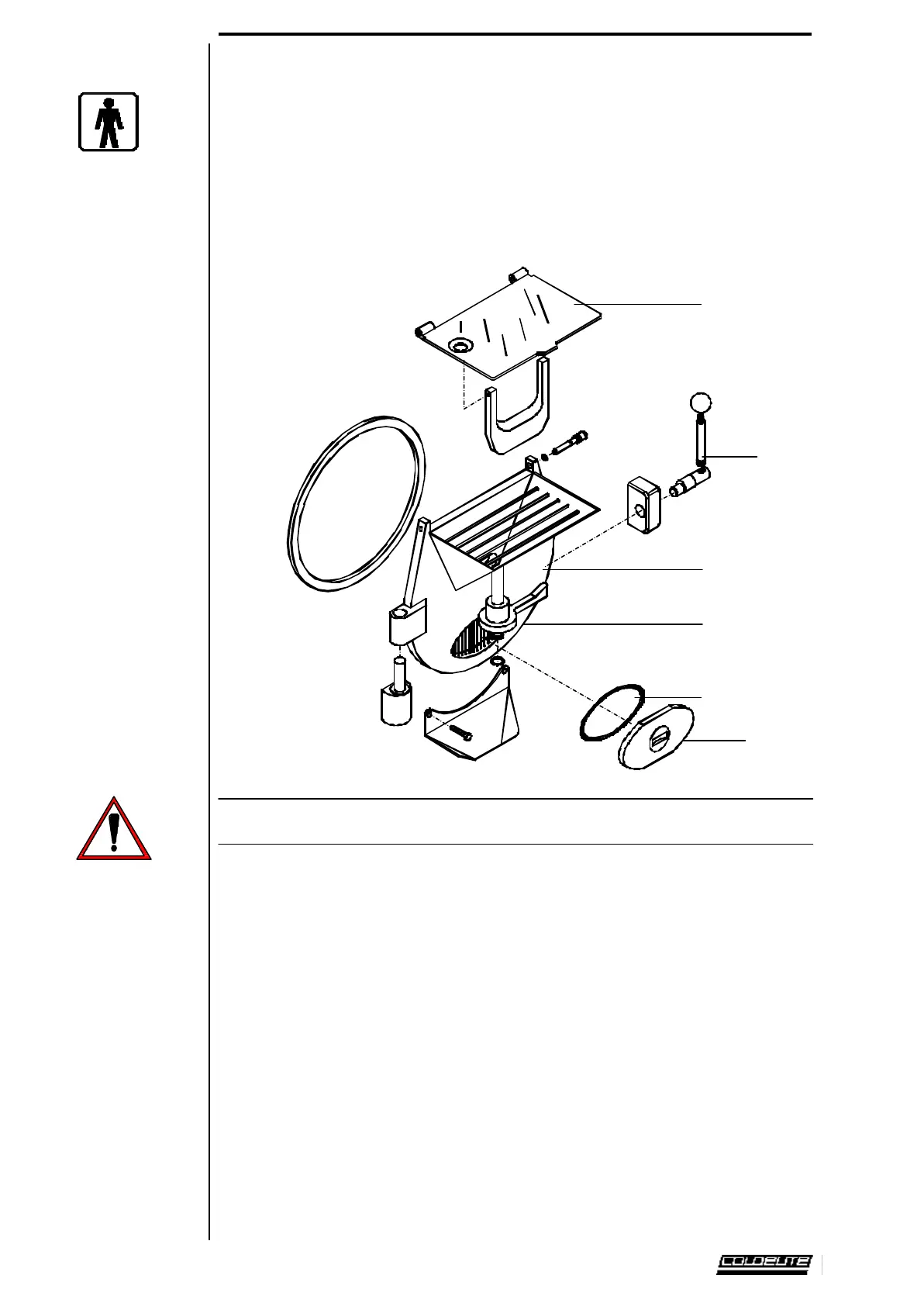

6.3 LOWER FRONT LID DISASSEMBLY (PRODUCTION
SIDE)
To disassemble front lid 301 release it by lowering lever 289 and shifting it to the right.
l Open the front lid by shifting it to the left and lift it while extracting from spigot pin.
l Disassemble ice cream door 501 and ice cream door lever 502 by withdrawing downwards,
after removing gasket 304.
l Disassemble lid mouthpiece cover 290.
289
301
502
290
304
