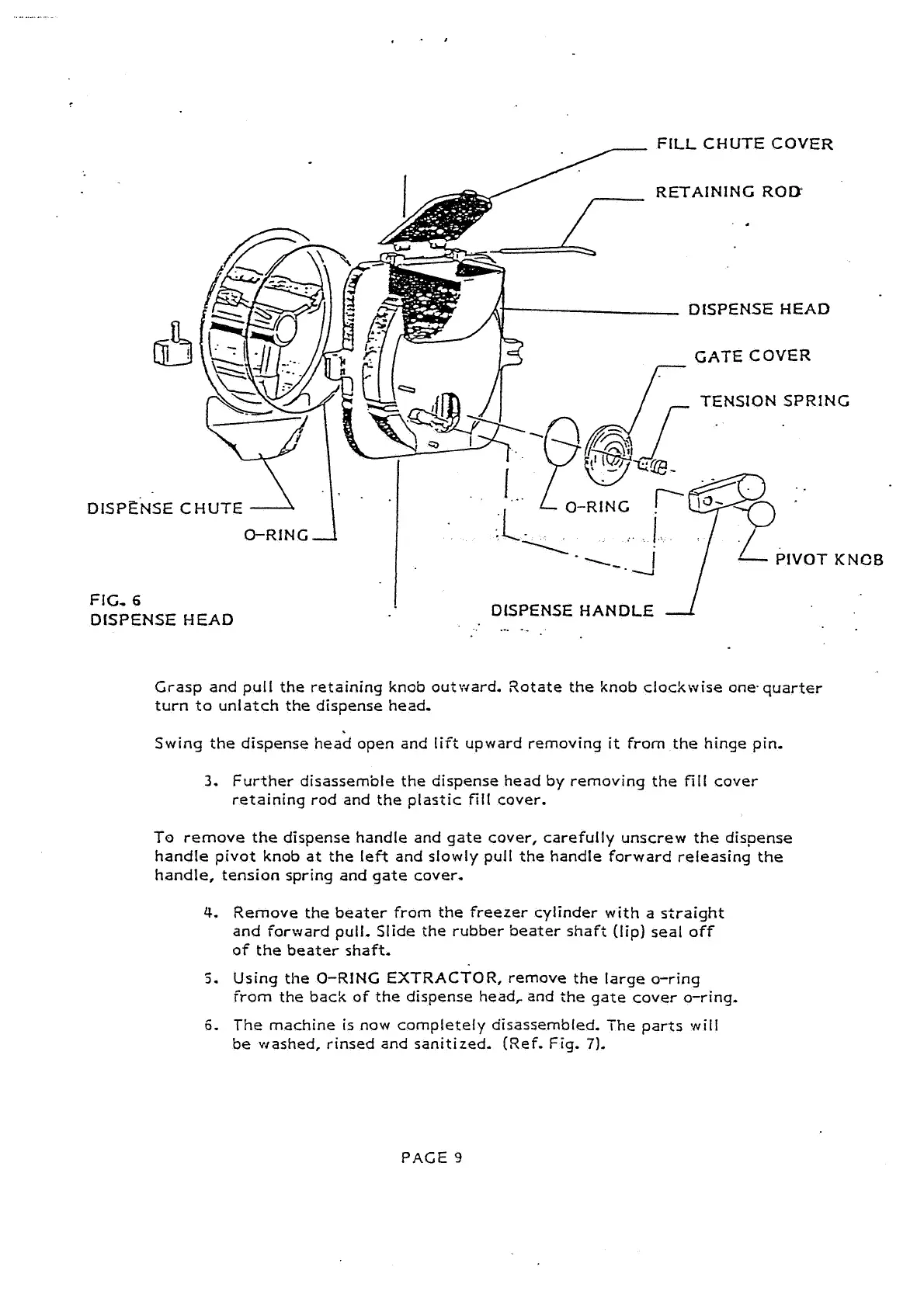

Grasp and pull the retaining knob outward. Rotate the knob clockwise one. quarter
turn to unlatch the dispense hezd.
Swing the dispense ?lead open and lift upward removing
it
from the hinge pin.
3.
Further disassemble the dispense head by removing the fill cover
retaining rod and the plastic fill cover.
To
remove the dispense handle and gate cover, carefully unscrew the dispense
handle pivot knob at the left and slowly pull the handle forward releasing the
handle, tension spring and gate cover.
4.
Remove the beater from the freezer cylinder with a straight
and forward pull. Slide ihe rubber beater shaft (lip) seal off
of the beater shaft.
5.
Using the
O-RING EXTRACTOR,
remove the large o-ring
from the back of the dispense head, and the gate cover o-ring,
6.
The machine
is
now completely disassembled. The parts
will
be washed, rinsed and sanitized- (Ref.
Fig.
71,
PACE
9
