El COMPLETING THE INSTALLATION
Sanitary regulations may require that the counter model machine be sealed
to the counter top. To seal, proceed as follows:
1, Clean the counter top thorougidy to remove any dirt, dust, etc.
2, Clean the lower rim, or bottom flange of the machine base
(Ref. Fig.
31.
3. Apply a bead (approx. 114" wide) of General Electric RTV-
102 silicone sealnat (or equivalent) to the bottom surface of the
base.
4, Place the machine on the counter in the location chosen,
5. Remove any excess sealant by slowly running a flat edged
tool (spackling tool) .around the flange of the base frame.
This
will create asearnless joint between the frame and the
counter top (Ref. Fig.
3).
6. Allow sealant to dry thoroughly (refer to sealant manufacturer's
directions) before operating the machine.

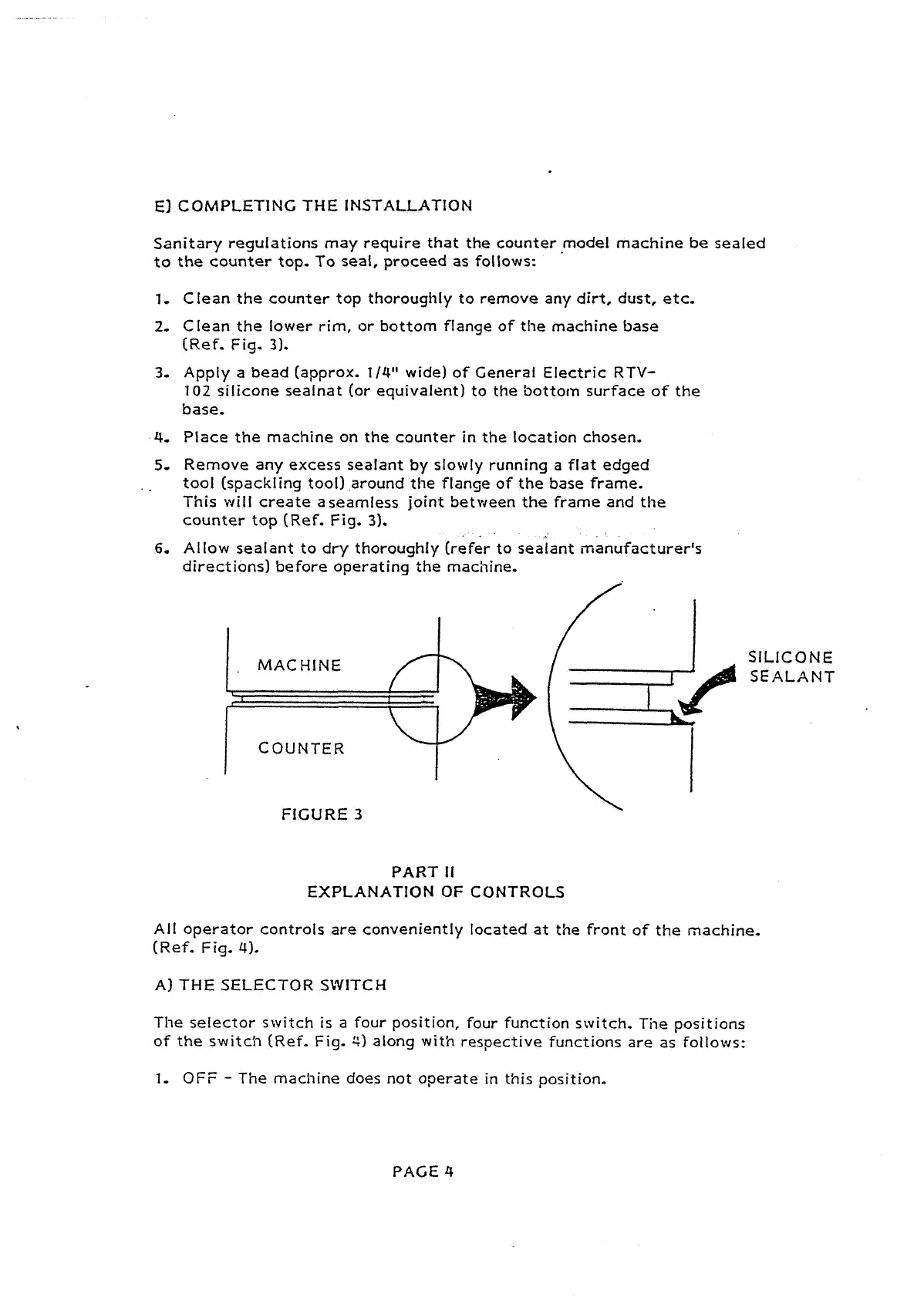

FIGURE
3
SILICONE
SEALANT
PART II
EXPLANATION OF CONTROLS
All operator controls are conveniently located at the front of the machine.
(Ref. Fig.
4).
A) THE SELECTOR SWITCH
The selector switch is a four position, four function switch. The positions
of the switch (Ref. Fig.
$1 along with respective functions are as follows:
1, OFF - The machine does not operate in this position.
PACE
4
