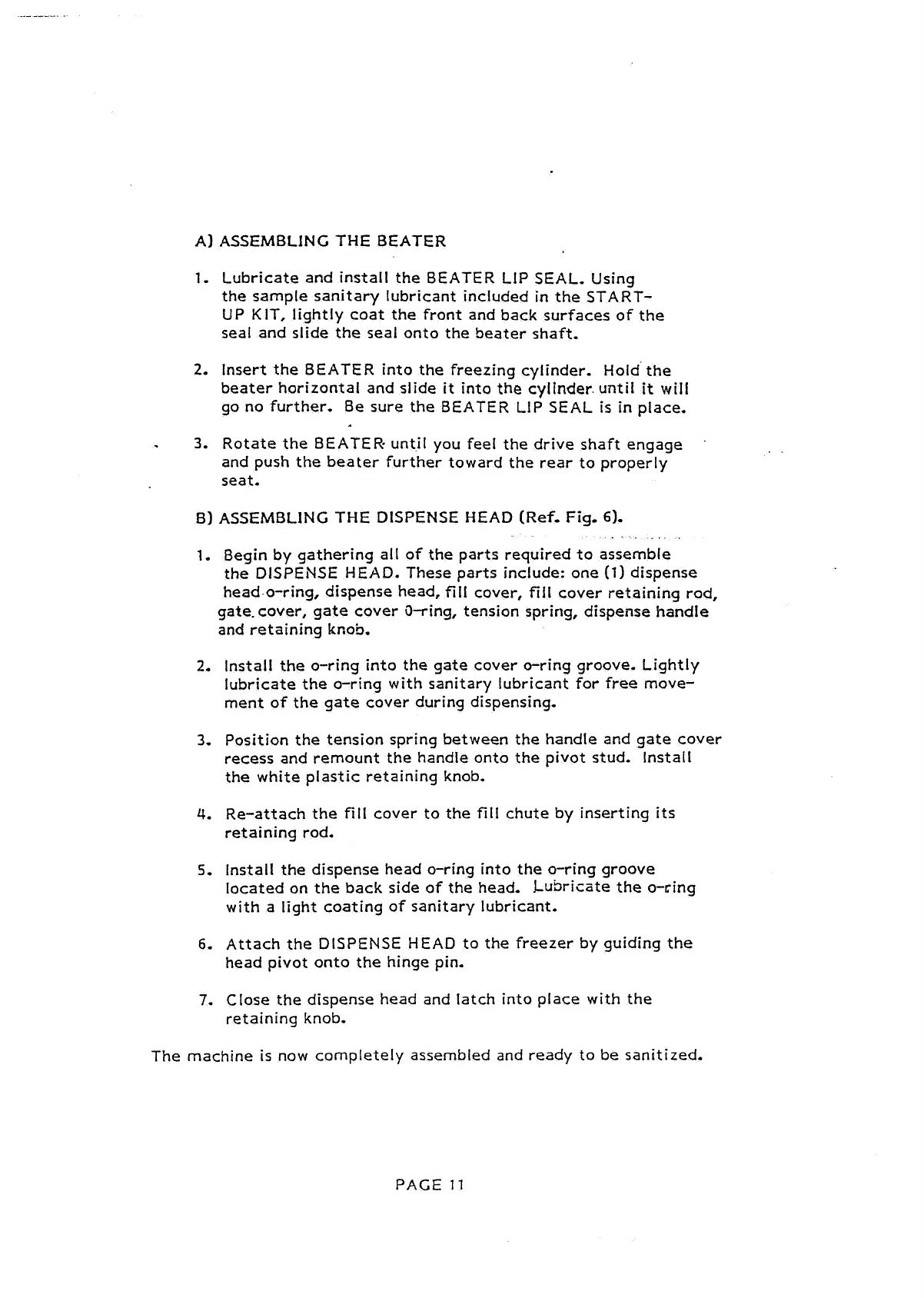

A) ASSEMBLING
THE
BEATER
1.
Lubricate and install the BEATER LIP SEAL. Using
the sample sanitary lubricant included in the START-
UP KIT, lightly coat the front and back surfaces of the
seal and slide the seal onto the beater shaft.
2,
Insert the BEATER into the freezing cylinder. Hold the
beater horizontal and slide it into the cylinder until
it
will
go no further.
Be
sure the BEATER LIP SEAL is in place,
.
3.
Rotate the BEATER until you feel the drive shaft engage
and push the beater further toward the rear to properly
seat.
B)
ASSEMBLING THE DISPENSE HEAD
(Ref,
Fig.
61.
1.
Begin by gathering all of the parts required to assemble
the DISPENSE HEAD. These parts include: one
(1)
dispense
head o-ring, dispense head, fill cover, fill cover retaining rod,
gate. cover, gate cover O-ring, tension spring, dispense handle
and retaining knob.
2.
Install the o-ring into the gate cover o-ring groove. Lightly
lubricate the o-ring with sanitary lubricant for free move-
ment of the gate cover during dispensing.
3,
Position the tension spring between the handle and gate cover
recess and remount the handle onto the pivot stud. Install
the white plastic retaining knob.
4.
Re-attach the fill cover to the fill chute by inserting its
retaining rod.
5,
Install the dispense head o-ring into the o-ring groove
located on the back side of the head, Lubricate the o-ring
with a light coating of sanitary lubricant.
6,
Attach the DISPENSE HEAD to the freezer by guiding the
head pivot onto the hinge pin.
7.
Close the dispense head and latch into place with the
retaining knob.
The machine is now completely assembled and ready to be sanitized.
PACE
11
