Coleman BT200X User Manual

THROTTLE ADJUSTMENT
Throttle Cable adjustment

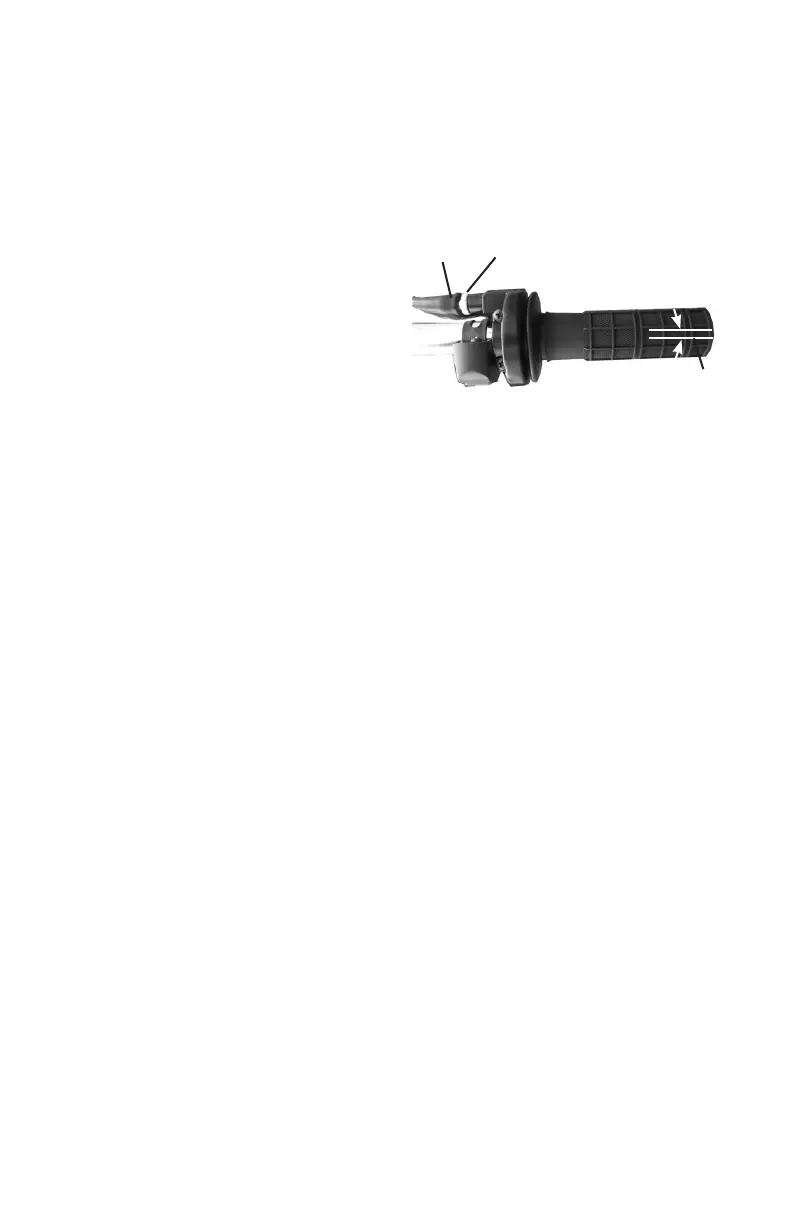

The hand grip throttle free play (2) should
be .078 - .24 in (2-6 mm)
To adjust freeplay
1. Loosen jam nut (3)
2. Turn adjusting nut (4) to proper setting
3. Once throttle grip is at the proper
freeplay, re-tighten the jam nut (3).
2
3
4
.078 - .24 in
(2-6 mm)
It is important that the throttle grip have a
certain amount of free play .
12

Coleman BT200X Specifications

General

Frame	Steel
Fuel System	Carburetor
Final Drive	Chain
Fuel Capacity	0.95 Gallons
Front Suspension	Telescopic fork
Front Brake	Disc
Front Tire	70/100-19
Rear Tire	90/100-16
Engine Type	Single Cylinder, 4-Stroke, Air Cooled
Weight	121 kg (267 lbs)
Weight Capacity	150 kg (330 lbs)
Wheelbase	1, 270 mm (50 inches)
