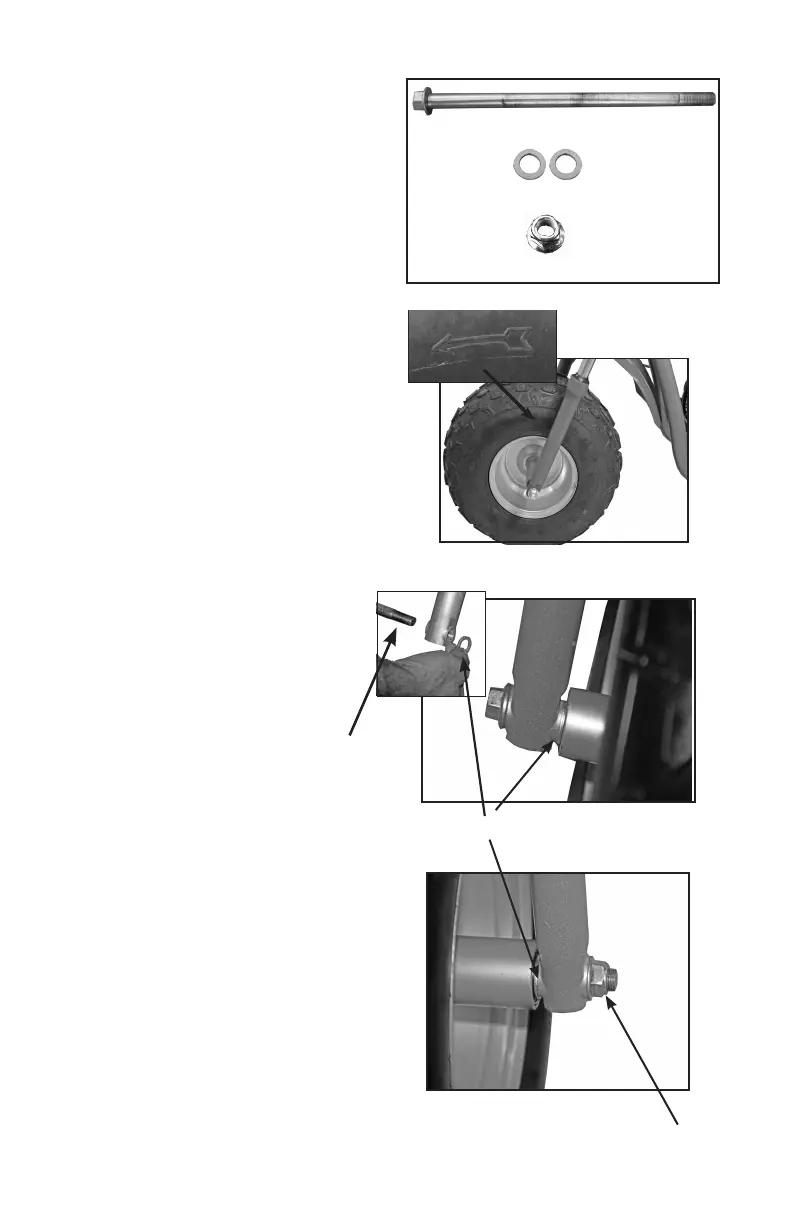

1. Orient the front tire so the arrow
on the tire faces forward.
Arrow faces forward
Large 8mm Washers
M14 Axle Bolt
M14 Lock Nut
M14 Washer
M14 Axle bolt 1ea.
M14 washers 2ea.
M14 lock nut 1ea.
3. Install M14 lock nut
and tighten.
2. Insert Axle bolt with the M14
washers between the forks and wheel
on each side.
FRONT WHEEL INSTALLATION
6
